64L 2 Zone Precise Drying Test Environmental Chamber Basket Size W 400 × H 400 × D 400 Mm

Certification
Good quality Temperature Humidity Chamber for sales
Good quality Temperature Humidity Chamber for sales
Fast delivery and quality products.

—— Gozia

Friendly and pleasant cooperator, "I like the factory, I like the design, I like the workstyle"

—— Wagner

The design and quality impress me a lot.

—— Mr Yee

" A trustworthy supplier of climatic test chamber".

—— Denis

I'm Online Chat Now

64L 2 Zone Precise Drying Test Environmental Chamber Basket Size W 400 × H 400 × D 400 Mm

China 64L 2 Zone Precise Drying Test Environmental Chamber Basket Size W 400 × H 400 × D 400 Mm supplier
64L 2 Zone Precise Drying Test Environmental Chamber Basket Size W 400 × H 400 × D 400 Mm supplier 64L 2 Zone Precise Drying Test Environmental Chamber Basket Size W 400 × H 400 × D 400 Mm supplier 64L 2 Zone Precise Drying Test Environmental Chamber Basket Size W 400 × H 400 × D 400 Mm supplier 64L 2 Zone Precise Drying Test Environmental Chamber Basket Size W 400 × H 400 × D 400 Mm supplier

Large Image :  64L 2 Zone Precise Drying Test Environmental Chamber Basket Size W 400 × H 400 × D 400 Mm

Product Details:

Place of Origin: China
Brand Name: KOMEG
Certification: CE approval
Model Number: TST-64A

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: rigid foam and wooden box
Delivery Time: 30 day after confirm the order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1, 000~1, 500 SETS / YEAR
Contact Now
Detailed Product Description
High Temperature Shock Chamber: +60℃ ~ +200℃ Low Temperature Chamber: -55℃ ~ -10℃
Pre-cool Time: +60℃~+200℃ Testing Chamber Low Temp Range: -70℃~-10℃
Test Chamber: -40 °C ~ +150 °C About 5min Load IC 2kg No Heat Test Weight(kg): 5kg



64L 2 Zone Precise Drying Test Environmental Chamber Basket Size W 400 × H 400 × D 400 Mm





Applications


Use low temperature and high temperature cold storage heat storage tank to open DAMPER according to



the action to achieve rapid impact effect; balance temperature control system (BTC), control SSPR in



P.I.D. mode, so that the heating amount of the system is equal to the heat loss, so it can be used stably



for a long time.





Specifications





. Detailed parameters:( Water-cooled, water temperature is +25 ° C, no load)
1. High temperature chamber +60℃ ~ +200℃
2. Low temperature chamber -55℃ ~ -10℃
3. pre-heating +60℃~+200℃ within 25 min
4. pre-cool time +20℃~-50℃within 60 min
5.Temperature stability ±0.5℃
6. Temp. Uniformity ±2.0℃
7. Shock recovery time -40 °C ~ +150 °C about 5min load IC 2kg no heat

8. High and low

temperature impact thermostat time

30min or more
9. Test tank transfer time Less than 10 seconds
. Structure Features
1. Basket Size W 400 × H 400 × D 400 mm

2. EX.

Dimension

About W 860 × H 2070 × D 2000 mm (not including the machine protruding part)
3. Inner wall material Stainless Steel Plate SUS304
4. Wall material Top-grade Carbon Steel Plate,Surface electrostatic color Spray processing
5.Body insulation material Rigid polyurethane Foam + glass fiber.
6. Heater Efficient electric radiator
7. Circulating Fan

a. TECO motor

b. stainless steel extended shaft

c. Multi-blade fan blade (SIROCCO FAN)

8. Test chamber door single door
9. Thread port 1*ψ50mm at the top of the machine
10. Sample Holders 2 sample holders with SUS #304
11. Test Drive way Rack gear racking
12. Packing strip Silicone foaming





Standards Met and Implemented:



GB/T2423.1.2



GB10592-89



GJB150

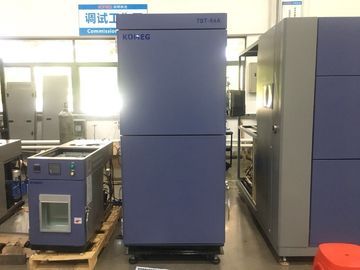

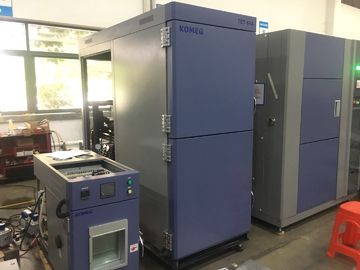

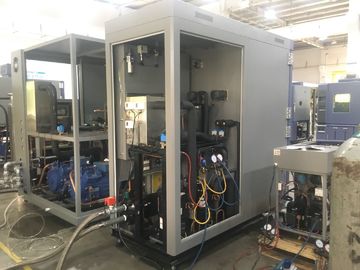

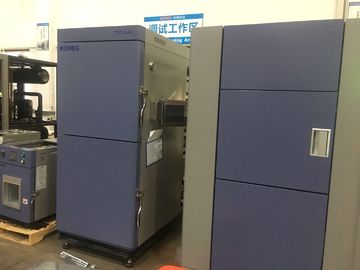

Prouduct Display





64L 2 Zone Precise Drying Test Environmental Chamber Basket Size W 400 × H 400 × D 400 Mm







Packing and Shipment:



(1).Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber

(2).Usually we delivery the equipment by air,by sea or by express. it depends on customer.

64L 2 Zone Precise Drying Test Environmental Chamber Basket Size W 400 × H 400 × D 400 Mm


After-sales service

We deal with your complains within 24 hours.

Training how to install the machine, training how to use the machine.

Engineers available to service machinery overseas.

All staffs in our company with philosophy of " integrity, dedication, truth-seeking, enterprise", would be

dedicated to provide high quality service and products for you.
