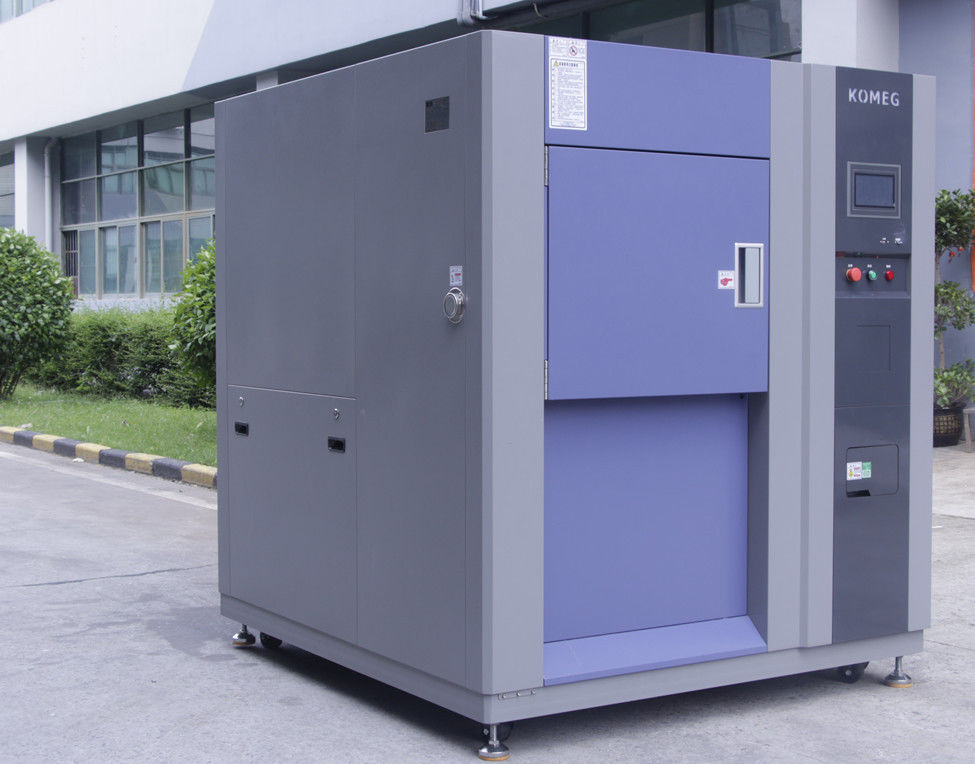

Three - Zone Thermal Shock Chamber With Alarm System 300L / Temperature Cycling Chamber

China Three - Zone Thermal Shock Chamber With Alarm System 300L / Temperature Cycling Chamber supplier
Three - Zone Thermal Shock Chamber With Alarm System 300L / Temperature Cycling Chamber supplier Three - Zone Thermal Shock Chamber With Alarm System 300L / Temperature Cycling Chamber supplier Three - Zone Thermal Shock Chamber With Alarm System 300L / Temperature Cycling Chamber supplier Three - Zone Thermal Shock Chamber With Alarm System 300L / Temperature Cycling Chamber supplier

Large Image :  Three - Zone Thermal Shock Chamber With Alarm System 300L / Temperature Cycling Chamber

Product Details:

Place of Origin: China
Brand Name: KOMEG
Certification: CE approval
Model Number: KTS-300D

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: rigid foam and wooden box
Delivery Time: 30 day after confirm the order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1, 000~1, 500 SETS / YEAR
Contact Now
Detailed Product Description
High Temp.chamber: +60℃ ~ +150℃ Low Temp.chamber: -65℃ ~ -10℃
Temp.uniformit: +-2.0℃ Exterior Material: Steel Paint
Interior Material: Stainless Steel Plate(SUS 304#)

High Low Temperature Shock 300L 3-Zone Thermal Shock Test Chamber with alarm system





Control method and characteristics



It is to use low-temperature and high temperature cold storage hot storage tank, according to the action



need to turn on the DAMPER to achieve the fast impact effect. The balance temperature regulation



control system (BTC) controls the SSPR in P.I.D. mode, so that the heating capacity of the system is equal



to the amount of heat loss, so it can be used in a long-term and stable way.





Specifications





.Performance:( Water-cooled, water temperature is +25 ° C, no load)
1. High temperature range +60℃ ~ +150℃
2. Low temperature range -65℃ ~ -10℃
3. High Temperature Chamber Temp. Range +60 ~ +200℃
4. Low Temperature Chamber Temp. Range -75℃ ~ -10℃
5. Shock return time

-65℃ ~ +150℃ about5min (no load IC 7.5kg)

(the sensor put in the outlet of the unit)

6. High and Low

Temperature Shock Constant temperature time

30min or more
7. Temperature uniformity ±2.0℃
8. Temperature fluctuation ±0.5℃
. Structure Features
1. Internal dimension W 800 × H 460 × D 815 mm
2. EX. Dimension Approximately W 1810 × H 1980 × D 2335 mm (not including the machine protruding part)
3. Chamber Structure independent product testing area, High temperature storage area, Low temperature cold storage area
4. Inner wall material Stainless Steel Plate SUS304
5. Wall material Steel paint
6. Insulation material

High temperature chamber:24k Glass wool

Low temperature chamber:Rigid polyurethane Foam + glass fiber

7. Heater Nickel - Chromium Alloy Wire heater
8. Supply air circulation system

a. Teco motors

b. Stainless steel long axis

c. (SIROCCO FAN)

9. Door

Single door

a. flat embedded handle

b. Rear button: SUS #304

c. silicone foam strip

.Refrigeration system
1. Compressor

Germany Bock Semi-hermetic compressor or

Germany Bitzer Semi-hermetic compressor

2. Refrigerant Environmental-friendly refrigerant: R404A R23
3. Condenser Shell and Tube condenser(water -cooled)
4. Evaporator Fin-type multi-stage automatic load capacity adjustment, No frost in long-term use of low temperature and humidity conditions
5. Other accessories Use internationally-known brand, such as high precise expansion valve, oil extractor, dryer and many other accessories.
6.Refrigerant flow control Adjust energy consumption output and control automatically to the refrigeration system.
7.Refrigeration Technology

Nitrogen welding, two-stage rotary vane vacuum pump, ensure that the internal cooling system clean and reliable.

water tray located at the bottom of the compressor to ensure condensate water drain through pipe freely at the rear of the chamber.





Standards Met and Implemented:



● GB-2423.1-89(IEC68-2-1)Test Mode A:Low Temperature Test



● GB-2423.2-89(IEC68-2-2)Test Mode B:High Temperature Test



● GJB360.8-87(MIL-STD.202F)High Temperature Life Test



● GBJl50.3(MIL-STD-810D)High Temperature Test



● GJBl50.4(MIL-STD-810D)Low Temperature Test

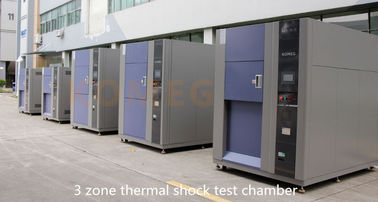

Prouduct Display



Three - Zone Thermal Shock Chamber With Alarm System 300L / Temperature Cycling Chamber

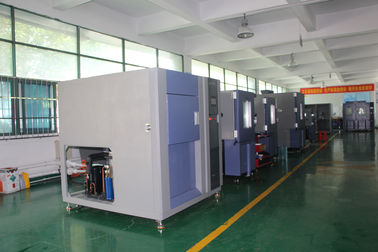

Packing and Shipment:



(1).Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber

(2).Usually we delivery the equipment by air,by sea or by express. it depends on customer.

Three - Zone Thermal Shock Chamber With Alarm System 300L / Temperature Cycling Chamber


After-sales service

We deal with your complains within 24 hours.

Training how to install the machine, training how to use the machine.

Engineers available to service machinery overseas.

All staffs in our company with philosophy of " integrity, dedication, truth-seeking, enterprise", would be

dedicated to provide high quality service and products for you.
