SUS 304 Thermal Shock Test Chamber Physical Chemical Formula Three - Slot Cold And Hot Impact Box

China SUS 304 Thermal Shock Test Chamber Physical Chemical Formula Three - Slot Cold And Hot Impact Box supplier
SUS 304 Thermal Shock Test Chamber Physical Chemical Formula Three - Slot Cold And Hot Impact Box supplier SUS 304 Thermal Shock Test Chamber Physical Chemical Formula Three - Slot Cold And Hot Impact Box supplier

Large Image :  SUS 304 Thermal Shock Test Chamber Physical Chemical Formula Three - Slot Cold And Hot Impact Box

Product Details:

Place of Origin: China
Brand Name: KOMEG
Certification: CE
Model Number: KTS

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: Negotiation
Packaging Details: Rigid foam and wooden box
Delivery Time: 45days after confirm the order
Payment Terms: L/C,, T/T, Western Union
Supply Ability: 100 pcs/day
Contact Now
Detailed Product Description
High Temp Chamber: +60℃ ~+200℃ Low Temp Chamber: -55℃ ~-10℃
Interior Material: SUS 304 Cooling Mode: Water Cooled
Color: Custom

Thermal Expansion and Cold Shrinkage Physical Chemical Formula Three-Slot Cold and Hot Impact Box



Product description:

The three-tank cold and hot impact box can be used to test the degree that the material can endure under the continuous environment of extremely high temperature and extremely low temperature in an instant, so as to test the chemical change or physical damage caused by thermal expansion and cold contraction in the shortest time. Applicable objects include metal, plastic, rubber, electronic equipment and other materials, which can be used as the basis or reference for product improvement.

Execution and satisfaction:

●GJB 150.3-1986         ●GB/T 2443.2-2001

●GJB 150.4-1986         ●GB/T 2443.22-2002

●GJB-150.5-1986         ●GB/T 2443.1 2001





Specifications:



3 Zone Thermal Shock Test Chamber IN THE BLANKET:
Specifications
Model TST-A Series
72A 130A 226A 360A 500A
Test weight(KG) 410 520 610 710 810
Interior size W(mm) 560 670 770 830 710
H(mm) 410 520 610 770 860
D(mm) 300 410 510 610 710
Basket size W(mm) 300 410 510 730 610
H(mm) 300 410 510 510 730
D(mm) 5 5 5 5 10
Low Temp. chamber -55 °C~ -10°C
Pre-cooling time +20 °C~ -55°C ,Within 60 min
Test. chamber -40 °C~ +150°C
High Temp. chamber +60 °C~ +200 °C
Pre-heating time +60°C~ +200°C ,Within 25 min
Recovery time High-Temp Exposure 30 min
Low-Temp Exposure 30 min
Recovery time within 5 min
Safety device within 10 seconds
Standard accessory No fuse breaker, over pressure over heat and over current protection for compressor,
over temperature protection,
over load protection for blower, dry heat protection
Interior material Cable port(portΦ50mm)*1, shelves*2
Exterior material Stainless steel plate ( SUS 304 )
Insulation material Baked painting steel or stainless steel(SUS304)
Refrigeration system Rigid polyurethane Foam glass fiber wool
Water Cooled
Controller Panel:7-inch LCD Touch panel , Chinese or English display selectable
Operation model:Program or fix point running
Memory capacity:120programs,1200steps ,
all repeat 999cycles , part repeat 99 cycles.
Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit
Input:Temp.:pt-100 Humidity:pt-100 or ~ 5V DCV
Ambient Temp. +5 °C~ +35 °C (41 ~ 95°F)
Power AC 380±10 % 50Hz ,3 phase 4 wires +Ground Wires
Note:1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available



ALL THE MODEL OF THIS KIND PRODUCTS IN THE BLANKET:
Specifications
Model TST- B Series
72B 130B 226B 360B 500B
Test weight(KG) 410 520 610 710 810
Interior size W(mm) 560 670 770 830 710
H(mm) 410 520 610 770 860
D(mm) 300 410 510 610 710
Basket size W(mm) 300 410 510 730 610
H(mm) 300 410 510 510 730
D(mm) 5 5 5 5 5
Low Temp. chamber -70 °C~ -10°C
Pre-cooling time +20°C~ -70 °C ,Within 60 min
Test. chamber -55°C~ +150°C
High Temp. chamber +60 °C~ +200 °C
Pre-heating time +60°C~ +200°C ,Within 25 min
Recovery time High-Temp Exposure 30 min
Low-Temp Exposure 30 min
Recovery time within 5 min
Safety device within 10 seconds
Standard accessory No fuse breaker, over pressure over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection
Interior material Cable port(portΦ50mm)*1, shelves*2
Exterior material Stainless steel plate ( SUS 304 )
Insulation material Baked painting steel or stainless steel(SUS304)
Refrigeration system Rigid polyurethane Foam glass fiber wool
Water Cooled
Controller Panel:7-inch LCD Touch panel , Chinese or English display selectable
Operation model:Program or fix point running
Memory capacity:120programs,1200steps , all repeat 999cycles , part repeat 99 cycles.
Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit
Input:Temp.:pt-100 Humidity:pt-100 or ~ 5V DCV
Ambient Temp. +5 °C~ +35 °C (41 ~ 95°F)
Power AC 380±10 % 50Hz ,3 phase 4 wires +Ground Wires
Note:1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available



ALL THE MODEL OF THIS KIND PRODUCTS IN THE BLANKET:
Specifications
Model TST- D Series
72D 130D 226D 360D 500D
Test weight(KG) 410 520 610 710 810
Interior size W(mm) 560 670 770 830 710
H(mm) 410 520 610 770 860
D(mm) 300 410 510 610 710
Basket size W(mm) 300 410 510 730 610
H(mm) 300 410 510 510 730
D(mm) 5 5 5 5 10
Low Temp. chamber -80 °C~ -10 °C
Pre-cooling time +20 °C~ -80°C ,Within 60 mins
Test. chamber -60°C~ +150 °C
High Temp. chamber +60 °C~ +200 °C
Pre-heating time +60°C~ +200°C ,Within 25 min
Recovery time High-Temp Exposure 30 min
Low-Temp Exposure 30 min
Recovery time within 5 min
Safety device within 10 seconds
Standard accessory No fuse breaker, over pressure over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection
Interior material Cable port(portΦ50mm)*1, shelves*2
Exterior material Stainless steel plate ( SUS 304 )
Insulation material Baked painting steel or stainless steel(SUS304)
Refrigeration system Rigid polyurethane Foam glass fiber wool
Water Cooled
Controller Panel:7-inch LCD Touch panel , Chinese or English display selectable
Operation model:Program or fix point running
Memory capacity:120programs,1200steps , all repeat 999cycles , part repeat 99 cycles.
Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit
Input:Temp.:pt-100 Humidity:pt-100 or ~ 5V DCV
Ambient Temp. +5 °C~ +35 °C (41 ~ 95°F)
Power AC 380±10 % 50Hz ,3 phase 4 wires +Ground Wires
Note:1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available

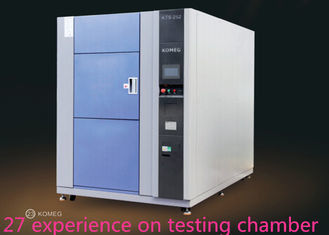

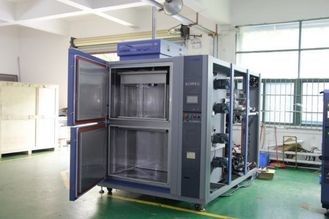

product picture:

SUS 304 Thermal Shock Test Chamber Physical Chemical Formula Three - Slot Cold And Hot Impact Box



SUS 304 Thermal Shock Test Chamber Physical Chemical Formula Three - Slot Cold And Hot Impact Box



SUS 304 Thermal Shock Test Chamber Physical Chemical Formula Three - Slot Cold And Hot Impact Box

Pre-sales service:

24-hour online service for your consultation.
Help to choose the right model, as well as a series of services, personnel, suggestions

Intermediate service:

Give you the best quotation, offer discounts for multiple orders,
At the request of customers, choose a convenient payment method. Timely production and delivery, notify you in a timely manner.

After sale:

Technical training: equipment operation, daily maintenance and warranty, common fault diagnosis and troubleshooting
Regular tour service: discover problems in advance and eliminate equipment and human hidden dangers in time.
Technical guidance: additional valuable special services can be provided according to the needs of users.
