Water Cooled Altitude Simulation Chamber , Aeronautical Simulated High Temperature And Pressure Test Box

China Water Cooled Altitude Simulation Chamber , Aeronautical Simulated High Temperature And Pressure Test Box supplier
Water Cooled Altitude Simulation Chamber , Aeronautical Simulated High Temperature And Pressure Test Box supplier Water Cooled Altitude Simulation Chamber , Aeronautical Simulated High Temperature And Pressure Test Box supplier

Large Image :  Water Cooled Altitude Simulation Chamber , Aeronautical Simulated High Temperature And Pressure Test Box

Product Details:

Place of Origin: China
Brand Name: KOMEG
Certification: CE , ISO9001
Model Number: KU-216S

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 45 working days after received your payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Temp.range: -70℃~+100℃ Temperature Fluctuation: ±0.5℃
Cooling Mode: Water Cooled Color: Custom

                  Aeronautical simulated high temperature and low pressure test box



Product Description:

Altitude Test Chambers combine temperature and altitude environments with optional humidity for simultaneous environmental testing. An Altitude Chamber allows users to control the test chamber temperature while subjecting the product under test to various levels of altitude up to 100,000 feet, with optional extended altitude range to 150,000 feet. This combination of elements allows precise simulation of real-life conditions a product might encounter at various altitude levels.
A hypobaric chamber, or altitude chamber, is a chamber used during aerospace or high terrestrial altitude research or training to simulate the effects of high altitude on the human body, especially hypoxia (low oxygen) and hypobaria (low ambient air pressure). Some chambers also control for temperature and relative humidity.





Specifications
Model KU-504L KU-1000L KU-504S KU-1000S
Inner Size (D*W*H)mm 800*700*900 1000*1000*1000 800*700*900 1000*1000*1000
Capacity(KW) 11 15 16 18
Chamber Volume(L) 504 1000 504 1000
Performance Temp range -40℃~+150℃ -70℃~+150℃
Temp constancy ±0.5%
Temp deviation ≥100℃, ±3.0℃(at constant pressure with empty load)
<100℃, ±2.0℃(at constant pressure with empty load)
Cooling rate 0.7℃~1.0℃/min(Overall average)
Pressure range Constant pressure ~1kPa
Pressure constancy When ≥40kPa, ±2kPa, 4kPa~40pKa ±0.5kPa, when≤4kPa, ±0.1kPa
Depressurization rate Constant pressure~1kPa≤30mins(Normal temp)
Pressure recovery rate 10kPa/Min(adjustable)
Material Exterior material Cold-rolled steel sheet(Rust proof&Plastic Spray treated)/Stainless Steel plate
Interior material Stainless steel(SUS304)
Pressurized parts High quality steel plate(Rust proof & Plastic spray treated)
Insulation material High quality glass wool
Cooling System Compressor Semi-Hermetic Compressor
Cooling Mode Water cooled
Temp regulating method Balanced Temperature & Humidity Control System (BTHC)
Pump Rotary vane type vacuum pump
Heater Iron-chrome wire heater
Sight window Circular viewing glass incorporating heat generator
Temp Sensor Pt-100
Controller Touch Screen Controller
Safety Devices Over pressure, over heat and over current protection for compressor, over temp. protection, over load protection for blower, Hydraulic and Water lack Protection, leakage protection, phase-lack protection, Pump failure alarm
Standard Accessory Sight window, Cable Port( 1 located on the left side), Baffle, Baffle frame*2
Power AC380V/50Hz, 3Phase 5 wires+ Ground Wire.
Note: 1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available

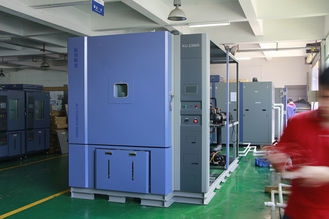

product picture:
Water Cooled Altitude Simulation Chamber , Aeronautical Simulated High Temperature And Pressure Test Box

Water Cooled Altitude Simulation Chamber , Aeronautical Simulated High Temperature And Pressure Test Box



FAQ


1. Do you offer after-sales service? How can I ask for that? And how about the warranty?



Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.



If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.



2. What’s the delivery term?


At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 20-35 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.



3. Do you accept customization service? Can I have my logo on the machine?


Yes, of course. We can not only offer standard machines, but also customized

machines according to your requirements. And we can also put your logo on the machine.
