Product Details:
Payment & Shipping Terms:
|
| Color: | Blue | Temperature Range: | +27℃ ～ +35℃ |
|---|---|---|---|
| Temp.fluctuation: | ±0.5℃ | Temp.Uniformity: | ±2.0℃ |
| High Light: | walk in environmental chamber,walk in humidity chamber |
||

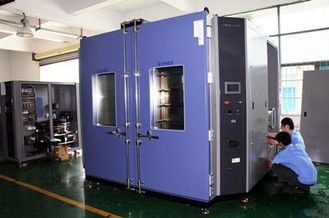

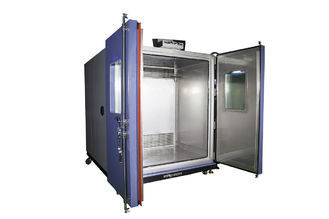

Water-cooled step-in constant temperature and humidity chamber
Main characteristics:
●Temperature customization control and program control, full data recorder (optional function)
●Short-circuit protection is provided for protection and heating to ensure high reliability of air and heating during operation of equipment.
●USB interface, Ethernet communication strategy, so that equipment communication will allow software expansion function to meet the various needs of customers
●With the internationally popular refrigeration mode, the refrigeration power of compressor can be automatically adjusted from 0% to 100%, and the energy consumption can be reduced by 30% compared with the traditional heating balance temperature control mode.
●The key components of refrigeration and electronic control adopt internationally renowned brand products, which improves and guarantees the quality of equipment.
●According to customer's requirements, we can make size, customize usage index and customize various matching functions.
Specifications
| 1,Temperature | ||||
| 1.1Temperature range | +27℃ ～ +35℃ | |||
| 1.2Temp. Deviation | ≦±2.0℃ | |||
| 1.3Temp.Fluctuation | ±0.5℃ | |||
| 1.4Temp.Uniformity | ≦2.0℃ | |||
| 2,Humidity | ||||
| 2.1 Humidity range | 40%～90%RH | |||
| 2.2Temperature and humidity range |
|
|||
| 2.3Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
|||
| 2.4Humidity Uniformity | ±3.0％RH(no-load) | |||
| 2.5Humidity fluctuation | ±2.0％RH | |||
| Temperature and humidity performance measurement comply with related regulation of IEC60068-3 standard; Sensors placed in the air outlet. | ||||
| Ⅴ. Chamber Structure (on-site installation) | ||||
| 1. Chamber size |
Workspace volume: W 2500 × H 2000 × D 2500 mm Exterior size: W 3430 × H 2050 × D 2600 mm (not including the machine protruding part) |
|||
| 2. Insulation box |
wall material: high-quality carbon steel with static color spray inner wall material: SUS304 # matte stainless steel plate Insulation material: 50mm rigid polyurethane foam insulation + glass fiber. (5 surface insulation, no floor) |
|||
| 3. Door | Single door, Door size W900*H1900 mm, including window (Specific size, Depending on design). | |||
| 4. Lighting device | 4 moisture-proof incandescent lamps. | |||
| 5.Electric control box | Total power circuit breaker, over-temperature protection. | |||
| 6.Pressure balance | The test chamber has a pressure balance port 1 to prevent the pressure in the chamber from being too high. | |||
| 7. Control method | Forced circulation ventilation, Balanced thermostat conditioning (BTHC). | |||
| 8. Heating | High-quality nickel-chromium alloy wire heater, non-contact control mode (SSR). | |||
| 9. Humidifying | Stainless steel corrosion resistance heat evaporation humidification. | |||
| 10.Pure water machine | Pure water machine type 1, please provide 1 ~ 2kg/cm2 tap water source. | |||
| 12.Humidity Sensor | Electronic humidity sensor, no need to replace the wet cloth. | |||
| 13.Condensate outlet | Equipped with studio condensate and unit condensate drain holes. | |||
Product details:
Packaging:
Chambers are covered with air bubble film before put them into the strong plywoodcase, which not only
has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic,
odorless, moisture corrosion, crash-proof, etc
After-sales Service and Training:
Charge-free warranty will last for 1 year from the date of equipment acceptance. After the warranty
period, the user will be charged properly. Irregular examination and life-long service are available;
Note: If needed, provide 2 operators for on-site installation and training
