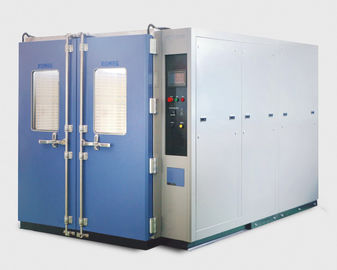

Water Cooled 43L Double Door Walk-In Chamber On - Site Installation

China Water Cooled 43L Double Door Walk-In Chamber On - Site Installation supplier
Water Cooled 43L Double Door Walk-In Chamber On - Site Installation supplier Water Cooled 43L Double Door Walk-In Chamber On - Site Installation supplier Water Cooled 43L Double Door Walk-In Chamber On - Site Installation supplier Water Cooled 43L Double Door Walk-In Chamber On - Site Installation supplier

Large Image :  Water Cooled 43L Double Door Walk-In Chamber On - Site Installation

Product Details:

Place of Origin: China
Brand Name: KOMEG
Certification: CE/ROHS/FCC/
Model Number: KMTW-43R(Walk-in Chamber)

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment30 work days upon deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P
Supply Ability: 1, 000~1, 500 SETS / YEAR
Contact Now
Detailed Product Description
Temp. Range: +15℃~+40℃ Temp. Deviation: ≦±2.0℃
Temp. Fluctuation: ±0.5℃ Workspace Volume: W 3000 × H 2400 × D 6000 Mm
Door: Double Door



Water cooled 43L Double Door Walk-In Chamber need on-site installation





 Applications



A KOMEG Walk-In Chamber serves as a test site for large components, assemblies, and finished



products in electrical and electronics, aerospace, batteries and automobiles, etc. KOMEG manufactures



both Static Walk-In Chambers and Dynamic Walk-In Chambers and can be configured as a temperature



chamber or a temperature humidity chamber.



The KMHW-Series walk-in temperature and climate test chambers are especially developed for large test



specimens. Size and design are optimal loading of test specimens. The modular construction and



variability in size and equipment is ideally for specific application.

.



Features



● GB-2423.1-2008 (IEC68-2-1) Test A: Low Temperature Test



● GB-2423.2-2008 (IEC68-2-2) Test B: High Temperature Test



● GJB360. 8-87(MIL-STD. 202F) High Temperature Life Test



● GBJl50. 3(MIL-STD-810D) High Temperature Test



● GJBl50. 4(MIL-STD-810D) Low Temperature Test



● GB2423. 3-93(IEC68-2-3)Test Ca: Constant Heat Test



● GB2423. 4-93(IEC68-2—30)Test Db: Damp Heat Alternative Test



● GJBl50. 9-93(MIL-STD-810D) Damp Heat Test





Specifications



IV. Main Technical Parameters
1. Temperature
1.1Temperature range +15℃~+40℃
1.2 Temp. Deviation ≦±2.0℃
1.3Temp.Fluctuation ≦±0.5℃
1.4Temp. Uniformity ≦2.0℃
1.5 Heating time From +15℃ to +40℃ 1℃/min no load
1.6 Cooling time From +40℃ to +15℃ 0.7℃/min no load
2, Humidity
2.1 Humidity range 60%R.H~95%R.H

2.2 Temperature and humidity range


2.3Humidity deviation

±3.0%RH(>75%RH)

±5.0%RH(≤75%RH)

2.4Humidity Uniformity ±3.0%RH( no load )
2.5Humidity fluctuation ±2.0%RH
Temperature and humidity performance measurement comply with related regulation of IEC60068-3 standard; Sensors placed in the air outlet.
. Chamber Structure ( on-site installation )
on-site installation , the chamber consists of three parts: Insulation chamber body, separate refrigerating unit and electric control cabinet.
1. Chamber size

Workspace volume : W 3000 × H 2400 × D 6000 mm

Exterior size :aboutW 3550 × H 2700 × D 7350 mm ( not including the machine protruding part)

2. Insulation box

 wall material: high-quality carbon steel with static color spray

 inner wall material: SUS304 # matte stainless steel plate

Insulation material: 100mm rigid polyurethane foam insulation + glass fiber

3. Door Double Door W900*H1900mm with observation window.
4. Lighting device 10 moisture-proof incandescent lamps.
6. Thread port Diameterφ100mm *1 port on the left chamber with rubber isolation plug and plastic cover.
7. Shelf No
8.Electric control box Total power circuit breaker, over-temperature protection.
9.Pressure balance The test chamber has a pressure balance port *1 to prevent the pressure in the chamber from being too high.
10.Control method Forced circulation ventilation, Balanced thermostat conditioning (BTHC).
11. Heating High-quality nickel-chromium alloy wire heater, non-contact control mode (SSR).
12. Humidifying Stainless steel corrosion heat evaporative humidification.
13.Humidity Sensor Electronic humidity sensor, no need to replace wet cloth.
14.Condensate outlet Equipped with studio condensate and unit condensate drain holes.
15.Pure water machine Pure water machine * 1, Please provide 1 ~ 2kg/cm2 tap water source.









































































































































































































Product details

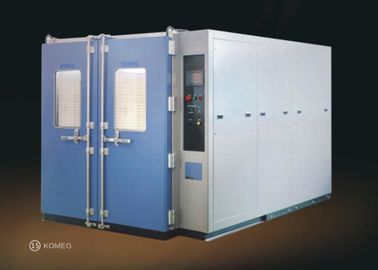

Water Cooled 43L Double Door Walk-In Chamber On - Site Installation




Packaging:


Chambers are covered with air bubble film before put them into the strong plywoodcase, which not only



has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic,



odorless, moisture corrosion, crash-proof, etc

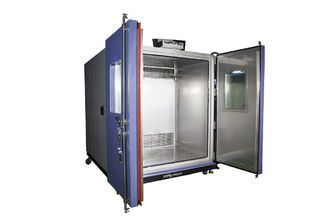

Water Cooled 43L Double Door Walk-In Chamber On - Site Installation





After-sales Service and Training



Charge-free warranty will last for 1 year from the date of equipment acceptance. After the warranty



period, the user will be charged properly. Irregular examination and life-long service are available;



Note: If needed, provide 2 operators for on-site installation and training





Company introduction:



Since 1990, manufacturers of custom environmental chambers and standard environmental chambers,



Specializing in environmental simulation equipment, ess, walk-in, environmental stress screening, altitude



chambers, temperature chambers, temperature and humidity chambers, environmental test chamber



manufacturers, humidity chambers, humidity simulation, temperature cycling, thermal test chambers, solar



panel test chambers, thermal shock, climatic/climate chambers, vibration test chambers, drive-in



chambers, laboratory test chambers, environment test rooms.



Water Cooled 43L Double Door Walk-In Chamber On - Site Installation
