Industrial Walk-In Chamber with Programmable Constant Temperature and Humidity Controller

Walk-In Room with Programmable Constant Temperature and Humidity Controller


1. Applications

Applicable Industry of the temperature stability test chamber:
The walk-in constant temperature humidity controlling room used in defense industry, aerospace industry, automation components, automotive parts, electrical and electronic parts, plastics, chemical, pharmaceutical industries and related products



2. Corresponding standard of thewalk-in constant temperature humidity controlling room:

1.   GB11158 Technical conditions for high-temperature testing room
2.   GB10589-89 Technical conditions for low-temperature testing room
3.   GB/T10586-89 technical conditions for humidity testing room
4.   GB/T2423.1-2001 testing methods for low-temperature
5.   GB/T2423.2-2001 testing methods for high-temperature
6.   GB/T2423.3-93 technical conditions for humidity testing room
7.   GB/T2423.4-93 testing method for alternating hot and humid
8.   IEC60068-2-1.1990 testing methods for low-temperature
9.   IEC60068-2-2.1974 testing methods for high-temperature
10.   GJB150.3 High-temperature test
11.   GJB150.4 Low-temperature test
12.   GJB150.9 muggy test
13.   GB/T2423.22 temperature test



3. Features

1) Stainless steel interior
2) Painted galvanized steel exterior for long life
3) MAP service doors are hinged (no tools or lifting)
4) Easy access to frequently checked refrigeration components
5) Reliable steam generator system for humidity applications
6) Adjustable vanes in supply grille allow directing of airflow as needed




4. Specifications


Specification of Walk-In Chambers
Model		KMHW-13
Volume(m³)		27.1CBM
Interior Dimensions		W3000*H2100*D4300mm
Exterior Dimensions		W5050*H2350*D2250mm
Safety Devices(standard)		No fuse breaker, over pressure,over heat and over current protection for compressor,over temperature protection, over load protection for blower, dry heat protection
Standard accessories		Sight window*1,cable port(portΦ50mm)*1,chamber lamp*1, status indicator
Control System		Balanced Temperature & Humidity Control System
Refrigeration system		Water Cooled
		Semi-hermetic compressor, single stage or cascade refrigeration system,
		CFC free refrigerant(HFC-507 and HFC-23)
Controller	Panel	7-inch LCD Touch panel,Chinese or English display selectable
	Operation model	Program or fix point running
	Memory capacity	120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles
	Accuracy	Temp.:0.1% of F.S±1 digit  Humidity:0.1% of F.S±1 digit
	Input	Temp.:pt-100, Humidity:pt-100 or ～5V DCV
	Comm.port	RS-232 or RS-485 (Softawre is option)
Temp. range		Maximum:80 ºC,120 ºC；Minimum:-60 ºC,-50 ºC,-40 ºC,-30 ºC,-20 ºC,-10 ºC,0 ºC
Humidity Range		10％,20%,30%～95%
Temp. constancy		±0.5 ºC
Humidity constancy		±2.5％R.H
Temp. uniformity		±2.0 ºC
Humidity uniformity		±5.0％R.H
Ambient Temp.		+5 ºC～+35 ºC
Wiring method		AC 380±10％ 50Hz ,3 phase 4 wires +Ground Wires
Heat up time		+20 ºC～+80 ºC,Within 60 min
Pull down time		+20 ºC～-55 ºC, -40 ºC,-20 ºC,-10 ºC,Within 120 or 90 or 60  min
Interior material		Stainless Steel Plate(SUS 304)
Exterior material		Baked Painting Steel Or Stainless steel(SUS304)
Insulation material		Rigid polyurethane foam
Door size (mm)		Single wing:W800*H1800； Double wing:W1600*H1800；
Note:1. We reserve the right to change specifications without prior notice   2.Customized sizes and configurations available




5. Description

Most popular walk-in type

1. Standard sub-assemblies for quick delivery and low cost
2. High quality panels manufactured to KOMEG standards.
3. Standard muti-layer heated window in door(s)
4. Operation allowable to 120°C(75°C in humidity mode )
5. Temperature change rates to 10°C/m.




Flexibility for structure

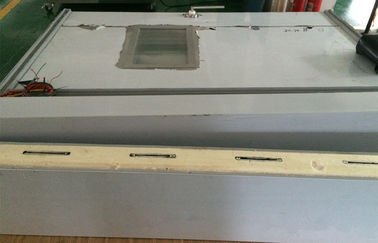

The panels used in our chamber are 4” (100mm or 150mm) Thick urethane-foam sandwiched between a stainless-steel interior wall and a coated-steel exterior. An assembled box is self-supporting. So that no heavy structural members are required. Different door sizes, flooring upgrades,access ports, and other modifications are possible.
