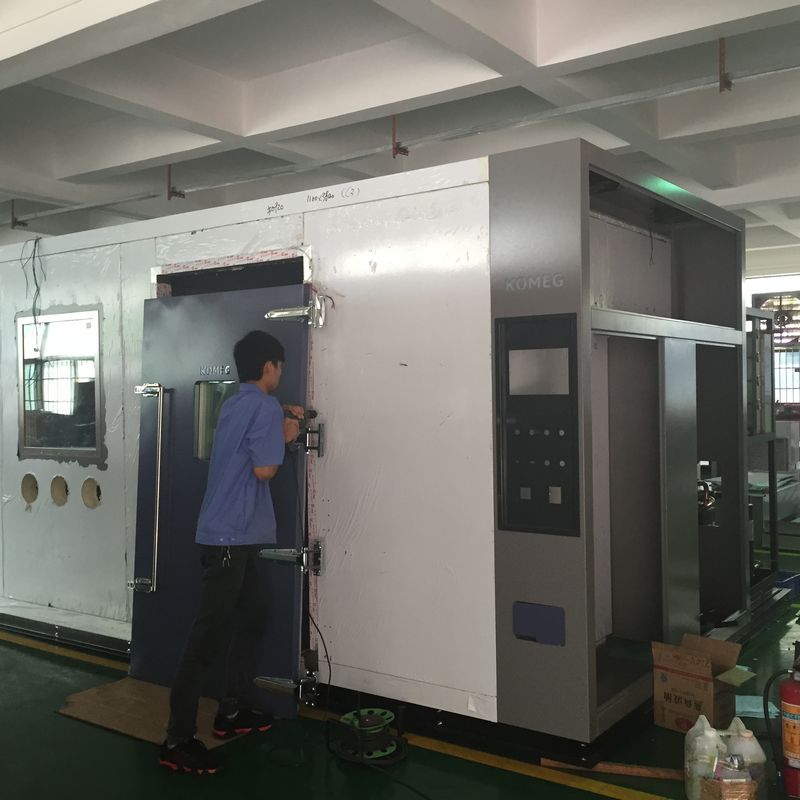

Constant Temperature Humidity Walk-In Chamber Energy Saving Stainless Steel

Constant Temperature Humidity Walk-In Chamber Energy Saving Stainless Steel
Constant Temperature Humidity Walk-In Chamber Energy Saving Stainless Steel
video play

Large Image :  Constant Temperature Humidity Walk-In Chamber Energy Saving Stainless Steel

Product Details:
Place of Origin: China
Brand Name: KOMEG
Certification: CE
Model Number: KHW-4
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: by polywood
Delivery Time: 35-120 working days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 20 sets one month
Detailed Product Description
Material: Stainless Steel
High Light:

walk in humidity chamber


walk in climatic chamber

Constant Temperature Humidity Walk-In Chamber Energy Saving Stainless Steel

Features of The KMHW Chambers:

1.  Controller: LED Touch Screen Programmable Controller
2.  Refrigeration system: Water cooled;
Semi-hermetic compressor, single stage or cascade refrigeration, CFC free referigerant
3.  Safety Devices: No fuse breaker, over pressure, over heat and over current protectors for compressor, over temp. Protector, over load protector of fan, dry heat protector

Benefits more than you can get from other supplier in China
1)Delicate touch and excellent user experience
2)Unique and compact design, top grade appearance, stable performance and easy operation.
3)Can simulate a wide range of temperature and humidity environments
4)Capable of testing large components, assemblies, and finished products
5)Customized sizes and configurations available
6)1 year warranties

Optional accessories
Cable Port: Two size of cable port is available: Φ 50mm, Φ 100mm.
Double door
Pass room: Provided to avoid disturbance of atmospheric temperature and humidity while opening the door.
Floor reinforcement: Can be fixed if heavy specimen placed in the chamber for test.
Carry-in inclined platform: Provided below the door to facilitate moving of specimens in and out through the door.
Entire ceiling blow-out duct
The extremely wide air inlet reduces the airflow rate (down to apprrox. 0.5m/s)
The rotation regenerating dehumidifier (M-300)ensures precise control of low humidity (21° C, 23%RH)for electrostatic reliability tests.
Temperature and humidity recorder
100mm width recording paper with 6 dots
180mm width recording paper with 12 dots
Status indication lamp
Provide to signal chamber status and warnings when normal running, a malfunction running or stand by occurs.
Water purifier
Provided to keep the humidifier heater free from scale and ensure the supply of water to humidifier.
Power socket
Air cooled type condense
Safety Devices(standard) No fuse breaker, over pressure over heat and over current protection for compressor,over temperature  protection, over load protection for blower, dry heat protection
Fittings Sight window*1,cable port(portΦ50mm)*1,chamber lamp*1, status indicator
Control System  Balanced Temperature & Humidity Control(BTHC) System
Refrigeration system Water Cooled
Semi-hermetic compressor, single stage or cascade refrigeration system,
CFC free refrigerant ( HFC-507 and HFC-23 )
Controller Panel 7-inch LCD Touch panel , Chinese or English display selectable
Operation model Program or fix point running
Memory capacity 120 programs,1200steps, all repeat 999 cycles , part repeat 99 cycles
Accuracy Temp.:0.1% of F.S±1 digit  Humidity:0.1% of F.S±1 digit
Input Temp.:pt-100, Humidity:pt-100 or  ~ 5V DCV
Comm.port  RS-232 or RS-485 (Softawre is option)
Temp. range

Maximum : 80 °C , 120 °C ; Minimum : -60 °C , -50 °C , -40 °C , -30 °C ,

-20 °C , -10 °C , 0 °C

Heat up time  +20 °C~ +80 °C  ,Within 60 min
Pull down time  +20 °C ~ -55 °C   -40 °C  -20 °C  -10 °C   ,Within 120 or 90 or 60  min
Temp. constancy ±0.5 °C
Temp. uniformity ±2.0 °C
Humidity Range 10 %, 20% , 30% ~ 95%
Humidity constancy ±2.5 % R.H
Humidity uniformity ±5.0 % R.H
Ambient Temp. +5 °C ~ +35 °C  (41 ~ 95°F)
Wiring method AC 380±10 %  50Hz ,3 phase 4 wires +Ground Wires
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane foam
Door size (mm) Single wing : W800*H1800 ;  Double wing : W1600*H1800 ;

Note:1. We reserve the right to change specifications without prior notice 2.Customized sizes

and configurations available
