Payment & Shipping Terms:
|Model NO:||KTS-300D||Controller:||English Menu|
|Item:||Thermal Shock Test Chamber||Material:||Stainless Steel|
temperature shock test chamber,
thermal shock chamber

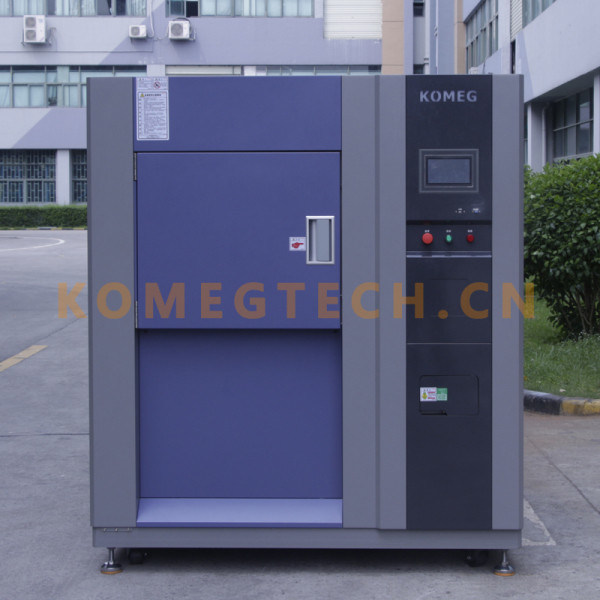

Digital Thermal Shock Test Chamber Environmental With Germany Compressor
Establish a cultural KOMEG, Build a century brand.
Quality conscious enterprise for quality conscious people.
We'd rather explain for the price than apologize for the Quality life long.
1. 26 years experience in manufacturing environment test chamber
2. France imported Tecumseh compressor
3. Experienced and skilled team
4. Reasonable price & Prompt delivery
About Thermal Shock Test Chamber
Thermal shock test is a method of environmental testing that subjects a product to alternating extremes of high and low temperatures. Thermal shock testing allows for the observation of changes in product characteristics and failure occurrence caused by different materials and their thermal expansion coefficients. A thermal gradient difference in the different parts of the object expands by different amounts and can cause cracking and failure. KOMEG brand thermal shock and thermal stress chambers have been designed to operate in accordance with reliability programs, quality control, and commercial test programs and military test.
KOMEG offers several configurations of thermal shock chambers capable of meeting a wide variety of testing needs.
Vertical, two zone chamber has hot and cold zones that can be controlled independently.
Horizontal, three zone thermal shock chamber utilizes controlled areas for hot, ambient and cold temperatures.
Double duty thermal shock chambers from KOMEG are designed with hot zones above and below the cold zone and a two compartment product carrier that simultaneously moves products between the hot and cold zones.
Benifits more than you can get from other supplier
1. Dedicatetouch and excellent user experience
2. Unique and compact design, top grade appearance, stable performance and easy operation
3. Can simulate a wide rang of temperature and humidity environments
4. Capable of testing large components, assemblies, and finished products
5. Customized sizes and configurations available
6. One year warranties
About our company
Founded since 1990
Specialized in environmental test chamber for 23 years
Skilled and trained staff
Imported Tecumseh, Danfoss, compressor
High cost-effective & Steady lead time
Invested three plus one B2B platforms for three years.
We are members of GMC.
our products are certified by ,CE, TUV, UL,etc
You know GMC---only cooperate with certified manufacturers
Jack Welch is the chief adviser of GMC
We will attend the CISILE 2014 Beijing, Booth No. 1102, on May 21-23, 2014.
Welcome to visit our factory. Let us be your reliable supplier in China.
Each set protected with resin fiber and PP film, then put into strong wooden case with operation mannual and video inside.
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
|Two-Zone Thermal Shock Chamber|
|Specifications||Note:1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available|
|Model||TST-A Series||TST-B Series||TST-D Series|
|Test weight (KG)||5||5||5||5||10||5||5||5||5||5||5||5||5||5||10|
|High Temp. Chamber||+60ºC ~ +200ºC|
|Low Temp. chamber||-55ºC ~ -10ºC||-70 ºC ~ -10 ºC||-80 ºC ~ -10 ºC|
|Pre-heat time||+20 ºC ~ -55 ºC ,Within 60 min||+20 ºC ~ -70 ºC ,Within 60 min||+20 ºC ~ -80 ºC ,Within 60 mins|
|Test. chamber||-40 ºC ~ +150 ºC||-55 ºC ~ +150 ºC||-60 ºC ~ +150 ºC|
|High Temp. chamber||+60 ºC ~ +200 ºC|
|Pre-heat time||+60 ºC ~ +200ºC,Within 25 min|
|Recovery time||High-Temp Exposure 30 min|
|Low-Temp Exposure 30 min|
|Recovery time within 5 min|
|Transfer time||within 10 seconds|
|Safety device||No fuse breaker, over pressure over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection|
|Standard accessory||Cable port(portΦ50mm)*1, shelves*2|
|Interior material||Stainless steel plate ( SUS 304 )|
|Exterior material||Baked painting steel or stainless steel(SUS304)|
|Insulation material||Rigid polyurethane Foam glass fiber wool|
|Refrigeration system||Water Cooled|
|Semi-hermetic compressor, cascade refrigeration system, CFC free refrigerant ( HFC-507 and HFC-23 )|
|Controller||Panel:7-inch LCD Touch panel , Chinese or English display selectable|
|Operation model:Program or fix point running|
|Memory capacity:120programs,1200steps , all repeat 999cycles , part repeat 99 cycles.|
|Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit|
|Input:Temp.:pt-100 Humidity:pt-100 or ~ 5V DCV|
|Ambient Temp.||+5 ºC ~ +35ºC|
|Power||AC 380±10 % 50Hz ,3 phase 4 wires +Ground Wires|
