|Temp. Range:||Maximum：80℃, 120℃; Minimum: -60℃, -50℃, -40℃, -30℃, -20℃, -10℃, 0℃||Humidity Range:||20% ～98%|
|Temp. Constancy:||±0.5℃||Humidity Constancy::||±2 ％R.H|
walk in humidity chamber,
walk in climatic chamber

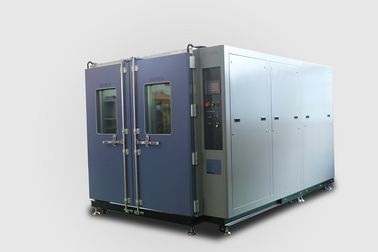

CE Standard Reliable performance and capabilities burn-in room used for long-term steady-state evaluation testing

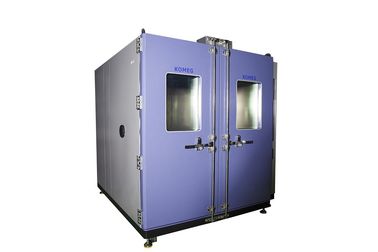

A KOMEG Walk-In Chamber serves as a test site for large components, assemblies, and finished products in electrical and electronics, aerospace, batteries and automobiles, etc. KOMEG manufactures both Static Walk-In Chambers and Dynamic Walk-In Chambers and can be configured as a temperature chamber or a temperature humidity chamber.
The KMHW-Series walk-in temperature and climate test chambers are especially developed for large test specimens. Size and design are optimal loading of test specimens. The modular construction and variability in size and equipment is ideally for specific application.
1) Stainless steel interior
2) Painted galvanized steel exterior for long life
3) MAP service doors are hinged (no tools or lifting)
4) Easy access to frequently checked refrigeration components
5) Reliable steam generator system for humidity applications
6) Adjustable vanes in supply grille allow directing of airflow as needed
7) Control method and characteristics:
Precision microcomputer control temperature and humidity system, with PID control the refrigerant flow to make the system’s heating / humidification reduction, to achieve low power consumption, energy saving, carbon reduction effect, cooling, heating, humidity control intelligent electronic control, long-term stable use.
Standard Met and Implemented:
GB/Bb T2423.2-89 high temperature test method
GB2423.1-89 test A: low temperature test method 6
GJB150.4-1986 test at low temperature
IEC60068-2-1 low temperature test method
IEC60068-2-38 temperature cycle
IEC60068-2-78 constant humidity temperature
Most popular walk-in type
Standard sub-assemblies for quick delivery and low cost
High quality panels manufactured to KOMEG standards.
Standard muti-layer heated window in door(s)
Operation allowable to 120°C(75°C in humidity mode )
Temperature change rates to 10°C/m.
Flexibility for structure
The panels used in our chamber are 4” (100mm or 150mm) Thick urethane-foam sandwiched between a stainless-steel interior wall and a coated-steel exterior. An assembled box is self-supporting. So that no heavy structural members are required. Different door sizes, flooring upgrades,access ports, and other modifications are possible.
Our housing are high-quality carbon steel with static color spray outside and galvanized steel sheet inside. Sheet metal processing machines are from Germany. Trumph is famous for its precise bending technology, so our products outlook looks quality, precise and neat.
We use tube bending machine for copper tube bending, this way can decrease the welding points. This is easy to keep the copper tube clean to ensure longer service life of the compressor. Also less welding points can reduce the resistance when the liquid flowing inside, to keep compressor working in higher efficiency, and better energy-saving.
Water and electricity system separating design:
For improving the comparable fragile part, heating part of constant high damp heat test, we apply water and electricity system separating design, to keep the water and electricity system separated with external humidifying system, and use top brand(e.g.: DANFOSS, Schneider, Danfoss, Emerson, Saginomiya, etc. ) for all electronic components to make sure the chambers’ quality and service time.
|Please check below operating technical parameter and contact us now for more details.|
