Laboratory Climate Altitude Environmental Test Chambers For Battery And Solar Panel

Certification
Good quality Temperature Humidity Chamber for sales
Good quality Temperature Humidity Chamber for sales
Fast delivery and quality products.

—— Gozia

Friendly and pleasant cooperator, "I like the factory, I like the design, I like the workstyle"

—— Wagner

The design and quality impress me a lot.

—— Mr Yee

" A trustworthy supplier of climatic test chamber".

—— Denis

I'm Online Chat Now

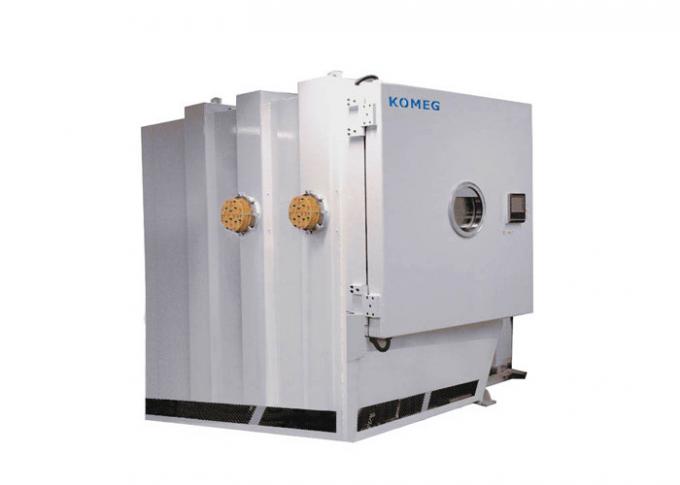

Laboratory Climate Altitude Environmental Test Chambers For Battery And Solar Panel

China Laboratory Climate Altitude Environmental Test Chambers For Battery And Solar Panel supplier
Laboratory Climate Altitude Environmental Test Chambers For Battery And Solar Panel supplier Laboratory Climate Altitude Environmental Test Chambers For Battery And Solar Panel supplier

Large Image :  Laboratory Climate Altitude Environmental Test Chambers For Battery And Solar Panel

Product Details:

Place of Origin: China
Brand Name: KOMEG
Certification: CE/ROHS/FCC/
Model Number: KU-1000S

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 15working days after received your payment
Supply Ability: 50sets per month
Contact Now
Detailed Product Description
Product Name: High Altitude Simulation Test Chamber Application: Steady And Transient State Testing
Inner Size (D*W*H):: 1000*1000*1000mm Emperature Range: -70℃~+150℃
Pressure Constancy: When ≥40kPa, ±2kPa, 4kPa~40pKa ±0.5kPa, When≤4kPa, ±0.1kPa Depressurization Rate: Constant Pressure~1kPa≤30mins(Normal Temp)
Material: Stainless Steel Warranty: 1 Year

Laboratory multi-purpose climate altitude test chamber for battery and solar panel


Applications

KOMEG Altitude Chambers combine temperature and altitude with optional humidity to test basic components or sub-assemblies for a variety of industries. Standard altitude chambers simulate altitude up to 100,000 feet (8.2 Torr) and higher levels optional up to 200,000 feet (.13 Torr). Optional extended ranges are also available to simulate sea level testing when your site is significantly above sea level.


Features

● Temperature range from -70 to 170℃
● Altitude range ground to 100,000 feet
● External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating system.
● Adopts international brand of imported parts for cooling system to improve operation reliability
● High precision and stable performance with touch screen controller, friendly Man-Machine interface.
● Multiple layers of safety device to easy maintenance.
● Viewing window and cable ports available
● Vacuum pump sized for climb/dive rate required by application


Standards Implement and Met
GB11159-89  GB10590-89  GB15091-89
GB/T2423.25-1992  GB/T2423.26-1992  GJB150.0-86

Specifications
ModelKU-504LKU-1000LKU-504SKU-1000S
Inner Size (D*W*H)mm800*700*9001000*1000*1000800*700*9001000*1000*1000
Capacity(KW)11151618
Chamber Volume(L)50410005041000
PerformanceTemp range-40℃~+150℃-70℃~+150℃
Temp constancy±0.5%
Temp deviation≥100℃, ±3.0℃(at constant pressure with empty load)
<100℃, ±2.0℃(at constant pressure with empty load)
Cooling rate0.7℃~1.0℃/min(Overall average)
Pressure rangeConstant pressure ~1kPa
Pressure constancyWhen ≥40kPa, ±2kPa, 4kPa~40pKa ±0.5kPa, when≤4kPa, ±0.1kPa
Depressurization rateConstant pressure~1kPa≤30mins(Normal temp)
Pressure recovery rate10kPa/Min(adjustable)
MaterialExterior materialCold-rolled steel sheet(Rust proof&Plastic Spray treated)/Stainless Steel plate
Interior materialStainless steel(SUS304)
Pressurized partsHigh quality steel plate(Rust proof & Plastic spray treated)
Insulation materialHigh quality glass wool
Cooling SystemCompressorSemi-Hermetic Compressor
Cooling ModeWater cooled
Temp regulating methodBalanced Temperature & Humidity Control System (BTHC)
PumpRotary vane type vacuum pump
HeaterIron-chrome wire heater
Sight windowCircular viewing glass incorporating heat generator
Temp SensorPt-100
ControllerTouch Screen Controller
Safety DevicesOver pressure, over heat and over current protection for compressor, over temp. protection, over load protection for blower, Hydraulic and Water lack Protection, leakage protection, phase-lack protection, Pump failure alarm
Standard AccessorySight window, Cable Port( 1 located on the left side), Baffle, Baffle frame*2
PowerAC380V/50Hz, 3Phase 5 wires+ Ground Wire.
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available



Laboratory Climate Altitude Environmental Test Chambers For Battery And Solar Panel

Why Choose KOMEG?
Over 26 Years' Experience
Komeg has been the brand of Komeg Technology Industrial since 1990. We manufacture environmental simulation test equipment for quality-conscious customers. Our factory is located in Dongguan, covering an area of 5,000 square meters, with over 52 employees including 26 R&D engineers.
We also have offices in Shenzhen and Songshan Lake National Hi-Tech Industrial Development Zone. Our product range includes programmable temperature and humidity chambers, thermal shock test chambers, walk-in chambers, burn-in room and aging test chambers, drying ovens, salt spray testers, as well as custom-made products for laboratories, research institutions, electronic communications and military enterprises.
Better Idea, Design and Quality
We strive for continuous innovation, releasing no less than five new designs each year. Our strong R&D team and skilled workers is the key to our success. No matter it is standard or custom-made project, we have rich experience in handling such so that customers worldwide can benefit more when working with us. And to ensure your specific test standards are met, the key components and parts we are using are imported famous brands. That's why , Konica Minolta, Senko, Midea, TCL and Huawei are among our long-term clients.
Establish a cultural KOMEG, Build a century brand.
Quality conscious enterprise for quality conscious people.
We'd rather explain for the price than apologize for the Quality life long
After-sale Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
Experienced and skilled staff;
High precision & reliability performance;
Prompt after-sale service;
Persist on the philosophy all the time

Besides this, we have a lot of other chamber for your reference:
3-zone/ 2-zone Thermal Shock Chamber
Walk-in Constant Temp. And Humidity Chamber
Rapid Temp. Change Chamber
Precise Drying Test Chamber
Temperature/ humidity/ vibration three integrated Chamber
Precise Drying Chamber
Vacuum oven/ no oxidation oven
Air Exchange Type Aging Oven
Burn-in Room
Salt spray Chamber
Two wing Drop Tester
Vibration Testing Machine( mechanical and electromagnetic)
