Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Altitude Low Pressure Test Chamber | Inner Size (D*W*H):: | 800*700*900 |
|---|---|---|---|
| Emperature Range: | -70℃～+150℃ | Pressure Constancy: | When ≥40kPa, ±2kPa, 4kPa~40pKa ±0.5kPa, When≤4kPa, ±0.1kPa |
| Cooling Mode: | Water Cooled | Material: | Stainless Steel |
| Chamber Volume（L）: | 504 | Temp Constancy: | ±0.5％ |
| High Light: | high altitude chamber,altitude testing chamber |
||
Water-Cooled Programmable hot cold low pressure test equipment for LED light aging test
Brief introduction
high and low temperature low pressure chamber for aviation, aerospace, electronics, defense, scientific research, automobile and motorcycle industries such as electrical products, materials, components, equipment, temperature, humidity, low air pressure and other single or complex environment test under simulated conditions, in order to develop the test under environmental conditions of performance, conduct an analysis and evaluation.
Details
high and low temperature low pressure chamber for aviation, aerospace, electronics, defense, scientific research, automobile and motorcycle industries such as electrical products, materials, components, equipment, temperature, humidity, low air pressure and other single or complex environment test under simulated conditions, in order to develop the test under environmental conditions of performance, conduct an analysis and evaluation.
Altitude chamber working principle
Temperature and pressure range chart

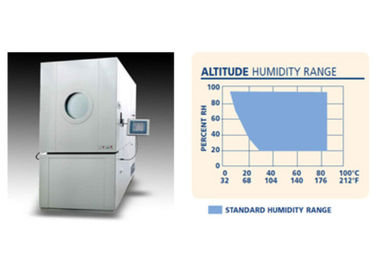

Temperature and humidity range chart
Features
● Temperature range from -70 to 170℃
● Altitude range ground to 100,000 feet
● External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating system.
● Adopts international brand of imported parts for cooling system to improve operation reliability
● High precision and stable performance with touch screen controller, friendly Man-Machine interface.
● Multiple layers of safety device to easy maintenance.
● Viewing window and cable ports available
● Vacuum pump sized for climb/dive rate required by application
Standards Implement and Met
GB11159-89 GB10590-89 GB15091-89
GB/T2423.25-1992 GB/T2423.26-1992 GJB150.0-86
| Specifications | ||
| Model | KU-504S | |
| Inner Size (D*W*H)mm | 800*700*900 | |
| Capacity(KW) | 16 | |
| Chamber Volume(L) | 504 | |
| Performance | Temp range | -70℃～+150℃ |
| Temp constancy | ±0.5％ | |
| Temp deviation | ≥100℃, ±3.0℃(at constant pressure with empty load) | |
| ＜100℃, ±2.0℃(at constant pressure with empty load) | ||
| Cooling rate | 0.7℃～1.0℃/min(Overall average) | |
| Pressure range | Constant pressure ～1kPa | |
| Pressure constancy | When ≥40kPa, ±2kPa, 4kPa～40pKa ±0.5kPa, when≤4kPa, ±0.1kPa | |
| Depressurization rate | Constant pressure～1kPa≤30mins(Normal temp) | |
| Pressure recovery rate | 10kPa/Min(adjustable) | |
| Material | Exterior material | Cold-rolled steel sheet(Rust proof&Plastic Spray treated)/Stainless Steel plate |
| Interior material | Stainless steel(SUS304) | |
| Pressurized parts | High quality steel plate(Rust proof & Plastic spray treated) | |
| Insulation material | High quality glass wool | |
| Cooling System | Compressor | Semi-Hermetic Compressor |
| Cooling Mode | Water cooled | |
| Temp regulating method | Balanced Temperature & Humidity Control System (BTHC) | |
| Pump | Rotary vane type vacuum pump | |
| Heater | Iron-chrome wire heater | |
| Sight window | Circular viewing glass incorporating heat generator | |
| Temp Sensor | Pt-100 | |
| Controller | Touch Screen Controller | |
| Safety Devices | Over pressure, over heat and over current protection for compressor, over temp. protection, over load protection for blower, Hydraulic and Water lack Protection, leakage protection, phase-lack protection, Pump failure alarm | |
| Standard Accessory | Sight window, Cable Port( 1 located on the left side), Baffle, Baffle frame*2 | |
| Power | AC380V/50Hz, 3Phase 5 wires+ Ground Wire. | |
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | ||
Benefits
Simple HMI operation
Easy operation and maintenance
Dual purpose for greater ROI
Heavy-duty construction for harsh testing
Robust Vacuum system for reliability
Standard configuration:
Two sample holders; an observation window; φ25 or φ50 cable hole.
Optional parts:
Communication interface RS232 or RS485, logger, micro printer, remote temperature and humidity control system (including printers, communications software, computer), mobile casters.
Structure:
Overall structure, new test chamber designed very easy to operation and maintenance:
Water and electricity system separation design;
External humidifying design;
Three levels of overheat protection, easy access for refrigeration servicing, etc.
Material:
machines for sheet metal processing;
Tecumseh, Bock Compressor;
High quality electronic components (e.g. DANFOSS, ALCO, RANCO, SPORLAN, SAGINOMIYA, Schneider solenoid valve)
Safety devices
1. Power owed to reverse protection
2. No fuse switch
3. Dry compustion prevention switch
4. The water protection switch
5. Over-temperature protection
6. Motor overload protection
7. The high-pressure compressor protection
8. The compressor overheating protection
9. The compressor overcurrent protection
10. The vacuum pump overcurrent protection
Packing Details:
We use PP Film wrapping the test chamber to protect the test chamber from moisture or being scratched first, then use strong plywood case for easyload and transport, and to keep the chambers from potential crash or impact.
Why Choose KOMEG?
Over 26 Years' Experience
Komeg has been the brand of Komeg Technology Industrial since 1990. We manufacture environmental simulation test equipment for quality-conscious customers. Our factory is located in Dongguan, covering an area of 5,000 square meters, with over 52 employees including 26 R&D engineers.
We also have offices in Shenzhen and Songshan Lake National Hi-Tech Industrial Development Zone. Our product range includes programmable temperature and humidity chambers, thermal shock test chambers, walk-in chambers, burn-in room and aging test chambers, drying ovens, salt spray testers, as well as custom-made products for laboratories, research institutions, electronic communications and military enterprises.
Better Idea, Design and Quality
We strive for continuous innovation, releasing no less than five new designs each year. Our strong R&D team and skilled workers is the key to our success. No matter it is standard or custom-made project, we have rich experience in handling such so that customers worldwide can benefit more when working with us. And to ensure your specific test standards are met, the key components and parts we are using are imported famous brands. That's why , Konica Minolta, Senko, Midea, TCL and Huawei are among our long-term clients.
Establish a cultural KOMEG, Build a century brand.
Quality conscious enterprise for quality conscious people.
We'd rather explain for the price than apologize for the Quality life long
After-sale Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
Experienced and skilled staff;
High precision & reliability performance;
Prompt after-sale service;
Persist on the philosophy all the time
