|Chamber Model:||KTS Series||Chamber Volume Size:||27L To 480L|
|Shock Range:||-55ºC～+150ºC||Maximal Temperature:||200°C|
|Lowest Temperature:||-70°C||Transition Time:||≤15S|
|Recovery Time:||5min||Temperature Change Rate:||15 To 50°C/min|
temperature shock test chamber,
environmental testing chambers

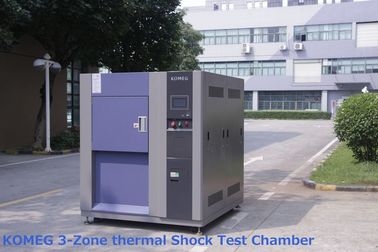

KOMEG 3-zone Hot and Cold Thermal Shock Temperature Chamber for auto electronics testing
Walk-in chamber has characteristics of large test space, high reliability, wide range of, multi-parameters of comprehensive environment, complicated test conditions. The operator can enter the test chamber to operate the tested specimen. Which provides conditions of temperature and humidity for products of bulk or large parts, semi- and finished products of industrial manufacturers.

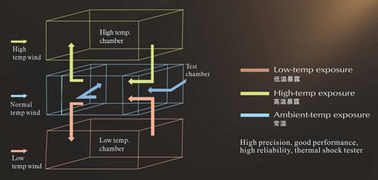

3-Zone Thermal Shock Chambers Working Principle:
The three-zone type thermal shock test chamber. Sample is placed in the test chamber, more extreme temperature than test temperature can be set in high-temperature chamber and low-temperature chamber. During low temperature test, cold chamber door open, and low-temperature chamber working together with test chamber. When converted into high-temperature test, cold chamber door closed, hot chamber door are opened, and test chamber working together with high-temperature chamber.
Conversion of mechanical action (transferring from high temperature to low temperature or low temperature to high temperature) can be completed in less than 1 second, and the temperature can be quickly stabilized.
|Pre-cooling time||+20ºC~-55ºC, Within 60 min|
|High Temp. chamber||+60ºC~+200ºC|
|Pre-heating time||+60ºC~+200ºC, Within 20 min|
|Recovery time||High-Temp Exposure 30 min|
|Low-Temp Exposure 30 min|
|Recovery time within 5 min|
|Safety device||NFB(No fuse breaker), over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection|
|Standard accessory||Cable port(portΦ50mm)*1, shelves*2|
|Interior material||Stainless steel plate(SUS 304)|
|Exterior material||Baked painting steel or stainless steel(SUS304)|
|Insulation material||Rigid polyurethane Foam + glass fiber wool|
|Refrigeration system||Water Cooled|
|Semi-hermetic compressor, cascade refrigeration system, CFC free refrigerant(HFC-507 and HFC-23)|
|Controller||Panel:7-inch LCD Touch panel, Chinese or English display selectable|
|Operation model: Program or fix point running|
|Memory capacity:120programs,1200steps, all repeat 999cycles,part repeat 99 cycles.|
|Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit|
|Input:Temp.:pt-100 Humidity:pt-100 or ~5V DCV|
|Power||AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires|
|Note:1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available|
1. Housing: integrated structure, mono-block construction which comprises all systems necessary for operation. And the outer housing is made of good quality galvanized sheet steel which is inside and outside primered and painted to a standard finish with high quality materials. The exterior surface will have high wear resistance.
2. Test space: the internal test space will be made of non magnetic SUS-304 stainless steel with no paint. All the seams will be TIG welded and vapor tight. The surface has no light reflection.
3. Insulation: the insulation material will be of low 'k' factor, high intensity and non hygroscopic nature. The insulation will be multi layered with double vapor barrier. Asbestos free mineral fiber insulation will be used.
4. Door: fully-opened and single wing type, double silicone sealed, hinges and locks; the cold zone and hot zone each has a door; the test sample zone has a fully-opened single wing door.
5. One Emergency Stop outside the chamber.
6. Cable port: One dia. 50mm or dia.
7. Power board and machine group positioning: in a frame placed behind the chamber.
Name: Bock Compressor
Compressor rack, high efficiency low energy consumption, low noise;
Name: Electric cabinet
Brand: Schneider, DANFOSS, Omron, Panasonic
Original: Germany, France, Japan
Top brand electronics, with full range of protection include overheat of blower fan motor, earth leakage protection, load short circuit protection, over temperature protection, over pressure
protection and so on.
Original: China/South Korea
It can control temperature and humdity constantly such as thermo-hygrostat mounted on, termperature, humidity, respectively, by setting the PID values for each interval can be precisely controlled and easy control via PC or mobile is possible.
* Inquiry and consulting support.
* Sample testing support.
* Visiting our factory is highly welcomed.
* We will train you how to install, use and maintain the machine.
123 (L) * 456 (W) * 789 (D)
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special requirments.
