Product Details:
Payment & Shipping Terms:
|
| Product Name: | Programmable Walk-in Test Chambers | Temp. Constancy: | +/-0.5oc |
|---|---|---|---|
| Humidity Constancy: | +/-2.5%R.H | Delivery: | 35 Working Days |
| Application: | Reliability Testing, Research & Development Testing, Failure Analysis | System: | Balanced Humidiy Control System |
| Ambient Temperature: | +5℃~+35℃ | Temp. Constancy: | ±0.5℃ |
| Humidity Constancy: | ±2.5%R.H | ||
| High Light: | walk in environmental chamber,walk in humidity chamber |
||

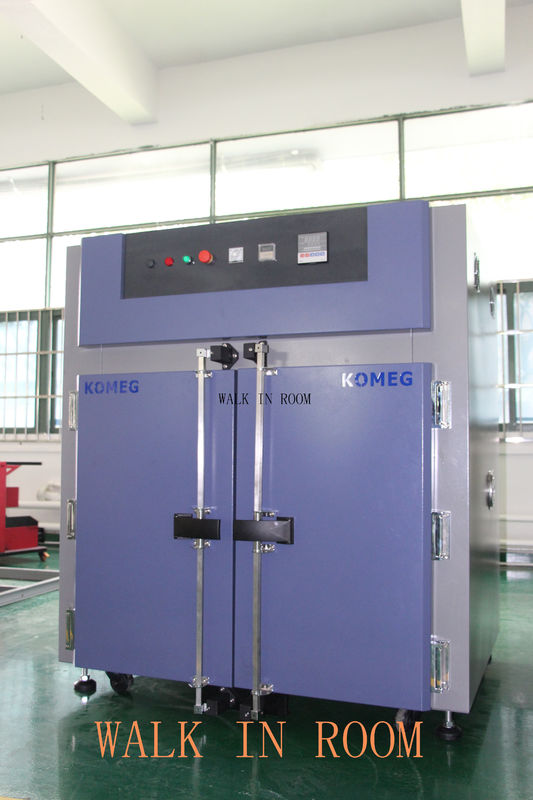

Hot cold test programmable walk in climate test equipment
1.Introduction & Application:
2.Corresponding Standard:
1. GB11158 Technical conditions for high-temperature testing room
2. GB10589-89 Technical conditions for low-temperature testing room
3. GB/T10586-89 technical conditions for humidity testing room
4. GB/T2423.1-2001 testing methods for low-temperature
5. GB/T2423.2-2001 testing methods for high-temperature
6. GB/T2423.3-93 technical conditions for humidity testing room
7. GB/T2423.4-93 testing method for alternating hot and humid
8. IEC60068-2-1.1990 testing methods for low-temperature
9. IEC60068-2-2.1974 testing methods for high-temperature
10. GJB150.3 High-temperature test
11. GJB150.4 Low-temperature test
12. GJB150.9 muggy test
13. GB/T2423.22 temperature test
3. Main Technical Parameters
|
Model |
KMHW-4(walk-in room) |
|||||||
|
Volume(m³) |
9CBM |
|||||||
|
Interior Dimensions |
W2100 x H2100 x D2050mm |
|||||||
|
Exterior Dimensions |
W3250 x H2350 x D2250mm |
|||||||
|
Safety Devices(standard) |
No fuse breaker, over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection |
|||||||
|
Standard accessories |
Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicator |
|||||||
|
Control System |
Balanced Temperature & Humidity Control System |
|||||||
|
Refrigeration system |
Water Cooled |
|||||||
|
Semi-hermetic compressor, single stage or cascade refrigeration system, |
||||||||
|
CFC free refrigerant ( HFC-507 and HFC-23 ) |
||||||||
|
Controller |
Panel |
7-inch LCD Touch panel, Chinese or English display selectable |
||||||
|
Operation model |
Program or fix point running |
|||||||
|
Memory capacity |
120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles |
|||||||
|
Accuracy |
Temp.:0.1% of F.S ± 1 digit Humidity:0.1% of F.S ± 1 digit |
|||||||
|
Input |
Temp.: pt-100, Humidity: pt-100 or ～5V DCV |
|||||||
|
Comm.port |
RS-232 or RS-485 ( Softawre is option) |
|||||||
|
Temp. range |
Maximum: 80 ºC,120 ºC; |
|||||||
|
Humidity Range |
10%, 20%, 30% ~ 95% |
|||||||
|
Temp. constancy |
±0.5 ºC |
|||||||
|
Humidity constancy |
±2.5%R.H |
|||||||
|
Temp. uniformity |
±2.0 ºC |
|||||||
|
Humidity uniformity |
±5.0%R.H |
|||||||
|
Ambient Temp. |
+5 ºC～+35 ºC |
|||||||
|
Wiring method |
AC 380 ± 10% 50Hz ,3 phase 4 wires + Ground Wires |
|||||||
|
Heat up time |
+20 ºC～+80 ºC, Within 60 min |
|||||||
|
Pull down time |
+20 ºC ~ -55 º, -40 ºC, -20 ºC, -10 ºC, Within 120 or 90 or 60 min |
|||||||
|
Interior material |
Stainless Steel Plate(SUS 304) |
|||||||
|
Exterior material |
Baked Painting Steel Or Stainless steel ( SUS304) |
|||||||
|
Insulation material |
Rigid polyurethane foam |
|||||||
|
Door size (mm) |
Single wing: W800 x H1800; Double wing: W1600 x H1800; |
|||||||
|
Note:1. We reserve the right to change specifications without prior notice 2.Customized sizes and configurations available |
||||||||
4. Features:
1 Large system capacity: 120 patterns*1200 steps, circulation Setting: Max. 9999 cycles, PID+SSR/SCR controller. Curves drawing, safety device
2 RS-232&RS-485 communication interface.
3 CE certification
4 Large LCD Touch screen controller
5 SUS#304 stainless steel plate inner chamber, stainless steel plate with Powder coated exterial chamber.
6 France imported Tecumseh compresser, environmental-friendly refrigerant (R404A, R23)
7 PU&fiberglass wool insulation is to make the temperature stable.
8 Large glass observation window with lamp, users can see the sample test effects directly.
9 Using more powerful wing blower air supply to make the temperature and humidity evenly dIstributed in
the test area.
10 Best after sales service: One year free parts maintenance warranty.
11 Meet international test standards: ASTM D2436, JIS K7212, DIN 50011, BS 2648, IEC-540, etc.
12 We are willing to send our engineers to install the equipment on-site for clients' requirement(charges are
provided by clinets).
13 Customization for inner chamber size, temperature and humidity range is available & welcomed.
