Product Details:
Payment & Shipping Terms:
|
| Product Name: | Walk-in Test Chambers | Application: | Vehicle Testing, Automotive Components, Fuel Tank |
|---|---|---|---|
| Volume SIZE: | IW 5400 X IH 2400 X ID 3500 Mm | Door Size: | Single Door, Double Door Selectable |
| Temp. Range: | -40℃ To 80℃, | Humidity Raneg: | 20 To 98%RH |
| H.S. Code: | 90321000 | Delivery: | 60 Workdays |
| Installation: | YES, Will Send Engineer And Technician On-site | TYPE: | Modular Type, Easy For Transportation |
| High Light: | walk in environmental chamber,walk in humidity chamber |
||

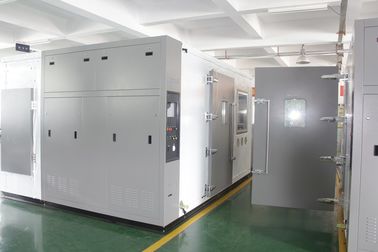

Customized Environmental Walk-In Chamber for vehicle automotive components solar panels electronic components Testing
Environmental Walk-In Test Chambers APPLICATION:
Walk-in Test Chambers are used for testing or storing products that require a large capacity chamber. Applications include full vehicle testing, automotive components, solar panels, electronic components, packaging, stability testing,biological research, industrial applications and more. KOMEG offers a broad selection of various types of walk-in chambers to meet almost any test requirement.
KOMEG’s fuel tank test chamber is designed to test the quality and reliability of automotive fuel tanks. Fuel tanks are temperature conditioned to -40°C (-40°F) along with a glycol mixture that is also chilled to -40°C (-40°F). The fuel tanks are filled with the glycol fluid and placed into the -40°C (-40°F) chamber. Tanks are soaked in the chamber for a predetermined length of time, removed from the chamber, raised to a specific height, and then dropped.
To meet testing schedules, this design includes the use of a walk-in chamber combined with a liquid chilling system and storage tank cooled by one refrigeration system for testing multiple fuel tanks. The walk-in chamber includes four access doors and a stainless steel shelf system allowing the user to install and remove two fuel tanks per door.
Modular Climate Conditioning Systems
KOMEG walk-In chambers feature our standard conditioning systems, which include refrigeration, air circulation,
electrical components, instrumentation and optional humidification needed to control your chamber environment.
A variety of different conditioning systems are available to meet your temperature and humidity requirements.
Our applications specialists will select the most appropriate, cost-effective system for your application.
These conditioning systems are designed to interface with an assembled Walk-In box without taking up valuable workspace in your chamber.
Each conditioning system unit includes hinged service panels for easy access and may be located on either side or the back of your walk-in box.
These systems may also be incorporated with existing Walk-In boxes. They can be ordered separately to replace
existing conditioning systems or add additional capacity to current walk-in chambers.
Walk-In Test Chambers Main Technical Parameters
| Model | KMHW-45 | |||||||
| Volume(m³) | 45CBM | |||||||
| Interior Dimensions | IW 5400 x IH 2400 x ID 3500 mm | |||||||
| Exterior Dimensions | Actually design | |||||||
| Safety Devices(standard) | No fuse breaker, over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection | |||||||
| Standard accessories | Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicator | |||||||
| Control System | Balanced Temperature & Humidity Control System | |||||||
| Refrigeration system | Water Cooled | |||||||

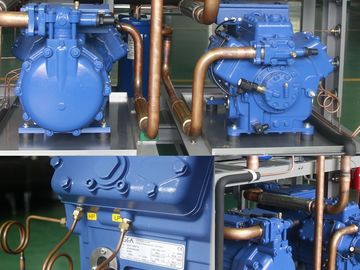

| Semi-hermetic compressor, single stage or cascade refrigeration system, | ||||||||
| CFC free refrigerant ( HFC-507 and HFC-23 ) | ||||||||
| Controller | Panel | 7-inch LCD Touch panel, Chinese or English display selectable | ||||||
| Operation model | Program or fix point running | |||||||
| Memory capacity | 120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles | |||||||
| Accuracy | Temp.:0.1% of F.S ± 1 digit Humidity:0.1% of F.S ± 1 digit | |||||||
| Input | Temp.: pt-100, Humidity: pt-100 or ～5V DCV | |||||||
| Comm.port | RS-232 or RS-485 ( Softawre is option) | |||||||
| Temp. range | Maximum: 80 ºC,120 ºC; Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC |
|||||||
| Humidity Range | 10%, 20%, 30% ~ 95% | |||||||
| Temp. constancy | ±0.5 ºC | |||||||
| Humidity constancy | ±2.5%R.H | |||||||
| Temp. uniformity | ±2.0 ºC | |||||||
| Humidity uniformity | ±5.0%R.H | |||||||
| Ambient Temp. | +5 ºC～+35 ºC | |||||||
| Wiring method | AC 380 ± 10% 50Hz ,3 phase 4 wires + Ground Wires | |||||||
| Heat up time | +20 ºC～+80 ºC, Within 60 min | |||||||
| Pull down time | +20 ºC ~ -55 º, -40 ºC, -20 ºC, -10 ºC, Within 120 or 90 or 60 min | |||||||
| Interior material | Stainless Steel Plate(SUS 304) | |||||||
| Exterior material | Baked Painting Steel Or Stainless steel ( SUS304) | |||||||
| Insulation material | Rigid polyurethane foam | |||||||
| Door size (mm) | Single wing: W800 x H1800; Double wing: W1600 x H1800; | |||||||
| Note:1. We reserve the right to change specifications without prior notice 2.Customized sizes and configurations available | ||||||||
Control method and characteristics:
Precision microcomputer control temperature and humidity system, with PID control the refrigerant flow to make the system’s heating / humidification reduction, to achieve low power consumption, energy saving, carbon reduction effect, cooling, heating, humidity control intelligent electronic control, long-term stable use.
