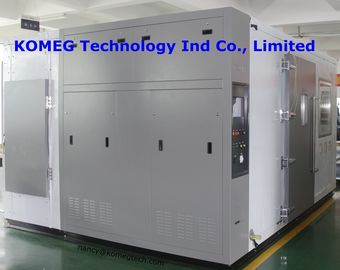

Environmental Walk-In Chamber / Eletronics Components Controlled Environment Chamber

Environmental Walk-In Chamber / Eletronics Components Controlled Environment Chamber
Environmental Walk-In Chamber / Eletronics Components Controlled Environment Chamber
video play

Large Image :  Environmental Walk-In Chamber / Eletronics Components Controlled Environment Chamber

Product Details:
Place of Origin: China
Brand Name: KOMEG Walk-In Chamber
Certification: CE/ROHS/FCC/ISO
Model Number: KMHW-17
Payment & Shipping Terms:
Minimum Order Quantity: 1set Constant Environmental Walk-In Chamber
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 42 working days after received your payment
Payment Terms: T/T /C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 50 sets per month
Detailed Product Description
Product Name: Walk-in Test Chamber Application: Vehicle Testing, Automotive Components, Solar Panels, Electronic Components
Volume(M3): 35CBM Door Size: Double Open Door With Big Windows
Temp. Constancy: +/-0.5oc Humidity Constancy: +/-2.5%R.H
H.S. Code: 90321000 Delivery: 60 Working Days
Installation: Yes Warranty Period: 1 To 5 Years Optional
High Light:

walk in humidity chamber


walk in climatic chamber

Environmental Walk-In Chamber for Eletronics automotive components cable wires Testing
Environmental Walk-In Test Chambers APPLICATION:


KOMEG offers a broad selection of various types of walk-in chambers to meet almost any test requirement.


Heat pump testing chambers belong to the modular chambers test equipment family. They are meant for characterization of heat pumps and associated equipments. We offer you a comprehensive serie of tests for every firms that produce and sell heat pump.

These chambers enable :

the characterization of thermodynamic materials linked to renewable energies.
to control performance of heat pump according to outside conditions within a wide range of temperature and humidity. These controls are carried out according to manufacturers requirements.



Offers flexibility for testing larger volumes at an economical price

Modular Walk-In chambers offer flexibility to meet virtually any size or configuration by using pre-fabricated / insulation panels.
Modular chambers are constructed of 4” /100mm thick polyurethane-foamed panels that lock together to form a tightly sealed
chamber with stainless steel interior and aluminum or white embossed exterior. Available in a variety of temperature
ranges to meet your specific testing needs



Modular Climate Conditioning Systems


temperature, humidity

Options and accessories:


Temperature range for modular type walk-in chamber:

Min.: -50 °C

Max.: +85  °C

Very compact and powerful environmental chamber intended for Rapid Change of Temperature tests on electronic boards.

Climats beats back again the limits of change of temperature rates.
Experience and innovation are gathered in a concentrate of technology and power.



Heat preservation material, we use high-intensity PU foam high density glass fiber cotton,
which can assure high precise and better uniformity and avoid unnecessary energy loss.

Large glass window design, viewing angle in all directions,
hollow electric plating film and anti-condensation design;
built-in LED lights to facilitate the test sample state of real-time observation in the course of testing;
double door design, the inner big glass door with hand-in holes for the convenient operating.



Walk-In Test Chambers Main Technical Parameters

Model KMHW-120
Volume(m³) 35.2CBM
Interior Dimensions W4000 x H5000 x D6000mm
Exterior Dimensions Actually design
Safety Devices(standard) No fuse breaker, over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection
Standard accessories Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicator
Control System  Balanced Temperature & Humidity Control System
Refrigeration system Water Cooled
Semi-hermetic compressor, single stage or cascade refrigeration system,
CFC free refrigerant ( HFC-507 and HFC-23 )
Controller Panel 7-inch LCD Touch panel, Chinese or English display selectable
Operation model Program or fix point running
Memory capacity 120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles
Accuracy Temp.:0.1% of F.S ± 1 digit  Humidity:0.1% of F.S ± 1 digit
Input Temp.: pt-100, Humidity: pt-100 or ~5V DCV
Comm.port  RS-232 or RS-485 ( Softawre is option)
Temp. range Maximum: 80 ºC,120 ºC;
Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC
Humidity Range 10%, 20%, 30% ~ 95%
Temp. constancy ±0.5 ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0 ºC
Humidity uniformity ±5.0%R.H
Ambient Temp. +5 ºC~+35 ºC
Wiring method AC 380 ± 10% 50Hz ,3 phase 4 wires + Ground Wires
Heat up time  +20 ºC~+80 ºC, Within 60 min
Pull down time  +20 ºC ~ -55 º,  -40 ºC, -20 ºC, -10 ºC, Within 120 or 90 or 60  min
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel ( SUS304)
Insulation material Rigid polyurethane foam
Door size (mm) Single wing: W800 x H1800;  Double wing: W1600 x H1800;
Note:1. We reserve the right to change specifications without prior notice   2.Customized sizes and configurations available

Control method and characteristics:

Precision microcomputer control temperature and humidity system, with PID control the refrigerant flow to make the system’s heating / humidification reduction, to achieve low power consumption, energy saving, carbon reduction effect, cooling, heating, humidity control intelligent electronic control, long-term stable use.
