Product Details:
Payment & Shipping Terms:
|
Product Name: | Walk-in Test Chambers | Application: | Vehicle Testing, Automotive Components, Fuel Tank |
---|---|---|---|
Volume SIZE: | IW 5400 X IH 2400 X ID 3500 Mm | Door Size: | Single Door, Double Door Selectable |
Temp. Range: | -40℃ To 80℃, | Humidity Raneg: | 20 To 98%RH |
H.S. Code: | 90321000 | Delivery: | 60 Workdays |
Installation: | YES, Will Send Engineer And Technician On-site | TYPE: | Modular Type, Easy For Transportation |
High Light: | walk in environmental chamber,walk in climatic chamber |

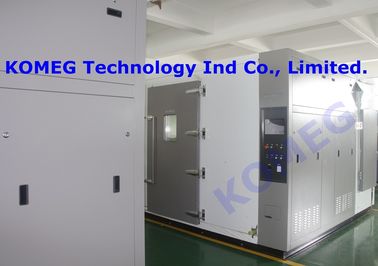

Environmental Walk-In Test Chamber for vehicle automotive solar panels electronic components Testing
Environmental Walk-In Test Chambers APPLICATION:
Mini - Maxi temperature safety independent of the regulation
Door electromagnetic locking device
Nickel-plating protection of the evaporator
Cabinet protection against chemical attack
Retention tray for produit runoffs
In case of a possible degassing of the tested element :
Air renewal system
Door electromagnetic locking device
In case of a possible smoke, fire or flame of the tested element :
Smoke detection
Gas detection
Flame detection
Visual alarm
Audible alarm
Extinction by gas
In case of a possible explosion of the tested element :
Inerting by nitrogen flush controlled by Spirale 3
O2 rate analyser
Explosive gas detector
Controlled relief valve or rupture disc

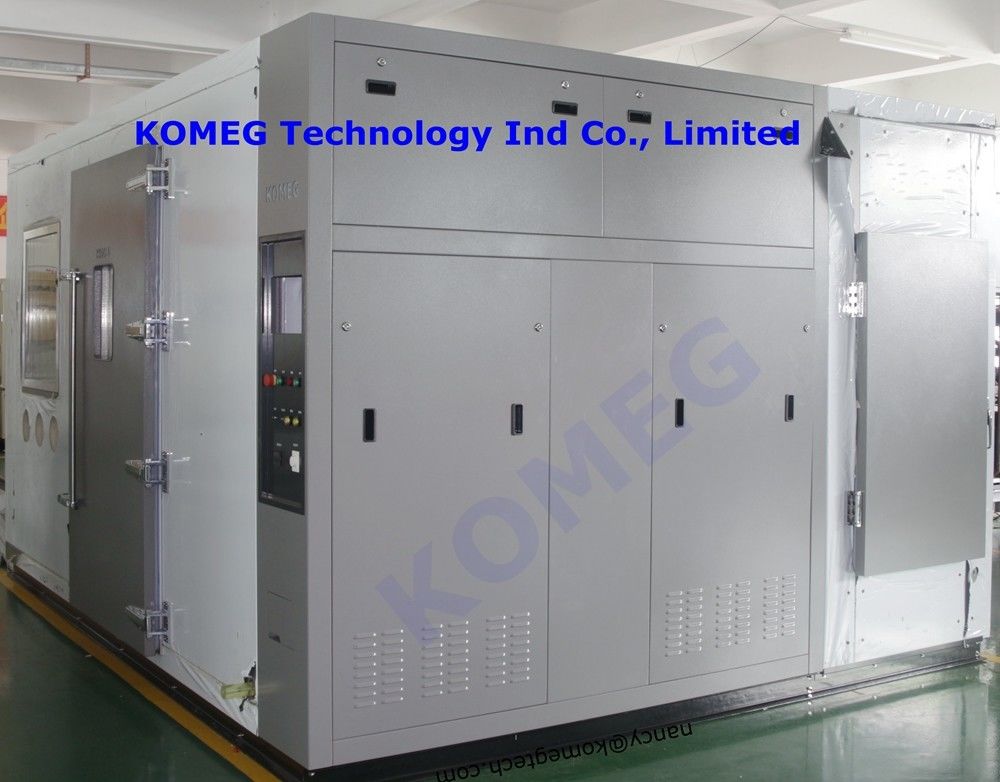

Modular Climate Conditioning Systems
KOMEG walk-In chambers feature our standard conditioning systems, which include refrigeration, air circulation,
electrical components, instrumentation and optional humidification needed to control your chamber environment.
A variety of different conditioning systems are available to meet your temperature and humidity requirements.
Our applications specialists will select the most appropriate, cost-effective system for your application.
These conditioning systems are designed to interface with an assembled Walk-In box without taking up valuable workspace in your chamber.
Each conditioning system unit includes hinged service panels for easy access and may be located on either side or the back of your walk-in box.
These systems may also be incorporated with existing Walk-In boxes. They can be ordered separately to replace
existing conditioning systems or add additional capacity to current walk-in chambers.
Walk-In Test Chambers Main Technical Parameters
Model | KMHW-45 | |||||||
Volume(m³) | 45CBM | |||||||
Interior Dimensions | IW 5400 x IH 2400 x ID 3500 mm | |||||||
Exterior Dimensions | Actually design | |||||||
Safety Devices(standard) | No fuse breaker, over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection | |||||||
Standard accessories | Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicator | |||||||
Control System | Balanced Temperature & Humidity Control System | |||||||
Refrigeration system | Water Cooled | |||||||
Semi-hermetic compressor, single stage or cascade refrigeration system, | ||||||||
CFC free refrigerant ( HFC-507 and HFC-23 ) | ||||||||
Controller | Panel | 7-inch LCD Touch panel, Chinese or English display selectable | ||||||
Operation model | Program or fix point running | |||||||
Memory capacity | 120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles | |||||||
Accuracy | Temp.:0.1% of F.S ± 1 digit Humidity:0.1% of F.S ± 1 digit | |||||||
Input | Temp.: pt-100, Humidity: pt-100 or ~5V DCV | |||||||
Comm.port | RS-232 or RS-485 ( Softawre is option) | |||||||
Temp. range | Maximum: 80 ºC,120 ºC; Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC |
|||||||
Humidity Range | 10%, 20%, 30% ~ 95% | |||||||
Temp. constancy | ±0.5 ºC | |||||||
Humidity constancy | ±2.5%R.H | |||||||
Temp. uniformity | ±2.0 ºC | |||||||
Humidity uniformity | ±5.0%R.H | |||||||
Ambient Temp. | +5 ºC~+35 ºC | |||||||
Wiring method | AC 380 ± 10% 50Hz ,3 phase 4 wires + Ground Wires | |||||||
Heat up time | +20 ºC~+80 ºC, Within 60 min | |||||||
Pull down time | +20 ºC ~ -55 º, -40 ºC, -20 ºC, -10 ºC, Within 120 or 90 or 60 min | |||||||
Interior material | Stainless Steel Plate(SUS 304) | |||||||
Exterior material | Baked Painting Steel Or Stainless steel ( SUS304) | |||||||
Insulation material | Rigid polyurethane foam | |||||||
Door size (mm) | Single wing: W800 x H1800; Double wing: W1600 x H1800; | |||||||
Note:1. We reserve the right to change specifications without prior notice 2.Customized sizes and configurations available |
Control method and characteristics:
Precision microcomputer control temperature and humidity system, with PID control the refrigerant flow to make the system’s heating / humidification reduction, to achieve low power consumption, energy saving, carbon reduction effect, cooling, heating, humidity control intelligent electronic control, long-term stable use.
