Product Details:
Payment & Shipping Terms:
|
| Product Name: | Programmable Walk-in Test Chamber | Application: | Reliability Testing, Research & Development Testing, Failure Analysis |
|---|---|---|---|
| Volume(M3): | 35.2CBM | Door Size: | Double Wing:W160*H180cm |
| Temp. Constancy: | +/-0.5oc | Humidity Constancy: | +/-2.5%R.H |
| H.S. Code: | 90321000 | Delivery: | 50 Working Days |
| High Light: | walk in environmental chamber,walk in humidity chamber |
||

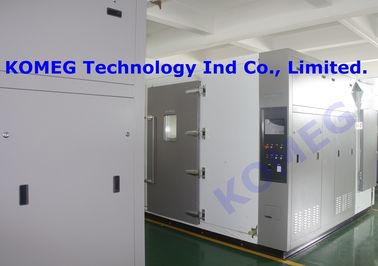

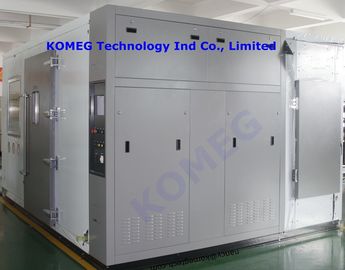

Environmental PV Solar Panel Walk-in Chamber with 10˝ TFT-colour touchscreen Controller
Environmental Walk-In Test Chambers
Environmental chamber to carry out thermal tests on batteries of all types.
For these very particular tests on sensitive products, the human safeties as well as products safeties are widely taken into account and solutions are offered according to the risks involved.
In case of a possible leak of the tested element :
Air exhaust duct
Environmental chambers made to carry out Photovoltaic (PV) Modules tests standards.
Important particularities have been taken into account during the study and realization of these chambers, according to the standards to realize :
the development of a smart system of chart that can be adapted on most photovoltaic panels in order to ease their handling when loading and storing
a humidity production and a ventilation especially adapted to standards requirements
the installation and piloting, by our software Spirale 3, of electrical supplies in order to "put under voltage" panels during tests to carry out either continuity tests or power tests
,
Main Technical Parameters
| Model | KMHW-17 | |||||||
| Volume(m³) | 35.2CBM | |||||||
| Interior Dimensions | W3900 x H2100 x D4300mm | |||||||
| Exterior Dimensions | W5050 x H2350 x D4500mm | |||||||
| Safety Devices(standard) | No fuse breaker, over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection | |||||||
| Standard accessories | Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicator | |||||||
| Control System | Balanced Temperature & Humidity Control System | |||||||
| Refrigeration system | Water Cooled | |||||||
| Semi-hermetic compressor, single stage or cascade refrigeration system, | ||||||||
| CFC free refrigerant ( HFC-507 and HFC-23 ) | ||||||||
| Controller | Panel | 7-inch LCD Touch panel, Chinese or English display selectable | ||||||
| Operation model | Program or fix point running | |||||||
| Memory capacity | 120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles | |||||||
| Accuracy | Temp.:0.1% of F.S ± 1 digit Humidity:0.1% of F.S ± 1 digit | |||||||
| Input | Temp.: pt-100, Humidity: pt-100 or ～5V DCV | |||||||
| Comm.port | RS-232 or RS-485 ( Softawre is option) | |||||||
| Temp. range | Maximum: 80 ºC,120 ºC; Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC |
|||||||
| Humidity Range | 10%, 20%, 30% ~ 95% | |||||||
| Temp. constancy | ±0.5 ºC | |||||||
| Humidity constancy | ±2.5%R.H | |||||||
| Temp. uniformity | ±2.0 ºC | |||||||
| Humidity uniformity | ±5.0%R.H | |||||||
| Ambient Temp. | +5 ºC～+35 ºC | |||||||
| Wiring method | AC 380 ± 10% 50Hz ,3 phase 4 wires + Ground Wires | |||||||
| Heat up time | +20 ºC～+80 ºC, Within 60 min | |||||||
| Pull down time | +20 ºC ~ -55 º, -40 ºC, -20 ºC, -10 ºC, Within 120 or 90 or 60 min | |||||||
| Interior material | Stainless Steel Plate(SUS 304) | |||||||
| Exterior material | Baked Painting Steel Or Stainless steel ( SUS304) | |||||||
| Insulation material | Rigid polyurethane foam | |||||||
| Door size (mm) | Single wing: W800 x H1800; Double wing: W1600 x H1800; | |||||||
| Note:1. We reserve the right to change specifications without prior notice 2.Customized sizes and configurations available | ||||||||
Control method and characteristics:
Precision microcomputer control temperature and humidity system, with PID control the refrigerant flow to make the system’s heating / humidification reduction, to achieve low power consumption, energy saving, carbon reduction effect, cooling, heating, humidity control intelligent electronic control, long-term stable use.
Flexibility for structure
The panels used in our chamber are 4” (100mm or 150mm) Thick urethane-foam sandwiched between a stainless-steel interior wall and a coated-steel exterior. An assembled box is self-supporting. So that no heavy structural members are required. Different door sizes, flooring upgrades,access ports, and other modifications are possible.
Widest test range, most customizable
The description is sourced from komegtech.com, for more detailes please refer to our website.
