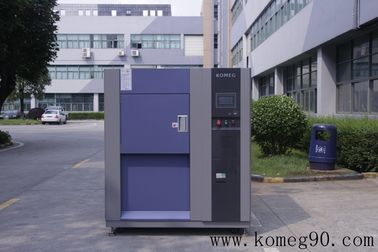

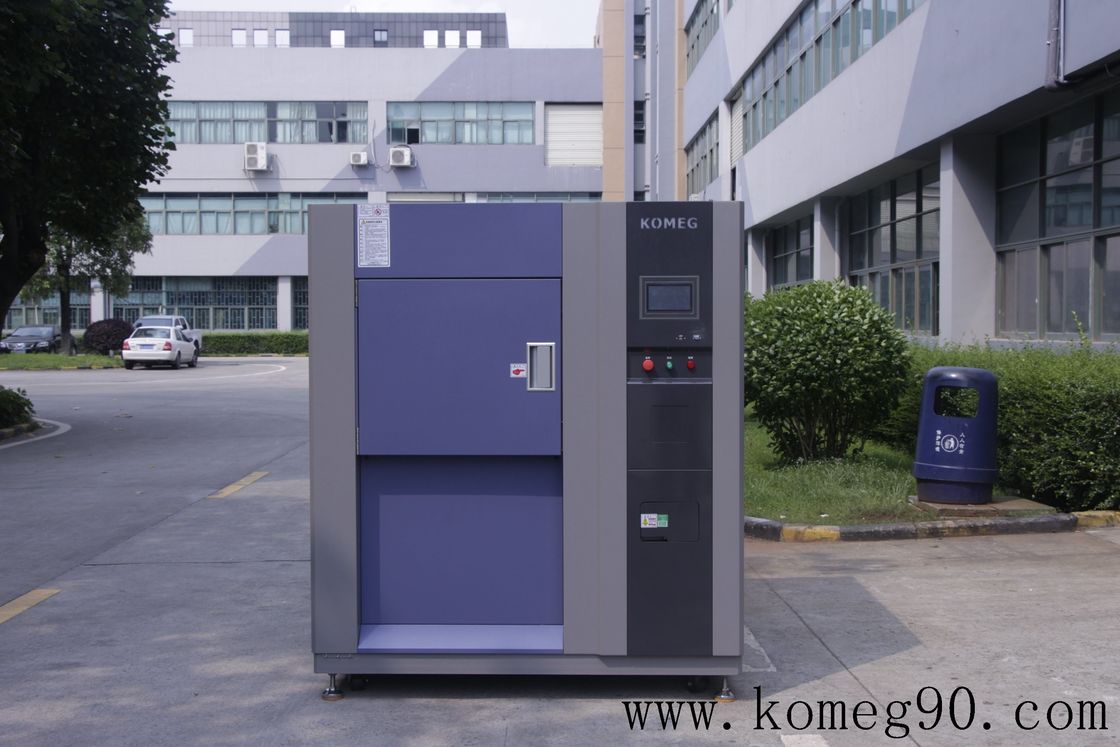

KOMEG thermal shock chambers meet the demands of today's environmental stress screening with proven performance in installations around the world. Our direct transfer method between hot and cold is an economical method to achieve rapid part temperature change for ESS or thermal shock.

Thermal shock test chamber is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment , that is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm. Application objects, including metal, plastic, rubber, electronics ... and other materials can be used as a basis to improve their products or reference.

1. Introduction of thermal shock chamber:

Thermal Shock Testing Chamber is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment , that is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm. Application objects, including metal, plastic, rubber, electronics ... and other materials can be used as a basis to improve their products or reference.

1.2 ​Corresponding standard:

1 GB/T2423.1-1989 low-temperature testing method
2 GB/T2423.2-1989 high-temperature testing method
3 GB/T2423.22-1989 change temperature test
4 GJB150.5-86 temperature impact test
5 GJB360.7-87 temperature impact test
6 GJB367.2-87 405 temperature impact test

1.3 KOMEG offers several configurations of thermal shock chambers capable of meeting a wide variety of testing needs.
Vertical, two zone chamber has hot and cold zones that can be controlled independently.
Horizontal, three zone thermal shock chamber utilizes controlled areas for hot, ambient and cold temperatures.
Double duty thermal shock chambers from KOMEG are designed with hot zones above and below the cold zone and a two compartment product carrier that simultaneously moves products between the hot and cold zones.

2. More Info About KOMEG's Products You Need to Know

• Micro processor, multi function control. To control and monitor the compressor, the solenoid valve and the heater .
• When faults occur, the auto detection and protection function will activate and will automatically cut off the power, the LCD screen will shows the fault status.
• Appointment function , the equipment can be activate and start for operation through setting (Year, month, date, hour and minute)
• Accumulation operation time provide a record for management and maintanence.
• Setting of the backlite of the LCD can extend the useful life of the LCD.
• Can choose one paragraph of control or the multi-screen process to increase the convenience of its operation.
• Curve drawing function: After setting up the operation parameters or during the running mode, you can call out the screen to understand the running situations and conditions.
• Program execution can be suspended (HOLD), Jump paragraph (ADV) and other procedures involved in setting.
• Recovery time and test time WAIT function.
• Power breakdown recovery function, can select BREAK, COLD, or HOT.

3. Why KOMEG Will Be Your Best Choice?

 The controller system features:

 Centralized controller, recorder, computer triad controller;

 1. Provide USB port, R485 interface, USB download;

 2. Large capacity may save 13450 segments, with super long running of 530 hours each segments.

 3. Program loop can be 32000 times, tiny loop 32000 times;

 4. Large built-in storage, can store 90 - day calendar data, historical curve (when the sample is 1 min)

 5. Support English, Chinese and so on.
