|Product Name:||High Altitude Test Chamber||Application:||Reliability And Stability Testing|
|Inner Size (D*W*H)::||1000*1000*1000mm||Emperature Range:||-70℃~+150℃|
|Pressure Constancy:||When ≥40kPa, ±2kPa, 4kPa~40pKa ±0.5kPa, When≤4kPa, ±0.1kPa||Depressurization Rate:||Constant Pressure~1kPa≤30mins(Normal Temp)|
|Material:||Stainless Steel||Warranty:||1 Year|
altitude testing chamber,
portable altitude chamber
PLC Programmable Controlling Climate Simulation Low Pressure Test Chamber

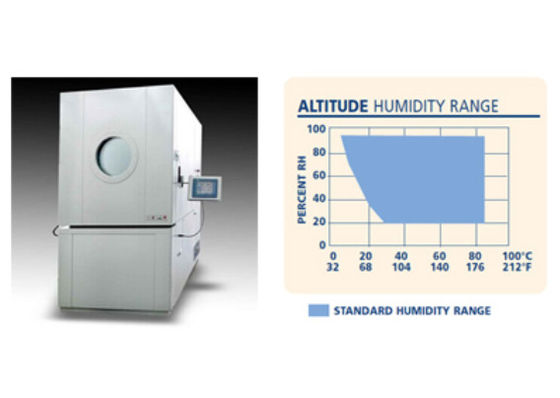

KOMEG Altitude Test Chambers combine temperature and altitude with optional humidity for simultaneous environment testing. Utilizing thislow temperature and high altitudechamber users can control the temperature while subjecting the product to various altitudes up to 100,000 feet standard. This combination of elements allows precise simulation of any real-life conditions a product might face and allows for a wide range of test profiles to be performed.
Standards Implement and Met
GB11159-89 GB10590-89 GB15091-89
GB/T2423.25-1992 GB/T2423.26-1992 GJB150.0-86
|Inner Size (D*W*H)mm||800*700*900||1000*1000*1000||800*700*900||1000*1000*1000|
|Temp deviation||≥100℃, ±3.0℃(at constant pressure with empty load)|
|＜100℃, ±2.0℃(at constant pressure with empty load)|
|Cooling rate||0.7℃～1.0℃/min(Overall average)|
|Pressure range||Constant pressure ～1kPa|
|Pressure constancy||When ≥40kPa, ±2kPa, 4kPa～40pKa ±0.5kPa, when≤4kPa, ±0.1kPa|
|Depressurization rate||Constant pressure～1kPa≤30mins(Normal temp)|
|Pressure recovery rate||10kPa/Min(adjustable)|
|Material||Exterior material||Cold-rolled steel sheet(Rust proof&Plastic Spray treated)/Stainless Steel plate|
|Interior material||Stainless steel(SUS304)|
|Pressurized parts||High quality steel plate(Rust proof & Plastic spray treated)|
|Insulation material||High quality glass wool|
|Cooling System||Compressor||Semi-Hermetic Compressor|
|Cooling Mode||Water cooled|
|Temp regulating method||Balanced Temperature & Humidity Control System (BTHC)|
|Pump||Rotary vane type vacuum pump|
|Heater||Iron-chrome wire heater|
|Sight window||Circular viewing glass incorporating heat generator|
|Controller||Touch Screen Controller|
|Safety Devices||Over pressure, over heat and over current protection for compressor, over temp. protection, over load protection for blower, Hydraulic and Water lack Protection, leakage protection, phase-lack protection, Pump failure alarm|
|Standard Accessory||Sight window, Cable Port( 1 located on the left side), Baffle, Baffle frame*2|
|Power||AC380V/50Hz, 3Phase 5 wires+ Ground Wire.|
|Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available|
Environmental adaptability and reliability test for the instruments and meters, electrical products, materials, spare parts, equipments, etc at a low pressure, high temperature, low temperature, under the effect of single factor or multiple factors at the same time. Test for electric performance parameters of the specimen. Mainly used in aviation, aerospace, information, electronics and other industries.
Multiple layers of safety device to easy maintenance.
1. Body of the chamber adopts the high quality of cool-rolled steel sheet, with electrostatic powder coating on the surface. The coating is hard and firm, with strong rust resistance, no corrosion.
2. Interior material: high quality and stainless steel sheet, as thick as 6mm thickness, with round corner modeling which is smooth, fluent, and easy to clean.
3.the chamber door is double tempered glass structure, which can observe the test specimen in the chamber clearly.
4. With a rubber sealing ring between the work chamber and the glass door to ensure the high vacuum box.
Why Choose KOMEG?
Over 26 Years' Experience
Komeg has been the brand of Komeg Technology Industrial since 1990. We manufacture environmental simulation test equipment for quality-conscious customers. Our factory is located in Dongguan, covering an area of 5,000 square meters, with over 52 employees including 26 R&D engineers.
We also have offices in Shenzhen and Songshan Lake National Hi-Tech Industrial Development Zone. Our product range includes programmable temperature and humidity chambers, thermal shock test chambers, walk-in chambers, burn-in room and aging test chambers, drying ovens, salt spray testers, as well as custom-made products for laboratories, research institutions, electronic communications and military enterprises.
Better Idea, Design and Quality
We strive for continuous innovation, releasing no less than five new designs each year. Our strong R&D team and skilled workers is the key to our success. No matter it is standard or custom-made project, we have rich experience in handling such so that customers worldwide can benefit more when working with us. And to ensure your specific test standards are met, the key components and parts we are using are imported famous brands. That's why , Konica Minolta, Senko, Midea, TCL and Huawei are among our long-term clients.
Establish a cultural KOMEG, Build a century brand.
Quality conscious enterprise for quality conscious people.
We'd rather explain for the price than apologize for the Quality life long
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
Experienced and skilled staff;
High precision & reliability performance;
Prompt after-sale service;
Persist on the philosophy all the time
Besides this, we have a lot of other chamber for your reference:
3-zone/ 2-zone Thermal Shock Chamber
Walk-in Constant Temp. And Humidity Chamber
Rapid Temp. Change Chamber
Precise Drying Test Chamber
Temperature/ humidity/ vibration three integrated Chamber
Precise Drying Chamber
Vacuum oven/ no oxidation oven
Air Exchange Type Aging Oven
Salt spray Chamber
Two wing Drop Tester
Vibration Testing Machine( mechanical and electromagnetic)
