Touch Screen Temperature Test Chamber With Rapid Temperature Cycling

China Touch Screen Temperature Test Chamber With Rapid Temperature Cycling supplier
Touch Screen Temperature Test Chamber With Rapid Temperature Cycling supplier Touch Screen Temperature Test Chamber With Rapid Temperature Cycling supplier Touch Screen Temperature Test Chamber With Rapid Temperature Cycling supplier Touch Screen Temperature Test Chamber With Rapid Temperature Cycling supplier

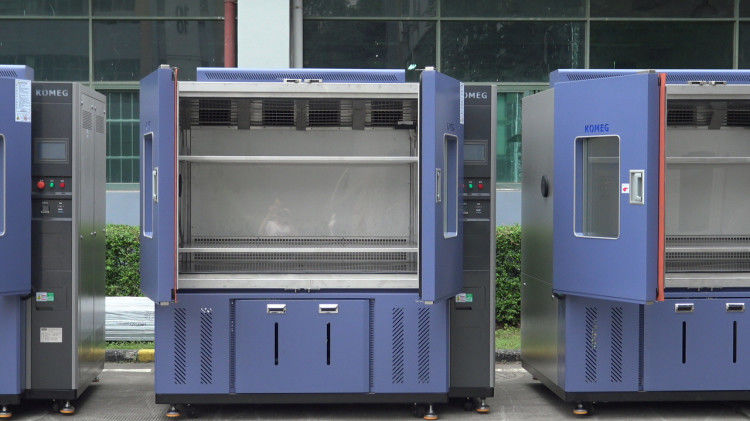

Large Image :  Touch Screen Temperature Test Chamber With Rapid Temperature Cycling

Product Details:

Place of Origin: Dongguan, China
Brand Name: KOMEG
Certification: CE//ISO
Model Number: KMH-1500L

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 12000USD~20000USD
Packaging Details: By plywood case
Delivery Time: 30 work days
Supply Ability: 50 set per month
Contact Now
Detailed Product Description
Applied: LED Working Volume: 1500L
Humidity Range: 20~98%R.H Temperature Uniformity: ±2.0º C (with Empty Load)
Controller: LED Touch Screen Compressor: Danfoss Or Tecumseh Or Bock
Wiring Method: AC 380±10% 50Hz ,3 Phase 4 Wires +Ground Wires Warranty: 12 Months
Material: Stainless Steel



Touch Screen Temperature test chamber / for high temperatures for rapid temperature cycling



KOMEG is proud to have available a budget friendly, high quality range of environmental testing chambers. KOMEG Technology has been manufacturing environmental test equipment since 1990 and specialises in climatic test chambers, thermal shock test chambers, walk-in chambers and medical laboratory equipment.

Komeg has been a specialist in environmental tests for almost 26 years and designs and manufactures chambers that can simulate extreme and reproducible environments. Present in sectors as diverse as automotive, aeronautics, space, defence and telecommunications, Komeg helps guarantee the best level of performance, reliability and safety for your products.

The KMH-L range is a -40°C to +150°C range of environmental chambers available in 5 sizes from 150L up to 1000L. This model features a large 7” full colour LCD touch screen controller capable of up to 120 programs or 1200 cycle steps. The programmable controller is easy to use and clear to read making operation simple and quick and designed with ease-of-use a priority.

Features:

  • Different sizes available starting at 36L
  • -70°C ~ +150°C models available
  • 7” colour touch screen programmable controller
  • Heavy duty castors to allow easy movement
  • Large viewing window with fluorescent light
  • 50mm diameter port holes
  • Refrigeration system uses world known reliable components





Specifications



Model KMH-1500L
1500L chamber volume
Temp. range -40°C ~150°C
Display resolution 0.1°C
Temperature stability High±0.5°C ,low ±1.0°C
Temperature uniformity ±2.0°C
Heat up time -40°C ~+100°C,within 45 min
Pull down time +20°C ~-40°C,within 60 min
Interior Dimension(mm) W 1500 × D 1000 × H 1000 mm
Exterior Dimension(mm) About: W2010 x D1510 x H 2150 mm
Interior material Stainless Steel Plate ( SUS 304)
Exterior material Baked Painting Steel Or Stainless steel ( SUS304)
Insulation material Rigid polyurethane Foam and Glass Fiber Wool
Total power 7KW(heater 3KW included)
Max current 13.6A
Ambient Temp. +5°C ~+35°C
Power Supply AC 380V±10% 50Hz ,3 phase 4 wires +Ground Wires
Weight 420KG
Sight window size 430 X 530mm
Sample holder 2 pcs
Fittings cable port(portΦ50mm)*1, chamber lamp*1, power cable *2m
Safety device (standard) No fuse breaker,over pressure,over heat&over current protect,over temp.
protect, over load protect for blower, dry heat protect
Control System Balanced Temperature & Humidity Control (BTHC)System
Refrigeration system Air Cooled (Water Cooled is option)
Hermetic compressor
Single stage refrigeration system,
CFC-Free refrigerant(HFC-507/HFC-23)
Controller 7-inch LCD Touch Screen panel
Operation model :Program or fix point running
Memory capacity :120programs,1200steps,
All repeat 999 cycles, part repeat 99 cycles
Note: 1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available



Features

A. Reliability testing based on current test standards in the temperature range of -40 °C to 180 °C and 10% to 98% R.H.

B. The ideal simulation chamber for all heat and cold testing in the traditional temperature range -40 ºC and 150 ºC.

C. Forced ventilation loops design, balance temperature & humidity control system (BTHC).

D. We can provide custom-made machine and optional accessories satisfied your special requirements.

E. Improved programming and data collection via computer

F. Energy-saving operation, the KM-5166 controller uses advanced control of an electronic expansion valve to save energy and improve control of the refrigeration system. Improvements in refrigeration and heater operation make the new generation of KOMEG environmental test chambers the most energy efficient ever.



Standards Implemented and met

●GB10592-89 Technical requirements for high and low temperature test chamber
●GB2423.1-1989 Low temperature test mode
●GB2423.2-1989 High temperature test mode

●GJB150.3-1986 High temperature test mode

●GJB150.4-1986 Low temperature test mode

●GJB150.9-1986 Warm test method





Standard configuration

●Stainless steel exterior

●Energy-efficient refrigeration with exclusive electronic expansion valve system

●Specialized humidity generation and control

●Unique thermal break construction for extreme testing

●Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m
●No fuse breaker, over pressure
,over heat and over current protection for compressor, Over temperature protection, over load protect of blower, dry heat protection



Optional accessories

●Cable Port: Φ100mm cable port is available
●Shelves
●Ro-type water purifier:R-80/day
Provide to keep the humidifying heater and wet bulb wick free from scale.
●Inner glass door with operation port
A glass door can be provided behind the main door so that specimens can be observed. Two operation ports of 130mm diameter are used for handing specimens inside the chamber without opening the glass door.
●Dehumidifier
The rotation regenerating dehumidifier M-120 ensures precise control of low humidity (5℃ 5%RH) for electrostatic reliability tests.
●Temperature and humidity recorder
Temperature 1 pen and humidity 1 pen.
Temperature 3 dots and humidity 1 dot.
Temperature 6 dots and humidity 6 dots.
●Defrosting circuit
The chamber automatically detects and melts the frost on the evaporator when operating below 0℃.
●Liquid or infection
In order to rapidly decrease the temperature inside the chamber, a cylinder of liquid can be connected the chamber





F. Energy-saving operation, the KM-5166 controller uses advanced control of an electronic expansion valve to save energy and improve control of the refrigeration system. Improvements in refrigeration and heater operation make the new generation of KOMEG environmental test chambers the most energy efficient ever.



Minimum Order Qty: 1 units
Price: Negotiable
Payment Terms: T/T, negotiable
Warranty 12 months on parts (excluding the damages caused by the natural disasters, abnormal power, improper operation and maintenance, etc)
Delivery Time: 60 working days after received 60% deposit
Packaging Details: Packed in carton firstly, and then reinforced with plywood case for outer packing





About KOMEG:

As a professional manufacturer and the best brand environmental test chamber in China, KOMEG specialized in Environmental testing equipment for quality conscious people since 1990. Our products are CE approved and we are the supplier for , UL, and world top 500 companies.





Some environmental test chamber details

Touch Screen Temperature Test Chamber With Rapid Temperature Cycling

Touch Screen Temperature Test Chamber With Rapid Temperature Cycling



Part of the certificate for KOMEG test chamber

Touch Screen Temperature Test Chamber With Rapid Temperature Cycling



Touch Screen Temperature Test Chamber With Rapid Temperature Cycling
