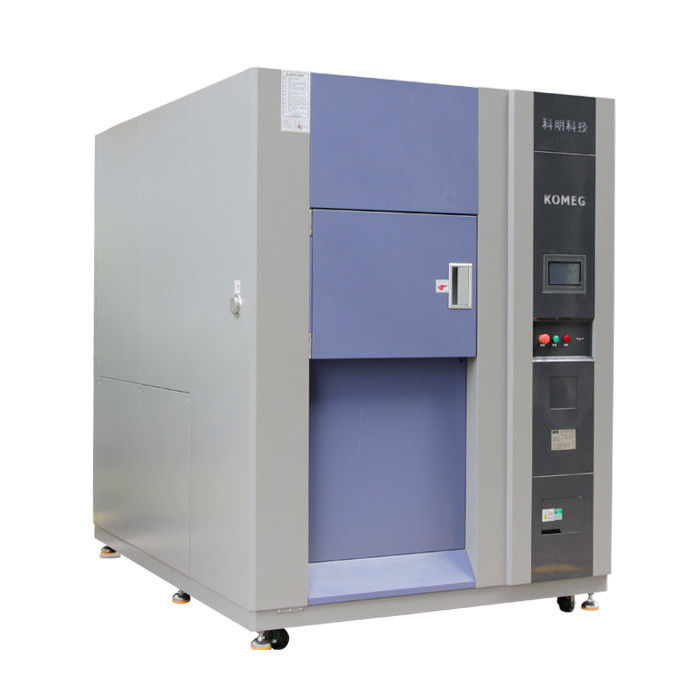

Direct Supplier Thermal Shock Testing Chamber for Electronics
1. Application of thermal shock chamber:
1.1 Application:
The temperature shock chambe for electronicsr is the perfect testing machine of electronic components, metal, chemical materials, automation components, communication module, national defense industry, aerospace industry, BGA, PCB substrate, electronic chip IC, semiconductor ceramic and high polymer materials.
1.2 Corresponding standard:
ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

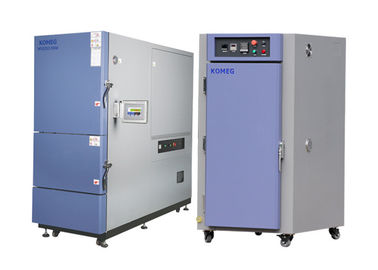

1.3 KOMEG offers several configurations of thermal shock chambers capable of meeting a wide variety of testing needs.
Vertical, two zone chamber has hot and cold zones that can be controlled independently.
Horizontal, three zone thermal shock chamber utilizes controlled areas for hot, ambient and cold temperatures.
Double duty thermal shock chambers from KOMEG are designed with hot zones above and below the cold zone and a two compartment product carrier that simultaneously moves products between the hot and cold zones.
2. More Info About KOMEG's Products You Need to Know
2.1 Refrigeration system characteristics
· The equipment is divided into high temperature zone, low temperature region, the three parts of the test area, the body of each zone by thermal unique structure.
· Can choose the starting position, high or low temperature cycling.
· Using color touch crystal display controller, simple operation, easy to learn.
· High formula memory capacity can be set to 120 patterns. The maximum cycle’s setting is 9999. The maximum setting time of each pattern is 9999Hrs 59 minutes.
· The machine is divided into three sections: the high temperature chamber, the low temperature chamber, and testing chamber.
2.2 Structure Features
Wall material:Top-grade Carbon Steel Plate,Surface electrostatic color Spray processing
Inner wall material:Stainless Steel Plate SUS304
Body insulation material:Rigid polyurethane Foam + glass fiber
Door insulation material:Rigid Polyurethane Foam + Glass fiber
2.3 Material:
Interior material: Stainless Steel Plate SUS304#
Exterior material: Baked Painting Steel Plate or Stainless Steel SUS304#
Insulation material: Rigid polyurethane Foam and Glass Fiber Wool
3. Why KOMEG Will Be Your Best Choice?
The controller system features:
Centralized controller, recorder, computer triad controller;
1. Provide USB port, R485 interface, USB download;
2. Large capacity may save 13450 segments, with super long running of 530 hours each segments.
3. Program loop can be 32000 times, tiny loop 32000 times;
4. Large built-in storage, can store 90 - day calendar data, historical curve (when the sample is 1 min)
5. Support English, Chinese and so on.
4. Specifications
| Model |
|
|||||||||||
| 70A | 130A | 226A | 360A | 500A | ||||||||
| Test weight(KG) | 5 | 5 | 5 | 5 | 10 | |||||||
| Interior size | W(mm) | 410 | 520 | 610 | 710 | 810 | ||||||
| H(mm) | 560 | 670 | 770 | 830 | 710 | |||||||
| D(mm) | 410 | 520 | 610 | 770 | 860 | |||||||
| Basket size | W(mm) | 300 | 410 | 510 | 610 | 710 | ||||||
| H(mm) | 300 | 410 | 510 | 730 | 610 | |||||||
| D(mm) | 300 | 410 | 510 | 510 | 730 | |||||||
| Low Temp. chamber | -55ºC～-10ºC | |||||||||||
| Pre-cooling time | +20ºC～-55ºC, Within 60 min | |||||||||||
| Test. chamber | -40ºC～+150ºC | |||||||||||
| High Temp. chamber | +60ºC～+200ºC | |||||||||||
| Pre-heating time | +60ºC～+200ºC ,Within 25 min | |||||||||||
| Recovery time | High-Temp Exposure 30 min | |||||||||||
| Low-Temp Exposure 30 min | ||||||||||||
| Recovery time within 3 min | ||||||||||||
| Standard accessory | Cable port(portΦ50mm)*1, shelves*2 | |||||||||||
| Interior material | Stainless steel plate(SUS 304) | |||||||||||
| Exterior material | Baked painting steel or stainless steel(SUS304) | |||||||||||
| Insulation material | Rigid polyurethane Foam+glass fiber wool | |||||||||||
| Refrigeration system | Water Cooled | |||||||||||
|
Semi-hermetic compressor, cascade refrigeration system, CFC free refrigerant(HFC-507 and HFC-23) |
||||||||||||
| Controller | Panel:7-inch LCD Touch panel, Chinese or English display selectable | |||||||||||
| Operation model:Program or fix point running | ||||||||||||
| Memory capacity:120programs,1200steps, all repeat 999cycles,part repeat 99 cycles. | ||||||||||||
| Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit | ||||||||||||
| Input:Temp.:pt-100 Humidity:pt-100 or ～5V DCV | ||||||||||||
| Ambient Temp. | +5ºC～+35ºC | |||||||||||
| Power | AC 380±10％ 50Hz ,3 phase 4 wires +Ground Wires | |||||||||||
| Note:1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | ||||||||||||
