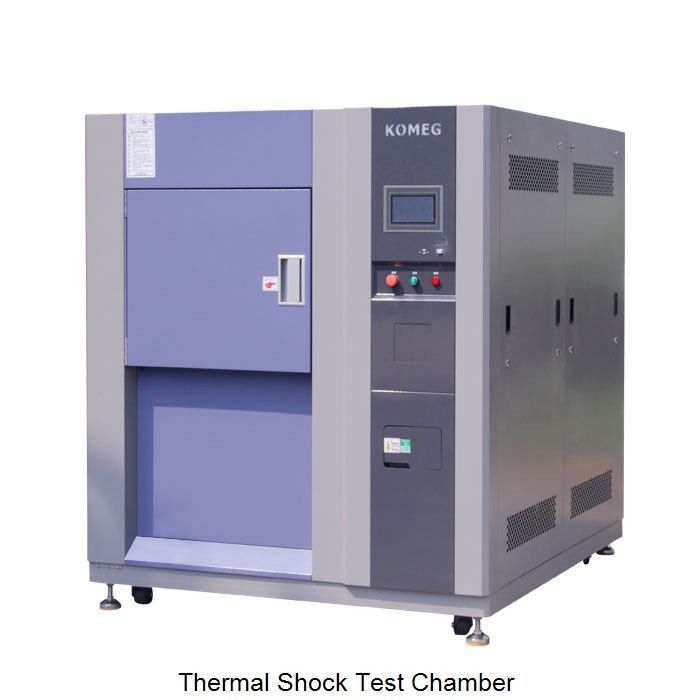

Lab Test Equipment Thermal Shock Test Chamber With High Low Temperature Fast Cycling

lab test equipment thermal shock chamber with high low temperature fast cycling

1. Application of thermal shock chamber:

1.1 Application:

Thermal Shock Test Chamberis used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment , that is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm. Application objects, including metal, plastic, rubber, electronics ... and other materials can be used as a basis to improve their products or reference.

1.2 ​Corresponding standard:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

1.3 KOMEG offers several configurations of thermal shock chambers capable of meeting a wide variety of testing needs.
Vertical, two zone chamber has hot and cold zones that can be controlled independently.
Horizontal, three zone thermal shock chamber utilizes controlled areas for hot, ambient and cold temperatures.
Double duty thermal shock chambers from KOMEG are designed with hot zones above and below the cold zone and a two compartment product carrier that simultaneously moves products between the hot and cold zones.

2. More Info About KOMEG's Products You Need to Know

2.1 Refrigeration system characteristics

· The equipment is divided into high temperature zone, low temperature region, the three parts of the test area, the body of each zone by thermal unique structure.

· Can choose the starting position, high or low temperature cycling.

· Using color touch crystal display controller, simple operation, easy to learn.

· High formula memory capacity can be set to 120 patterns. The maximum cycle’s setting is 9999. The maximum setting time of each pattern is 9999Hrs 59 minutes.

· The machine is divided into three sections: the high temperature chamber, the low temperature chamber, and testing chamber.

2.2 Structure Features

Wall material:Top-grade Carbon Steel Plate,Surface electrostatic color Spray processing

Inner wall material:Stainless Steel Plate SUS304

Body insulation material:Rigid polyurethane Foam + glass fiber

Door insulation material:Rigid Polyurethane Foam + Glass fiber

3. Why KOMEG Will Be Your Best Choice?

 The controller system features:

 Centralized controller, recorder, computer triad controller;

 1. Provide USB port, R485 interface, USB download;

 2. Large capacity may save 13450 segments, with super long running of 530 hours each segments.

 3. Program loop can be 32000 times, tiny loop 32000 times;

 4. Large built-in storage, can store 90 - day calendar data, historical curve (when the sample is 1 min)

 5. Support English, Chinese and so on.

4. Specifications

5. About thermal shock test chamber:

6.Tradeshow
