| Temp. Range: | -70~150 | Humidity Constancy: | ±0.5% |
|---|---|---|---|
| Pressur Range: | Common Pressure ~1KPA | Interiol Material: | Stainless Steel Plate |
| Cooling Mode: | Water Cooled | Interiol Size: | 100*100*100 |
| High Light: | altitude testing chamber,portable altitude chamber |
||

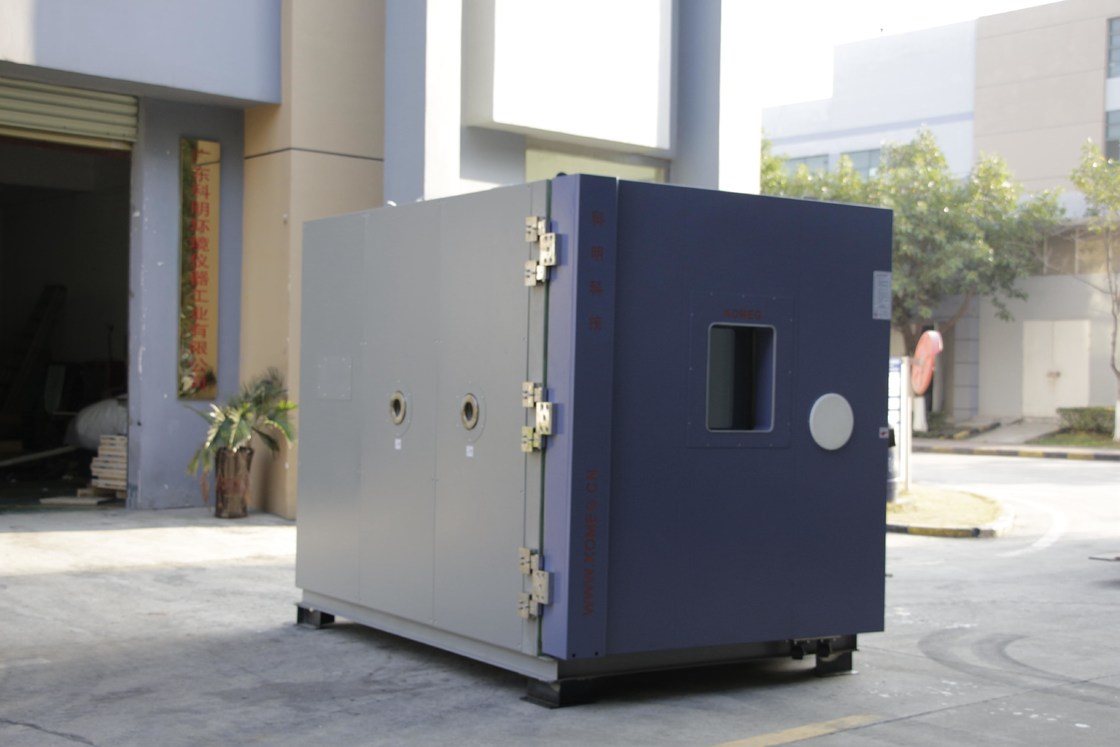

Standard Battery Testing Machine for Low Pressure Test
This product is widely used in industrial and mining enterprises, universities, scientific research and various laboratories, and other items stored under vacuum or ceramic, glue, paints, plastic toys, resin crafts, candles, printer cartridges and glass products industry off the vacuum bubble.
1.Streamline arc design pioneered by the shell is cold-rolled steel plate electrostatic spray;
2. Liner are made of stainless steel, semi-circular square design is more convenient to clean;
3.Tightness of the chassis door completely arbitrary regulation by the user, the overall shape of the silicone rubber door seals, to ensure high vacuum chamber;
4. Rectangular structure of the local studio, so that the maximum effective volume, with steel doors, bullet-proof double glass door, so that training materials allow users to observe the studio at a glance.
KOMEG Corresponding standard:
GB/T2423.1-2001 test A: Low temperature test
GB/T2423.2-2001 test B: High temperature test
GB/T2423.21-2001 test M: low pressure test
| Specifications | KOMEG | ||||
| Model | KU-504L | KU-1000L | KU-504S | KU-1000S | |
| Inner Size (D*W*H)mm | 800*700*900 | 1000*1000*1000 | 800*700*900 | 1000*1000*1000 | |
| Capacity(KW) | 11 | 15 | 16 | 18 | |
| Chamber Volume(L) | 504 | 1000 | 504 | 1000 | |
| Performance | Temp range | -40℃~+150℃ | -70℃~+150℃ | ||
| Temp constancy | ±0.5% | ||||
| Temp deviation | ≥100℃, ±3.0℃(at constant pressure with empty load) | ||||
| <100℃, ±2.0℃(at constant pressure with empty load) | |||||
| Cooling rate | 0.7℃~1.0℃/min(Overall average) | ||||
| Pressure range | Constant pressure ~1kPa | ||||
| Pressure constancy | When ≥40kPa, ±2kPa, 4kPa~40pKa ±0.5kPa, when≤4kPa, ±0.1kPa | ||||
| Depressurization rate | Constant pressure~1kPa≤30mins(Normal temp) | ||||
| Pressure recovery rate | 10kPa/Min(adjustable) | ||||
| Material | Exterior material | Cold-rolled steel sheet(Rust proof&Plastic Spray treated)/Stainless Steel plate | |||
| Interior material | Stainless steel(SUS304) | ||||
| Pressurized parts | High quality steel plate(Rust proof & Plastic spray treated) | ||||
| Insulation material | High quality glass wool | ||||
| Cooling System | Compressor | Semi-Hermetic Compressor | |||
| Cooling Mode | Water cooled | ||||
| Temp regulating method | Balanced Temperature & Humidity Control System (BTHC) | ||||
| Pump | Rotary vane type vacuum pump | ||||
| Heater | Iron-chrome wire heater | ||||
| Sight window | Circular viewing glass incorporating heat generator | ||||
| Temp Sensor | Pt-100 | ||||
| Controller | Touch Screen Controller | ||||
| Safety Devices | Over pressure, over heat and over current protection for compressor, over temp. protection, over load protection for blower, Hydraulic and Water lack Protection, leakage protection, phase-lack protection, Pump failure alarm | ||||
| Standard Accessory | Sight window, Cable Port( 1 located on the left side), Baffle, Baffle frame*2 | ||||
| Power | AC380V/50Hz, 3Phase 5 wires+ Ground Wire. | ||||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
|||||
Altitude chamber working principle
Temperature and pressure range chart
* Inquiry and consulting support.
* Sample testing support.
* Visiting our factory is highly welcomed.
* If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
