Payment & Shipping Terms:
|Product Name:||Altitude Test Chambers||Application:||High Low Temperature/ Altitude Test|
|Inner Size (D*W*H)::||2000*2000*2000mm||Emperature Range:||-70℃~+150℃|
|Pressure Constancy:||When ≥40kPa, ±2kPa, 4kPa~40pKa ±0.5kPa, When≤4kPa, ±0.1kPa||Payment Term:||TT|

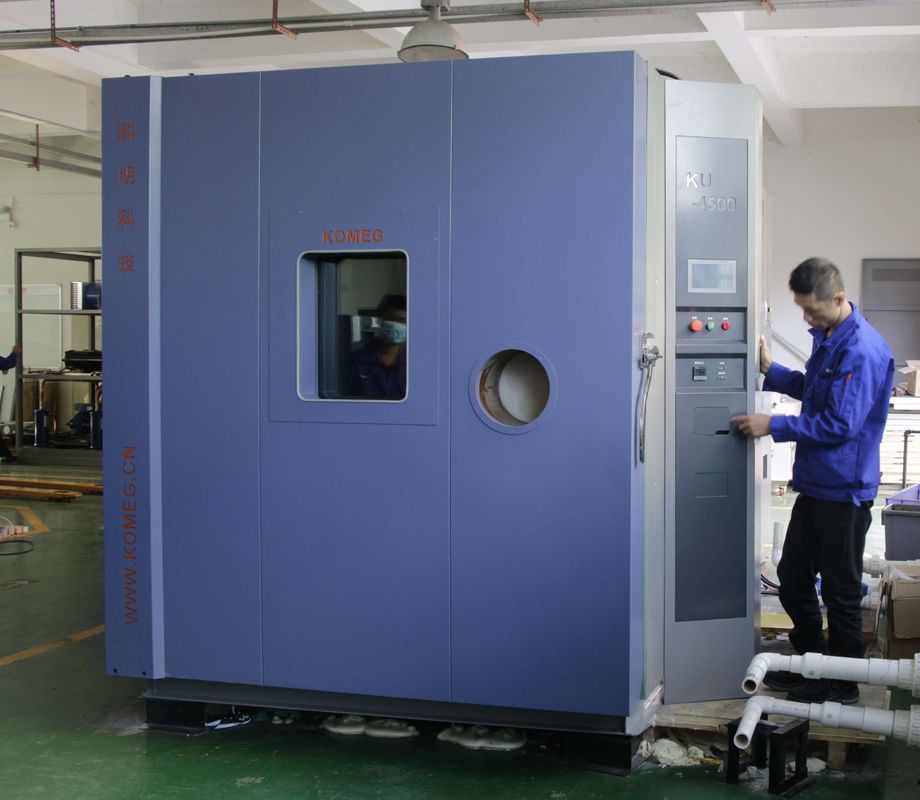

High Low Temperature/ Altitude Test Chamber for test lithium ion batteries
Simulating altitude/temperature for combined environmental testing
high and low temperature low pressure chamber for aviation, aerospace, electronics, defense, scientific research, automobile and motorcycle industries such as electrical products, materials, components, equipment, temperature, humidity, low air pressure and other single or complex environment test under simulated conditions, in order to develop the test under environmental conditions of performance, conduct an analysis and evaluation.
Applications for the Altitude Simulation System:
Gasoline Engine R&D
Diesel Engine R&D
Cold Start Testing
Fuel Economy Testing
Aircraft Engine R&D
Induction System R&D
Turbo Charger and Aftercooler R&D
Steady and Transient State Testing
● Temperature range from -70 to 170℃
● Altitude range ground to 100,000 feet
● External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating system.
● Adopts international brand of imported parts for cooling system to improve operation reliability
● High precision and stable performance with touch screen controller, friendly Man-Machine interface.
● Multiple layers of safety device to easy maintenance.
● Viewing window and cable ports available
● Vacuum pump sized for climb/dive rate required by application
Standards Implement and Met
GB11159-89 GB10590-89 GB15091-89
GB/T2423.25-1992 GB/T2423.26-1992 GJB150.0-86
|Inner Size (D*W*H)mm||2000D*2000W*2000H|
|Temp deviation||≥100ºC, ±3.0ºC(at constant pressure with empty load)|
|<100ºC, ±2.0ºC(at constant pressure with empty load)|
|Cooling rate||0.7ºC~1.0ºC/min(Overall average)|
|Pressure range||Constant pressure ~1kPa|
|Pressure constancy||When ≥40kPa, ±2kPa, 4kPa~40pKa ±0.5kPa, when≤4kPa, ±0.1kPa|
|Depressurization rate||Constant pressure~1kPa≤30mins(Normal temp)|
|Pressure recovery rate||10kPa/Min(adjustable)|
|Material||Exterior material||Cold-rolled steel sheet(Rust proof&Plastic Spray treated)/Stainless Steel plate|
|Interior material||Stainless steel(SUS304)|
|Pressurized parts||High quality steel plate(Rust proof & Plastic spray treated)|
|Insulation material||High quality glass wool|
|Cooling System||Compressor||Semi-Hermetic Compressor|
|Cooling Mode||Water cooled|
|Temp regulating method||Balanced Temperature & Humidity Control System(BTHC)|
|Pump||Rotary vane type vacuum pump|
|Heater||Iron-chrome wire heater|
|Sight window||Circular viewing glass incorporating heat generator|
|Controller||Touch Screen Controller|
|Safety Devices||Over pressure, over heat and over current protection for compressor, over temp. protection, over load protection for blower,Hydraulic and Water lack Protection, leakage protection, phase-lack protection, Pump failure alarm|
|Standard Accessory||Sight window, Cable Port( 1 located on the left side), Baffle, Baffle frame*2|
|Power||AC380V/50Hz, 3Phase 5 wires+ Ground Wire.|
|Note: 1. We reserve the right to change specifications without prior notice; 2. Customized sizes and configurations available|
Overall structure, new test chamber designed very easy to operation and maintenance:
Water and electricity system separation design;
External humidifying design;
Three levels of overheat protection, easy access for refrigeration servicing, etc.
machines for sheet metal processing;
Tecumseh, Bock Compressor;
High quality electronic components (e.g. DANFOSS, ALCO, RANCO, SPORLAN, SAGINOMIYA, Schneider solenoid valve)
Why Choose KOMEG?
Over 26 Years' Experience

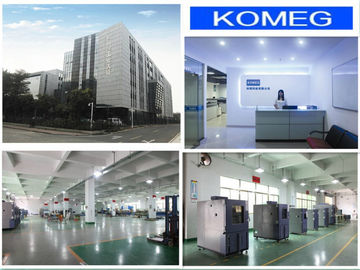

Komeg has been the brand of Komeg Technology Industrial since 1990. We manufacture environmental simulation test equipment for quality-conscious customers. Our factory is located in Dongguan, covering an area of 5,000 square meters, with over 52 employees including 26 R&D engineers.
We also have offices in Shenzhen and Songshan Lake National Hi-Tech Industrial Development Zone. Our product range includes programmable temperature and humidity chambers, thermal shock test chambers, walk-in chambers, burn-in room and aging test chambers, drying ovens, salt spray testers, as well as custom-made products for laboratories, research institutions, electronic communications and military enterprises.
Better Idea, Design and Quality
We strive for continuous innovation, releasing no less than five new designs each year. Our strong R&D team and skilled workers is the key to our success. No matter it is standard or custom-made project, we have rich experience in handling such so that customers worldwide can benefit more when working with us. And to ensure your specific test standards are met, the key components and parts we are using are imported famous brands. That's why , Konica Minolta, Senko, Midea, TCL and Huawei are among our long-term clients.
Establish a cultural KOMEG, Build a century brand.
Quality conscious enterprise for quality conscious people.
We'd rather explain for the price than apologize for the Quality life long
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
Experienced and skilled staff;
High precision & reliability performance;
Prompt after-sale service;
Persist on the philosophy all the time
Besides this, we have a lot of other chamber for your reference:
3-zone/ 2-zone Thermal Shock Chamber
Walk-in Constant Temp. And Humidity Chamber
Rapid Temp. Change Chamber
Precise Drying Test Chamber
Temperature/ humidity/ vibration three integrated Chamber
Precise Drying Chamber
Vacuum oven/ no oxidation oven
Air Exchange Type Aging Oven
Salt spray Chamber
Two wing Drop Tester
Vibration Testing Machine( mechanical and electromagnetic)
