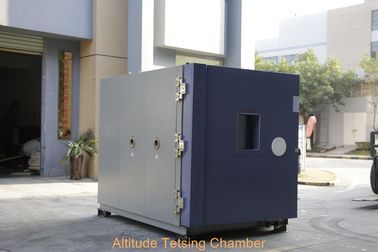

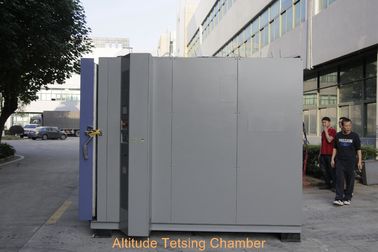

High Efficiency Laboratory Altitude Test Chamber / High Pressure Test Chamber

China High Efficiency Laboratory Altitude Test Chamber / High Pressure Test Chamber supplier
High Efficiency Laboratory Altitude Test Chamber / High Pressure Test Chamber supplier High Efficiency Laboratory Altitude Test Chamber / High Pressure Test Chamber supplier

Large Image :  High Efficiency Laboratory Altitude Test Chamber / High Pressure Test Chamber

Product Details:

Place of Origin: Dongguan, Guangdong, China
Brand Name: KOMEG
Certification: CE,UL
Model Number: ESS-5184S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Strong Plywood Case
Delivery Time: 30 days upon on your deposit
Supply Ability: 1000 SETS /YEAR
Contact Now
Detailed Product Description
Temp. Range: -70~150 Humidity Constancy: ±0.5%
Pressur Range: Common Pressure ~1KPA Interiol Material: Stainless Steel Plate
Cooling Mode: Water Cooled Interiol Size: 100*100*100
Recovery Time: Within 5 Min

Laboratory high pressure test chamber Altitude Test Equipment

7 Application.jpg

High low temperature low pressure combined the function of temperature humidity with altitude.User not only simulate different alititude,but also control the other environment condition.Under this situation,test chamber could reproduce the real situation that prouct probably will meet in different altitude.

2 Features.jpg

  • High efficiency Temperite Type Oil Separator
  • TEMI-300 Programmable LCD Controller
  • RS-485 Communication Port/Connector
  • Vane Type Sirocco, L134, Fan
  • SUS #304 Stainless Steel, PT 100 Ω, Temp-Hum Sensors (2)
  • Fin Heat Disperse-Stainless Steel Heater
  • PID controlled-Stainless Steel Humidifier

Optional parts:

Communication interface RS232 or RS485, logger, micro printer, remote temperature and humidity control system (including printers, communications software, computer), mobile casters.



Structure:

Overall structure, new test chamber designed very easy to operation and maintenance:

Water and electricity system separation design;

External humidifying design;

Three levels of overheat protection, easy access for refrigeration servicing, etc.



Material:

machines for sheet metal processing;

Tecumseh, Bock Compressor;

High quality electronic components (e.g. DANFOSS, ALCO, RANCO, SPORLAN, SAGINOMIYA, Schneider solenoid valve)



Reference Standards FOR high pressure test chamber :
GB/T 2423.25-2008 GB/T 2423.26-2008 GB/T 150.2A-2009 GB/T10590-2006



1 Specification.jpg

Specifications KOMEG
Model KU-504L KU-1000L KU-504S KU-1000S
Inner Size (D*W*H)mm 800*700*900 1000*1000*1000 800*700*900 1000*1000*1000
Capacity(KW) 11 15 16 18
Chamber Volume(L) 504 1000 504 1000
Performance Temp range -40℃~+150℃ -70℃~+150℃
Temp constancy ±0.5%
Temp deviation ≥100℃, ±3.0℃(at constant pressure with empty load)
<100℃, ±2.0℃(at constant pressure with empty load)
Cooling rate 0.7℃~1.0℃/min(Overall average)
Pressure range Constant pressure ~1kPa
Pressure constancy When ≥40kPa, ±2kPa, 4kPa~40pKa ±0.5kPa, when≤4kPa, ±0.1kPa
Depressurization rate Constant pressure~1kPa≤30mins(Normal temp)
Pressure recovery rate 10kPa/Min(adjustable)
Material Exterior material Cold-rolled steel sheet(Rust proof&Plastic Spray treated)/Stainless Steel plate
Interior material Stainless steel(SUS304)
Pressurized parts High quality steel plate(Rust proof & Plastic spray treated)
Insulation material High quality glass wool
Cooling System Compressor Semi-Hermetic Compressor
Cooling Mode Water cooled
Temp regulating method Balanced Temperature & Humidity Control System (BTHC)
Pump Rotary vane type vacuum pump
Heater Iron-chrome wire heater
Sight window Circular viewing glass incorporating heat generator
Temp Sensor Pt-100
Controller Touch Screen Controller
Safety Devices Over pressure, over heat and over current protection for compressor, over temp. protection, over load protection for blower, Hydraulic and Water lack Protection, leakage protection, phase-lack protection, Pump failure alarm
Standard Accessory Sight window, Cable Port( 1 located on the left side), Baffle, Baffle frame*2
Power AC380V/50Hz, 3Phase 5 wires+ Ground Wire.
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available


3 Products details.jpg



Altitude chamber working principle

Altitude chamber working principle.jpg



Temperature and pressure range chart


Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* Visiting our factory is highly welcomed.

After-Sales Service

* If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
