Product Details:
Payment & Shipping Terms:
|
Temp. Range: | -70~150 | Humidity Constancy: | ±0.5% |
---|---|---|---|
Pressur Range: | Common Pressure ~1KPA | Interiol Material: | Stainless Steel Plate |
Cooling Mode: | Water Cooled | Interiol Size: | 100*100*100 |
Compressor: | Semi-hermetic Compressor | ||
High Light: | altitude testing chamber,portable altitude chamber |

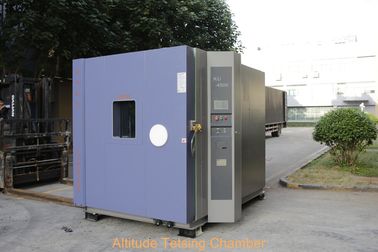

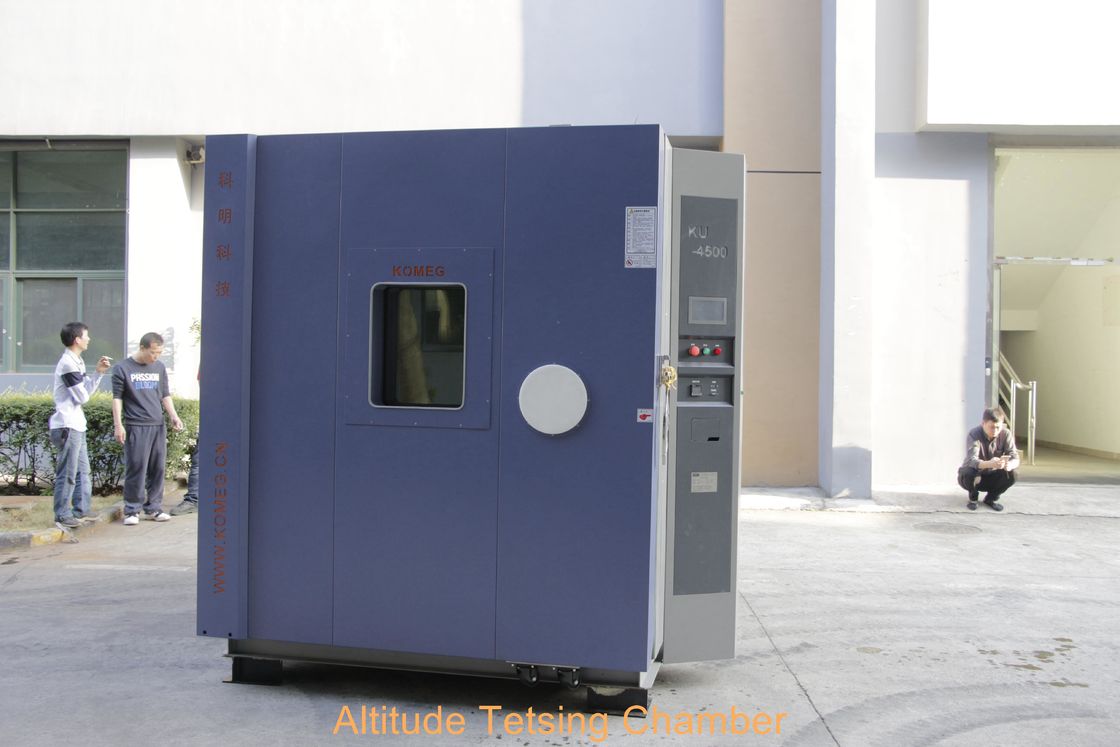

380V 60/50Hz high altitude low pressure test equipment
380V 60/50Hz high altitude low pressure test equipment price with reliable storage and transportation climate of high altitude, sky, arospace, plateau area and low pressure high low temperature, it is applied to defense industry, aerospace industry automation components, auto parts, electronics, electrical components, plastic, chemical industry, pharmaceutical industry, food industry and other related products.
Main features of our High altitude test chamber:
1. 5.6" LCD touch screen color controller, Korea Samvontech brand.
2. 120 patterns*1200 steps, circulation Setting: Max. 9999 cycles.
3. PID+SSR / SCR controller.
4. RS-232 / RS-485 / USB / Ethernet / RJ45 communication interface.
5. Pressure range: atmosphere pressure to 0.5KPa
6. Inner cable port of 50mm/100 mm can meet the requiremnt of power- on test for user's product.
7. SUS#304 stainless steel plate inner chamber.
8.1 year free parts warranty, extended warranty is also available.
Structure:
Overall structure, new test chamber designed very easy to operation and maintenance:
Water and electricity system separation design;
External humidifying design;
Three levels of overheat protection, easy access for refrigeration servicing, etc.
Material:
machines for sheet metal processing;
Tecumseh, Bock Compressor;
High quality electronic components (e.g. DANFOSS, ALCO, RANCO, SPORLAN, SAGINOMIYA, Schneider solenoid valve)
Test standards our high altitude test chamber comply with:
Specifications | KOMEG | ||||
Model | KU-504L | KU-1000L | KU-504S | KU-1000S | |
Inner Size (D*W*H)mm | 800*700*900 | 1000*1000*1000 | 800*700*900 | 1000*1000*1000 | |
Capacity(KW) | 11 | 15 | 16 | 18 | |
Chamber Volume(L) | 504 | 1000 | 504 | 1000 | |
Performance | Temp range | -40℃~+150℃ | -70℃~+150℃ | ||
Temp constancy | ±0.5% | ||||
Temp deviation | ≥100℃, ±3.0℃(at constant pressure with empty load) | ||||
<100℃, ±2.0℃(at constant pressure with empty load) | |||||
Cooling rate | 0.7℃~1.0℃/min(Overall average) | ||||
Pressure range | Constant pressure ~1kPa | ||||
Pressure constancy | When ≥40kPa, ±2kPa, 4kPa~40pKa ±0.5kPa, when≤4kPa, ±0.1kPa | ||||
Depressurization rate | Constant pressure~1kPa≤30mins(Normal temp) | ||||
Pressure recovery rate | 10kPa/Min(adjustable) | ||||
Material | Exterior material | Cold-rolled steel sheet(Rust proof&Plastic Spray treated)/Stainless Steel plate | |||
Interior material | Stainless steel(SUS304) | ||||
Pressurized parts | High quality steel plate(Rust proof & Plastic spray treated) | ||||
Insulation material | High quality glass wool | ||||
Cooling System | Compressor | Semi-Hermetic Compressor | |||
Cooling Mode | Water cooled | ||||
Temp regulating method | Balanced Temperature & Humidity Control System (BTHC) | ||||
Pump | Rotary vane type vacuum pump | ||||
Heater | Iron-chrome wire heater | ||||
Sight window | Circular viewing glass incorporating heat generator | ||||
Temp Sensor | Pt-100 | ||||
Controller | Touch Screen Controller | ||||
Safety Devices | Over pressure, over heat and over current protection for compressor, over temp. protection, over load protection for blower, Hydraulic and Water lack Protection, leakage protection, phase-lack protection, Pump failure alarm | ||||
Standard Accessory | Sight window, Cable Port( 1 located on the left side), Baffle, Baffle frame*2 | ||||
Power | AC380V/50Hz, 3Phase 5 wires+ Ground Wire. | ||||
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
Altitude chamber working principle
Temperature and pressure range chart
With our high altitude test chamber, you can:
* If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
