| Products Name: | 3-zone Thermal Shock Tester | Material: | Stainless Steel Plate (SUS304) |
|---|---|---|---|
| Application: | Lab,industry | Test. Chamber: | -40 °C~ +150°C |
| High Temp. Chamber: | +60~+200C | Low Temp. Chamber: | -55~10C |
| Refrigeration System: | Water Colded | Power Supply: | AC 3 Phase 380V 60/50Hz |
| High Light: | thermal shock chamber,environmental testing chambers |
||

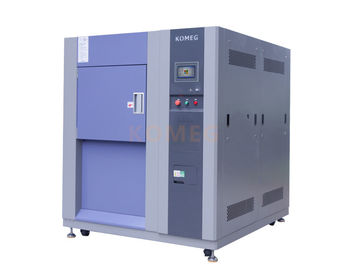

3-zone Environmental Thermal Shock Testing Chamber For Electronics Industrial
3-zone Environmental Thermal Shock Testing Chamber test method with the specimen under static state completely is presently used for the test and research of electronic products as well as for the large selection of semiconductor production lines, which can largely save the test expense for the consumptive materials. It is of fast operation and high reliability. It is the high performance test machine researched and developed by our company with great concentration and full effort for many years, which can provide you with the long-term and reliable test tool.
1.3-zone design: High temperature zone, cold temperature zone, and testing zone.
2. The test specimens under test are stationary in the testing zone.
3. Touch-control operation interface for ease of use.
4. Max. 999H and max. 9999 cycles for high or low temperature shock for thermal shock test chamber.
5. Automatic cycling shock or/and manual selective shock are available
6. Water cooled, binary cooling system for quick cooling effect.
| 3 Zone Thermal Shock Test Chamber | ||||||||
| Specifications | Note:1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
|||||||
| Model | KTS-A Series | |||||||
| 72A | 100A | 150A | 200A | 252A | 300A | 480A | ||
| Interior size | W(mm) | 450 | 500 | 600 | 670 | 700 | 800 | 800 |
| H(mm) | 400 | 450 | 500 | 600 | 600 | 600 | 800 | |
| D(mm) | 400 | 450 | 500 | 500 | 600 | 650 | 750 | |
| Exterior size | W(mm) | 1490 | 1540 | 1640 | 1720 | 1750 | 1850 | 1850 |
| H(mm) | 1790 | 1840 | 1890 | 2000 | 2000 | 2000 | 2200 | |
| D(mm) | 1600 | 1700 | 1830 | 1850 | 1930 | 1980 | 2500 | |
| Test weight(KG) | 5 | 10 | 12 | 15 | 18 | 20 | 20 | |
| Low Temp. chamber | -55ºC~-10ºC | |||||||
| Pre-heat time | +20ºC~-55ºC ,Within 60 min | |||||||
| Test. chamber | -40ºC~+150ºC | |||||||
| High Temp. chamber | +60ºC~+200ºC | |||||||
| Pre-heat time | +60ºC~+200ºC ,Within 20 min | |||||||
| Recovery time | High-Temp Exposure 30 min | |||||||
| Low-Temp Exposure 30 min | ||||||||
| Recovery time within 5 min | ||||||||
| Safety device | No fuse breaker, over pressureover heat and over current protection for compressor,over temperature protection, over load protection for blower, dry heat protection | |||||||
| Standard accessory | Cable port(portΦ50mm)*1, shelves*2 | |||||||
| Interior material | Stainless steel plate(SUS 304) | |||||||
| Exterior material | Baked painting steel or stainless steel(SUS304) | |||||||
| Insulation material | Rigid polyurethane Foam+glass fiber wool | |||||||
| Refrigeration system | Water Cooled | |||||||
| Semi-hermetic compressor, cascade refrigeration system, CFC free refrigerant(HFC-507 and HFC-23) | ||||||||
| Controller | Panel:7-inch LCD Touch panel,Chinese or English display selectable | |||||||
| Operation model:Program or fix point running | ||||||||
| Memory capacity:120programs,1200steps,all repeat 999cycles,part repeat 99 cycles. | ||||||||
| Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit | ||||||||
| Input:Temp.:pt-100 Humidity:pt-100 or ~5V DCV | ||||||||
| Ambient Temp. | +5ºC~+35ºC | |||||||
| Power | AC 380±10%50Hz ,3 phase 4 wires +Ground Wires | |||||||
Standards Met and Implemented:
GB/T2423.1.2
GB10592-89
GJB150
Packing detail
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special requirments.
