Product Details:
Payment & Shipping Terms:
|
Products Name: | Temperature Altitude Test Chamber | Application: | Products,parts And Materials |
---|---|---|---|
Material: | Stainless Steel Plate (SUS304) | Refrigeration System: | Water Cooled |
Test. Chamber: | -70 °C~ +150°C | Power Supply: | AC 380V/50Hz ,3 Phase 5 Wires+Ground Wires |
High Light: | high altitude chamber,portable altitude chamber |

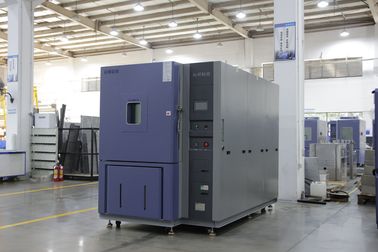

Machinery Equipment Temperature Altitude Testing Chamber Used In Industrial
KOMEG Temperature Altitude Testing Chamber used for testing high temperature,low temperature,height,low and high cycle and temperature altitude test for products,parts and materials.The chamber can be used for the test of heat dissipation test sample and non heat dissipation test sample at the high and low temperature test.As to the test of heat dissipation test samples,the heating power should not exceedthe refrigerating capacity of chamber.As a dynamic value,refrigerating capacity change with temperature change.
Model | KU- | |||||||
504L | 1000L | 504S | 1000S | |||||
Interior size | D(mm) | 800 | 1000 | 800 | 1000 | |||
W(mm) | 700 | 1000 | 700 | 1000 | ||||
H(mm) | 900 | 1000 | 900 | 1000 | ||||
Temp. range | -40ºC~+150ºC | -70ºC~+150ºC | ||||||
Temp constancy | ±0.5% | |||||||
Cooling rate | 0.7ºC~+1ºC/min(Overall average) | |||||||
Pressure range | Constant pressure~1kPa | |||||||
Depressurization rate | Constant pressure~1kPa≤30mins(Normal temp) | |||||||
Temp regulating method | ||||||||
Balanced Temperature & Humidity Control System (BTHC) | ||||||||
Safety device | Over pressure,over heat and over current protection for compressor,over temp. protection,over load protection for blower,Hydraulic and Water lack Protection,leakage protection,phase-lack protection,Pump failure alarm | |||||||
Standard accessory | Sight window,Cable Port (1 located on the left side),Baffle,Baffle frame*2 | |||||||
Interior material | Stainless steel plate(SUS 304) | |||||||
Exterior material | Cold--rolled steel sheet/Stainless Steel plate | |||||||
Insulation material | High quality glass wool | |||||||
Controller | Touch screen controller | |||||||
Power | AC 380V/50Hz ,3 phase 5 wires +Ground Wires |
Structure Features
Wall material:Top-grade Carbon Steel Plate,Surface electrostatic color Spray processing
Inner wall material:Stainless Steel Plate SUS304
Body insulation material:Rigid polyurethane Foam + glass fiber
Door insulation material:Rigid Polyurethane Foam + Glass fiber
