Low Pressure Simulation High Altitude Testing Chamber For Aviation -70ºC - +150ºC

China Low Pressure Simulation High Altitude Testing Chamber For Aviation -70ºC - +150ºC supplier
Low Pressure Simulation High Altitude Testing Chamber For Aviation -70ºC - +150ºC supplier Low Pressure Simulation High Altitude Testing Chamber For Aviation -70ºC - +150ºC supplier Low Pressure Simulation High Altitude Testing Chamber For Aviation -70ºC - +150ºC supplier

Large Image :  Low Pressure Simulation High Altitude Testing Chamber For Aviation -70ºC - +150ºC

Product Details:

Place of Origin: Dongguan, Guangdong, China
Brand Name: KOMEG
Certification: CE,UL
Model Number: ESS-5184S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Strong Plywood Case
Delivery Time: 30 days upon on receive your deposit
Supply Ability: 1000 SETS /YEAR
Contact Now
Detailed Product Description
Temp. Range: -70~150 Humidity Constancy: ±0.5%
Pressur Range: Common Pressure ~1KPA Interiol Size: 100*100*100
Recovery Time: Within 5 Min

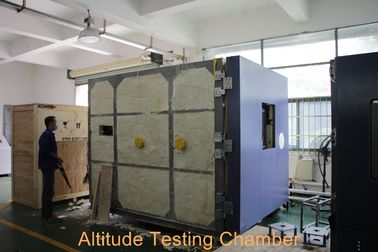

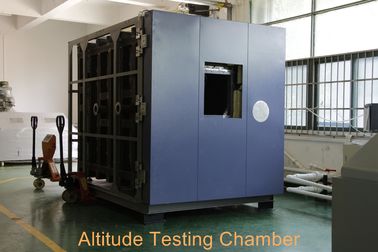

     High altitude low pressure simulation test chamber



        Description

       High altitude low pressure simulation test chamber specification reliable storage and transportation climate of high altitude, sky, arospace, plateau area and low pressure high low temperature, it is applied to defense industry, aerospace industry automation components, auto parts, electronics, electrical components, plastic, chemical industry, pharmaceutical industry, food industry and other related products.



specifications
Model KU-4500S
Inner Size (D*W*H)mm 2000D*2000W*2000H
Capacity(KW) 15
Chamber Volume(L) 8000
Performance Temp range -70ºC~+150ºC
Temp constancy ±0.5%
Temp deviation ≥100ºC, ±3.0ºC(at constant pressure with empty load)
<100ºC, ±2.0ºC(at constant pressure with empty load)
Cooling rate 0.7ºC~1.0ºC/min(Overall average)
Pressure range Constant pressure ~1kPa
Pressure constancy When ≥40kPa, ±2kPa, 4kPa~40pKa ±0.5kPa, when≤4kPa, ±0.1kPa
Depressurization rate Constant pressure~1kPa≤30mins(Normal temp)
Pressure recovery rate 10kPa/Min(adjustable)
Material Exterior material Cold-rolled steel sheet(Rust proof&Plastic Spray treated)/Stainless Steel plate
Interior material Stainless steel(SUS304)
Pressurized parts High quality steel plate(Rust proof & Plastic spray treated)
Insulation material High quality glass wool
Cooling System Compressor Semi-Hermetic Compressor
Cooling Mode Water cooled
Temp regulating method Balanced Temperature & Humidity Control System(BTHC)
Pump Rotary vane type vacuum pump
Heater Iron-chrome wire heater
Sight window Circular viewing glass incorporating heat generator
Temp Sensor Pt-100
Controller Touch Screen Controller
Safety Devices Over pressure, over heat and over current protection for compressor, over temp. protection, over load protection for blower,Hydraulic and Water lack Protection, leakage protection, phase-lack protection, Pump failure alarm
Standard Accessory Sight window, Cable Port( 1 located on the left side), Baffle, Baffle frame*2
Power AC380V/50Hz, 3Phase 5 wires+ Ground Wire.
Note: 1. We reserve the right to change specifications without prior notice; 2. Customized sizes and configurations available

  • With our high altitude test chamber, you can:

  • Shorten product development period
  • Increase the confidence and loyalty from your users.
  • Ensure product quality and reliability
  • Forecase life expectancy
  • Reduce costs
  • Increase profitability
  • Reduce after sales service
  •

    Test standards our high altitude test chamber comply with:

  • GB/T 10590-2006 low temperature low pressure test
  • MIL-STD883 Method 1004.2 high low temperature cycle test
  • GB10592-89 Technical conditions for high and low temperature testing box
  • GB/T2423.1-2001 Low-temperature testing methods
  • IEC60068-2-1.1990 Low-temperature testing method
  • IEC60068-2-2.1974 High-temperature testing method
  • GJB150.3 High-temperature testing
  • GJB150.4 Low-temperature testing
  • GB/ T 2423.21- 1991 Test M low pressure test method
  • GB/ T 2423.26- 1992 Test Z BM high temperature/low pressure test method
  • MIL-STD810 Method 507.2
  •
  • Main Features of our high altitude test chamber:
  • 1. 5.6" LCD touch screen color controller, Korea Samvontech brand.

    2. 120 patterns*1200 steps, circulation Setting: Max. 9999 cycles.

    3. PID+SSR / SCR controller.

    4. RS-232 / RS-485 / USB / Ethernet / RJ45 communication interface.

    5. Pressure range: atmosphere pressure to 0.5KPa

    6. Inner cable port of 50mm/100 mm can meet the requiremnt of power- on test for user's product.

    7. SUS#304 stainless steel plate inner chamber.

    8.1 year free parts warranty, extended warranty is also available.







Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* Visiting our factory is highly welcomed.

After-Sales Service

* If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
