Product Details:
Payment & Shipping Terms:
|
| Temperature Range: | -65℃~+85℃ | Standard: | CE, IEC, MIL |
|---|---|---|---|
| Humidity Range: | 25%~98%RH | Product Name: | Environmental Test Chamber |
| Warranty: | 1 Years | ||
| Highlight: | walk in environmental chamber,walk in climatic chamber |
||

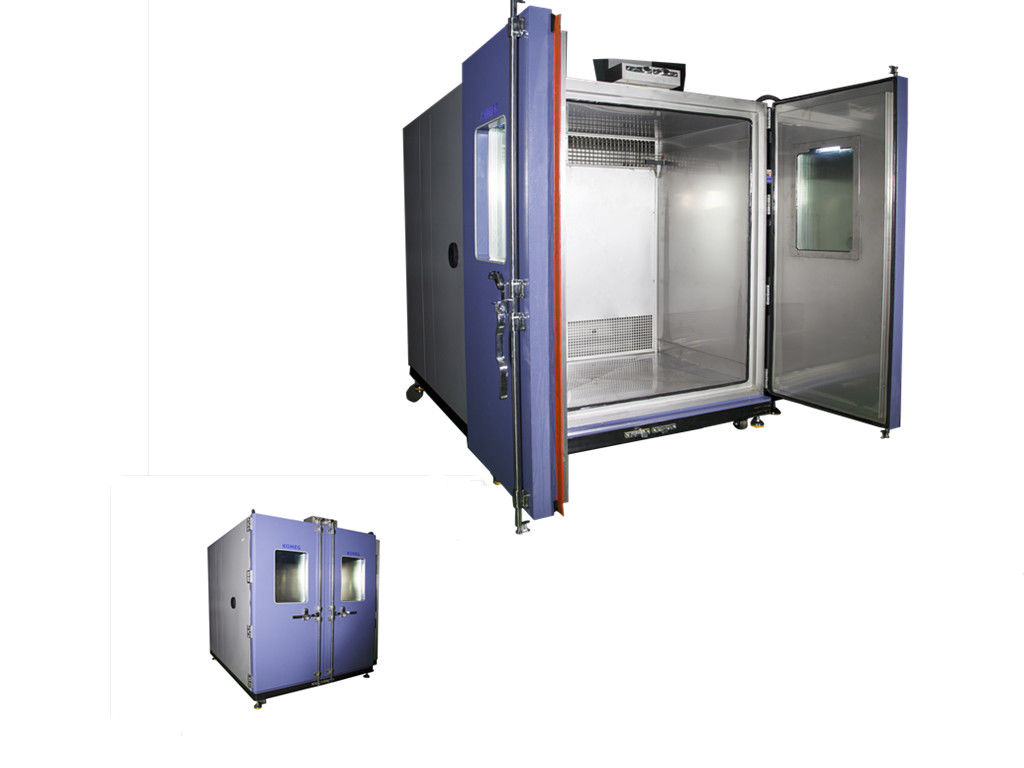

A KOMEG Walk-In Chamber serves as a test site for large components, assemblies, and finished products. KOMEG manufactures both Panel Walk-In Chambers and Solid Walk-In Chambers and can be configured as a temperature chamber or a temperature humidity chamber.
A Panel Walk-In Chamber is made from lightweight insulated panels for fast and easy installation. Usually for electronics temperature aging, like recharger, PCBA, Battery, LCD, scanners, monitors, LED, biological equipment,etc. Outside banding helps prevent leaking and keeps moisture out of the Walk-In Chamber and workspace temperatures steady.
Solid Walk-In Chambers are custom built to accommodate almost any size. They feature welded walls creating an environmental room for applications requiring controlled temperature and humidity testing exceeding 85°C. Typically, for ease of installation, a Solid Walk-In Chamber works best in new construction buildings, areas with extremely large doors, or rooms where outside walls can be easily removed.
Specifications
Walk in stability test machine
1. Size and temperature can be customized.
2. RS-232 Interface, optional USB & Ethernet
3. With viewing Window & Interior Light.
4. Oversea installation is available upon request.
Technical parameters:
| Model No | KMHW | |||||
| Inner chamber size W×H×D(mm) | Please refer to size chart, customization service available ( ^_^ ) | |||||
| Exterior chamber size W×H×D(mm) | ||||||
| Temperature Range | 0℃, -20℃, -40℃, -60℃~+70℃(+80℃) | |||||
| Humidity Range | 30~90%RH | |||||
Performance |
Temp.&Humi fluctuation | ±0.3℃, ±2.5%RH | ||||
| Temp.&Humi.uniformity | ±2℃, ±5%RH | |||||
| Temp.&humi. Resolution | 0.1℃, 0.1%RH/0.01, 0.1%RH | |||||
| Heat up time (20℃~high temp.) | ℃ | 80 | ||||
| minutes | 50 | |||||
| Cool down time (20℃~low temp.) | ℃ | 0 | -20 | -40 | ||
| minutes | 55 | 70 | 100 | |||
| Material | Exterior chamber material | Stainless steel plate+Powder Coated | ||||
| Interior chamber material | SUS#304 stainless steel plate | |||||
| Insulation | PU & Fiberglass wool | |||||
| System | Wind Circulation | Sirocco fan | ||||
| Heating system | SUS#304 stainless steel high-speed heater | |||||
| Humidifying | Surface evaporating system | |||||
| Cooling | Imported compressor, finned type evaporator, air-cooling condenser | |||||
| Dehumidifying | ADP critical dewpoint cooling/dehumidifying method | |||||
| Controller | Digital electronic indicators + S.S.R.With PID automatic calculation capability | |||||
| Other Components | Vacuum glass inspection window, cable port(60mm), control status indicator lights, chamber lamp, loading shelves (2pcs for free) | |||||
| Safety Devices | Overheating circuit-breaker, compressor overload protection, control system overload protection, humidifying system overheating protection,breakdown indicator light | |||||
| Power supply | AC 3 phase 380V 60/50Hz | |||||
Features:
1. Stainless steel chamber, semicircular arcs at corners for easy cleaning.
2. Even air circulating system.
3. R404a and R23 refrigerant, 2 imported compressors and fan motor.
4. Over temperature and temperature difference alarms.
5. Microprocessor controller, LCD touch screen display.
6. Balance temperature and humidity adjusting system.
7 Independent audible and visible temperature-limiting alarm system ensures experiments run safely (Optional)
8. Operation data can be downloaded via interfaces such as RS-232/485, USB, ethernet, etc
9. Customization of different sizes are avaialble.
Besides walk in stability test machine, our business range also covers:
(1) Temperature/ humidity test series: Temperature humidity chamber, Thermal shock chamber, High altitude low pressure chamber, Ramp rate temperature chamber, etc
(2) Aging test series: Industrial hot air oven, Dust-free hot oven, Vacuum drying oven, Air ventilation aging test chamber, Steam aging test chamber, Ozone test chamber, Burn-in aging test room, Salt spray chamber, etc
(3) Weather simulation tes series: Rain spray test chamber, dust test chamber, Xenon lamp aging test chamber, UV aging test chamer
