| Products Name: | 2 ZONE Thermal Shock Test Chamber | Temperature Range: | -55 °C~ 150°C |
|---|---|---|---|
| Exposure Time: | 30 Mins | Recovery Time: | 5 Mins |
| Cool Model: | Water Cooled | Compressor: | Bock |
| High Light: | thermal shock chamber,environmental testing chambers |
||
Air To Air Thermal Shock Chambers , Environmental Test Chamber For Automotive Testing

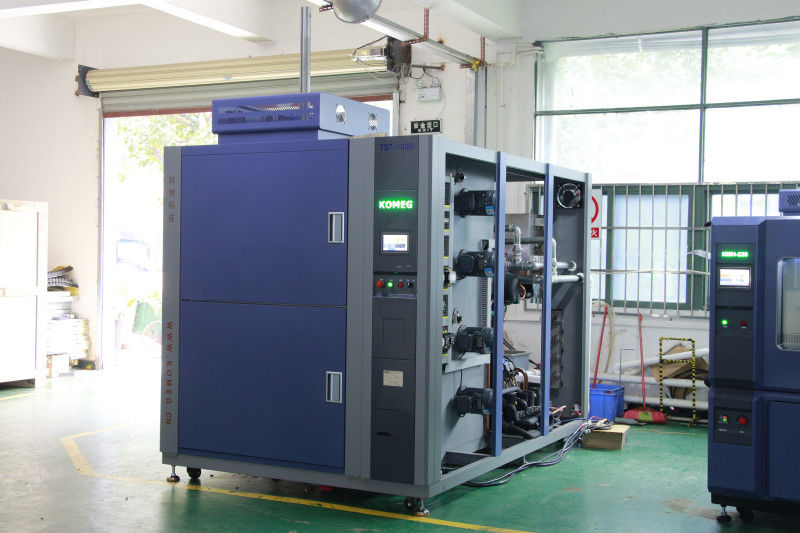

KOMEG 2-zone Thermal Shock environmental test chamber consist of two separately controlled hot and cold zones with product being transferred between these zones for rapid product temperature changes. These thermal shock chambers are available from 70 or 500 liters of interior workspace volume, ideal for testing to find product flaws in small components/assemblies before they reach your customer.
As we know that thermal shock occurs when a thermal gradient causes different parts of an object to expand by different amounts. This differential expansion can be understood in terms of stress or of strain, equivalently. At some point, this stress can exceed the strength of the material, causing a crack to form. If nothing stops this crack from propagating through the material, it will cause the object's structure to fail. Normally we use thermal shock test equipment to test how much amount can a product withstand thermal shock.
Standards Met and Implemented:
GB/T2423.1.2
GB10592-89
GJB150
Specifications:
| ALL THE MODEL OF THIS KIND PRODUCTS IN THE BLANKET: | ||||||
| Specifications | ||||||
| Model | TST B Series | |||||
| 72B | 130B | 226B | 360B | 500B | ||
| Test weight(KG) | 410 | 520 | 610 | 710 | 810 | |
| Interior size | W(mm) | 560 | 670 | 770 | 830 | 710 |
| H(mm) | 410 | 520 | 610 | 770 | 860 | |
| D(mm) | 300 | 410 | 510 | 610 | 710 | |
| Basket size | W(mm) | 300 | 410 | 510 | 730 | 610 |
| H(mm) | 300 | 410 | 510 | 510 | 730 | |
| D(mm) | 5 | 5 | 5 | 5 | 5 | |
| Low Temp. chamber | -70 °C~ -10°C | |||||
| Pre-cooling time | +20°C~ -70 °C ,Within 60 min | |||||
| Test. chamber | -55°C~ +150°C | |||||
| High Temp. chamber | +60 °C~ +200 °C | |||||
| Pre-heating time | +60°C~ +200°C ,Within 25 min | |||||
| Recovery time | High-Temp Exposure 30 min | |||||
| Low-Temp Exposure 30 min | ||||||
| Recovery time within 5 min | ||||||
| Safety device | within 10 seconds | |||||
| Standard accessory | No fuse breaker, over pressure over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection | |||||
| Interior material | Cable port(portΦ50mm)*1, shelves*2 | |||||
| Exterior material | Stainless steel plate ( SUS 304 ) | |||||
| Insulation material | Baked painting steel or stainless steel(SUS304) | |||||

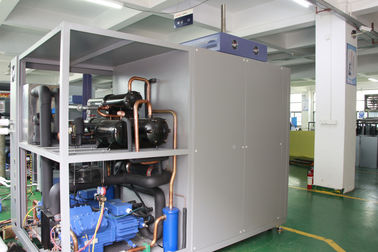

| Refrigeration system | Rigid polyurethane Foam glass fiber wool | |||||
| Water Cooled | ||||||
| Controller | Panel:7-inch LCD Touch panel , Chinese or English display selectable | |||||
| Operation model:Program or fix point running | ||||||
| Memory capacity:120programs,1200steps , all repeat 999cycles , part repeat 99 cycles. | ||||||
| Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit | ||||||
| Input:Temp.:pt-100 Humidity:pt-100 or ~ 5V DCV | ||||||
| Ambient Temp. | +5 °C~ +35 °C (41 ~ 95°F) | |||||
| Power | AC 380±10 % 50Hz ,3 phase 4 wires +Ground Wires | |||||
| Note:1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | ||||||
Main features of Thermal test chamber:
KM-5188 touch screen controller
Ethernet monitoring & control
RS-232, RS-485 serial communications
Door Safety Interlocks
Emergency Stop Button
Traveling Cable Port
Casters & Leveling Legs
Packaging:
2-zone Thermal Shock Test Chamber are covered with air bubble film before put them into the strong plywoodcase, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, crash-proof, etc.
Besides this, we have a lot of other chamber for your reference:
3-zone/ 2-zone Thermal Shock Chamber
Walk-in Constant Temp. And Humidity Chamber
Rapid Temp. Change Chamber
Precise Drying Test Chamber
Temperature/ humidity/ vibration three integrated Chamber
Precise Drying Chamber
Vacuum oven/ no oxidation oven
Air Exchange Type Aging Oven
Burn-in Room
Salt spray Chamber
Two wing Drop Tester
Vibration Testing Machine( mechanical and electromagnetic)
