Product Details:
Payment & Shipping Terms:
|
| Product Name: | Programmable Walk-in Test Chambers | Application: | Reliability Testing, Research & Development Testing, Failure Analysis |
|---|---|---|---|
| Material: | SUS 304 Stainless Steel | Temperature Range: | -65℃~+85℃ |
| Humidity Range: | 25%~98%RH | Warranty: | 2 Years |
| High Light: | walk in environmental chamber,walk in humidity chamber |
||

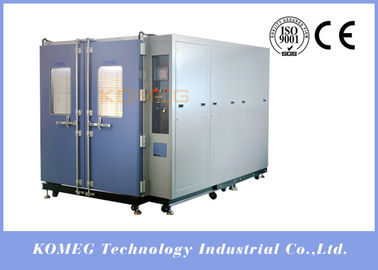

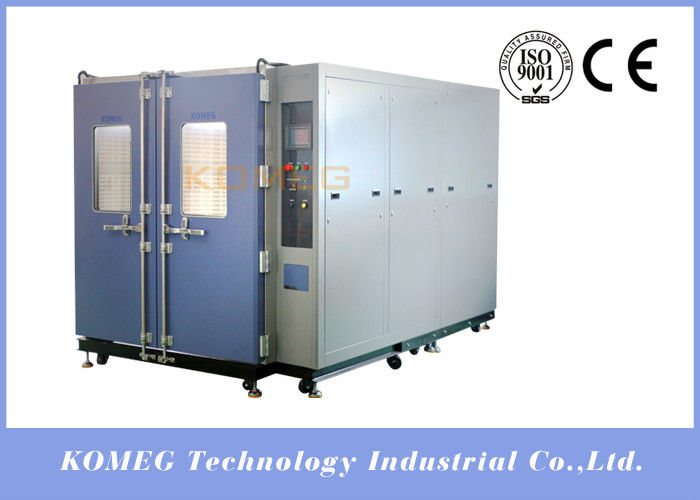

Machinery Equipment Walk In Climatic Temperature And Humidity Test Chamber
KOMEG's Walk-In Environmental Test Chambers provide simulation environment to achieve reliability test of computers and copiers or automobiles and satellites. Capable of testing large components, assemblies, and finished products, KOMEG's Walk-In chambers simulate a wide range of temperature and humidity environments. These chambers can be used for testing and controlled storage as well as a versatile laboratory environment for conducting test procedures in the telecommunications, defense, aerospace, pharmaceutical, automotive, and electronics industries.
a. Operate continuously in cooling mode.
b. Provide a hot gas by-pass system to automate capacity reduction when the room is at the set point temperature.
c. High quality components including: liquid line solenoids, liquid sight glass, dryers, strainers, and TX valves.
d. Contain Bock semi-hermetic (or equal ) compressors.
e. Contain LED Touchscreen (or equal) controls.
f. Assembled and tested by professional factory.
g. Easy to maintain and operation course components are easily accessible and clearly labeled
h. Comprehensive piping diagrams, schematics, and charging data are available for our environmental walk-in rooms.
| SPECIFICATIONS | |||||||
| Model | KMHW- | ||||||
| 4 | 6 | 8 | 13 | 17 | 21 | ||
| Volume(m³) | 9 | 12.9 | 16.8 | 16.8 | 35.2 | 43.3 | |
| Interior Dimensions | W(mm) | 2100 | 3000 | 3900 | 3000 | 3900 | 4800 |
| H(mm) | 2100 | 2100 | 2100 | 2100 | 2100 | 2100 | |
| D(mm) | 2050 | 2050 | 2050 | 4300 | 4300 | 4300 | |
| Exterior Dimensions | W(mm) | 3250 | 4160 | 5050 | 5050 | 5050 | 5950 |
| H(mm) | 2350 | 2350 | 2350 | 2350 | 2350 | 2350 | |
| D(mm) | 2250 | 2250 | 2250 | 2250 | 4500 | 4500 | |
| Control System | Balanced Temperature & Humidity Control System | ||||||
| Temp. range | Maximum:80ºC,120ºC;Minimum:-60ºC,-50ºC,-40ºC,-30ºC,-20ºC,-10ºC,0ºC | ||||||
| Humidity Range | 10%,20%,30%~95% | ||||||
| Temp. constancy | ±0.5ºC | ||||||
| Humidity constancy | ±2.5%R.H | ||||||
| Temp. uniformity | ±2.0ºC | ||||||
| Humidity uniformity | ±5.0%R.H | ||||||
| Heat up time | +20ºC~+80ºC ,Within 60 min | ||||||
| Pull down time | +20ºC~-55ºC -40ºC-20ºC-10ºC ,Within 120 or 90 or 60 min | ||||||
| Interior material | Stainless Steel Plate(SUS 304) | ||||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||||
| Insulation material | Rigid polyurethane foam | ||||||
| Door size (mm) | Single wing:W800*H1800;Double wing:W1600*H1800; | ||||||
| Safety Devices(standard) | No fuse breaker, over pressureover heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection |
||||||
| Standard accessories | Sight window*1,cable port(portΦ50mm)*1,chamber lamp*1, status indicator | ||||||
| Refrigeration system | Water Cooled | ||||||
| Semi-hermetic compressor, single stage or cascade refrigeration system | |||||||
| CFC free refrigerant(HFC-507 and HFC-23) | |||||||
| Controller | Panel | 7-inch LCD Touch panel,Chinese or English display selectable | |||||
| Operation model | Program or fix point running | ||||||
| Memory capacity | 120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles | ||||||
| Accuracy | Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit | ||||||
| Input | Temp.:pt-100, Humidity:pt-100 or ~5V DCV | ||||||
| Comm.port | RS-232 or RS-485 (Softawre is option) | ||||||
| Ambient Temp. | +5ºC~+35ºC | ||||||
| Wiring method | AC 380±10%50Hz ,3 phase 4 wires +Ground Wires | ||||||
| Note:1. We reserve the right to change specifications without prior notice | |||||||
| 2.Customized sizes and configurations available | |||||||
3. Walk-in Room Construction:
Material:
ROOM: Stainless Steel metal tongue and groove sectional panels.
Assembled room: has continuous steel perimeters to hold panels tightly in place.
Panel features:
1) 100% insulation
2) It's easy to operate with light weight – average weight of the largest panel is 84 lbs.
3) Alignment pins for accurate fit.
4) Steel straps connect locking arms with locking pins on opposite sides of panels.
5) To ensure tight fits and accommodate frequent assembly / disassembly for relocating or enlarging the room we use cam-actuated locks.
Better Idea, Design and Quality
KOMEG strive for continuous innovation, releasing no less than five new designs each year. Our strong R&D team and skilled workers support our success.
We have rich experience in handling both standard or custom-made project, so that customers worldwide can benefit more when working with us. And to ensure your specific test standards are met, the key components and parts we are using are imported famous brands.
That's why , Konica Minolta, Senko, Midea, TCL and Huawei are among our long-term clients.
Establish a cultural KOMEG, Build a century brand.
Quality conscious enterprise for quality conscious people.
We'd rather explain for the price than apologize for the Quality life long
Experienced and skilled staff;
High precision & reliability performance;
Prompt after-sale service;
Persist on the philosophy all the time
