Product Details:
Payment & Shipping Terms:
|
Application: | Reliability Testing, Research & Development Testing, Failure Analysis | Door Size: | Single Wing:W80*H180;Double Wing:W160*H180 |
---|---|---|---|
Temp. Constancy: | +/-0.5oc | Humidity Constancy: | +/-2.5%R.H |
H.S. Code: | 90321000 | Delivery: | 42 Working Days |
High Light: | walk in humidity chamber,walk in climatic chamber |

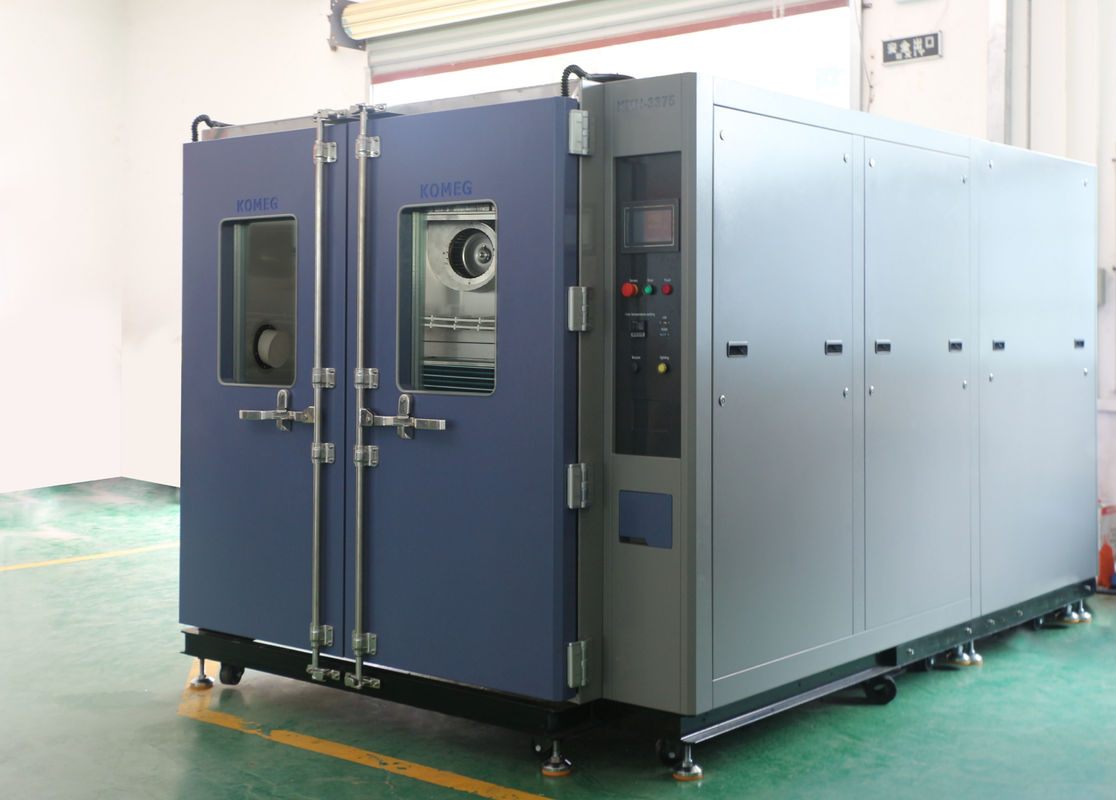

Industry Stainless Steel Cubic Climatic Chambers For The Solar And Photovoltaic
1. Applications
You are in the test computer and copier, cars and satellites can use our products, Walk-In environment test room can provide a solution. The ability to test large components, components and finished products, Walk-In room can simulate a variety of temperature and humidity environment. These rooms can be used to test and control storage, as well as multifunctional laboratory environments for testing procedures in the telecommunications, defense, aerospace, pharmaceutical, automotive and electronics industries.
2. Standard Implemented and Met:
Inspect standard: JJF-1101, GB/T 10592,GB/T 10586
Testing standards:
YD/T 2061, HB 7122.3, 6783.7, GJB 5382.7, GJB 150, GB/T 2423,5170.2,5170.5,5179.2, ASTM E512, NF EN 60068-2-38, CNS 12565,12566, KS C0227, KS C022
3. Main Technical Parameters
Model | KMHW | |||||||
Volume(m³) | 27.1CBM | |||||||
Interior Dimensions | W3000 x H2100 x D4300mm | |||||||
Exterior Dimensions | W5050 x H2350 x D2250mm | |||||||
Safety Devices(standard) | No fuse breaker, over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection | |||||||
Standard accessories | Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicator | |||||||
Control System | Balanced Temperature & Humidity Control System | |||||||
Refrigeration system | Water Cooled | |||||||
Semi-hermetic compressor, single stage or cascade refrigeration system, | ||||||||
CFC free refrigerant ( HFC-507 and HFC-23 ) | ||||||||
Controller | Panel | 7-inch LCD Touch panel, Chinese or English display selectable | ||||||
Operation model | Program or fix point running | |||||||
Memory capacity | 120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles | |||||||
Accuracy | Temp.:0.1% of F.S ± 1 digit Humidity:0.1% of F.S ± 1 digit | |||||||
Input | Temp.: pt-100, Humidity: pt-100 or ~5V DCV | |||||||
Comm.port | RS-232 or RS-485 ( Softawre is option) | |||||||
Temp. range |
Maximum: 80 ºC,120 ºC; 20 ºC, -10 ºC, 0 ºC |
|||||||
Humidity Range | 10%, 20%, 30% ~ 95% | |||||||
Temp. constancy | ±0.5 ºC | |||||||
Humidity constancy | ±2.5%R.H | |||||||
Temp. uniformity | ±2.0 ºC | |||||||
Humidity uniformity | ±5.0%R.H | |||||||
Ambient Temp. | +5 ºC~+35 ºC | |||||||
Wiring method | AC 380 ± 10% 50Hz ,3 phase 4 wires + Ground Wires | |||||||
Heat up time | +20 ºC~+80 ºC, Within 60 min | |||||||
Pull down time | +20 ºC ~ -55 º, -40 ºC, -20 ºC, -10 ºC, Within 120 or 90 or 60 min | |||||||
Interior material | Stainless Steel Plate(SUS 304) | |||||||
Exterior material | Baked Painting Steel Or Stainless steel ( SUS304) | |||||||
Insulation material | Rigid polyurethane foam | |||||||
Door size (mm) | Single wing: W800 x H1800; Double wing: W1600 x H1800; | |||||||
Note:1. We reserve the right to change specifications without prior notice 2.Customized sizes and configurations available |
4. Description
Flexibility for structure
The panels used in our chamber are 4” (100mm or 150mm) Thick urethane-foam sandwiched between a stainless-steel interior wall and a coated-steel exterior. An assembled box is self-supporting. So that no heavy structural members are required. Different door sizes, flooring upgrades,access ports, and other modifications are possible.
Widest test range, most customizable
