Application: | Reliability Testing, Research & Development Testing, Failure Analysis | Temp. Constancy: | +/-0.5oc |
---|---|---|---|
Humidity Constancy: | +/-2.5%R.H | Delivery: | 45 Working Days |
Installation: | Yes Based On Your Arrangement Of Room And Board | Material: | Stainless Steel Plate |
High Light: | walk in humidity chamber,walk in climatic chamber |

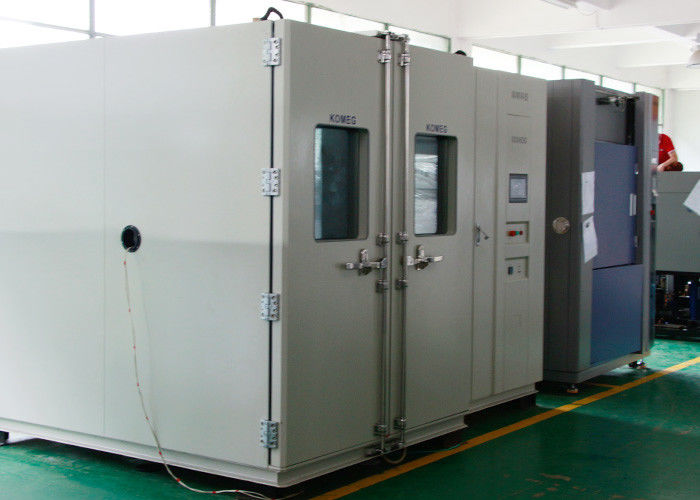

Environmental Temperature And Humidity Walk-in Chamber For Auto Parts Testing
1. Environmental Walk-In Test Chambers:
Structure | Our house is of high quality carbon steel with internal electrostatic spraying and galvanized steel. Sheet metal processing machine is from Germany . Trumph is known for its precise bending technology, so our product looks good quality, accurate and tidy. |
Hydroelectric system separation design | In order to improve the comparable fragile parts, the heating part of the constant high moisture test, we use the separation of water and electricity system design, to keep the hydropower system and external humidification system separation, and the use of top brands (such as: Danfoss, Schneider, Danfoss, Emerson, Saginomiya, etc.) To ensure the quality and service time of all electronic components. |
Cooling System | We use pipe bending machine for copper pipe bending, which can reduce the solder joints. It is easy to keep the brass clean to ensure a longer service life for the compressor. The welding point can also reduce the resistance of the liquid to the inside, keeping the compressor more efficient and more energy efficient. |
Safety | No fuse breaker, over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection | |||||||
Standard accessories | Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicator | |||||||
Control System | Balanced Temperature & Humidity Control System | |||||||
Refrigeration system | Water Cooled | |||||||
Semi-hermetic compressor, single stage or cascade refrigeration system, | ||||||||
CFC free refrigerant ( HFC-507 and HFC-23 ) | ||||||||
Controller | Panel | 7-inch LCD Touch panel, Chinese or English display selectable | ||||||
Operation model | Program or fix point running | |||||||
Memory capacity | 120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles | |||||||
Accuracy | Temp.:0.1% of F.S ± 1 digit Humidity:0.1% of F.S ± 1 digit | |||||||
Input | Temp.: pt-100, Humidity: pt-100 or ~5V DCV | |||||||
Comm.port | RS-232 or RS-485 ( Softawre is option) | |||||||
Temp. range | Maximum: 80 ºC,120 ºC; Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC |
|||||||
Humidity Range | 10%, 20%, 30% ~ 95% | |||||||
Temp. constancy | ±0.5 ºC | |||||||
Humidity constancy | ±2.5%R.H | |||||||
Temp. uniformity | ±2.0 ºC | |||||||
Humidity uniformity | ±5.0%R.H | |||||||
Ambient Temp. | +5 ºC~+35 ºC | |||||||
Wiring method | AC 380 ± 10% 50Hz ,3 phase 4 wires + Ground Wires | |||||||
Heat up time | +20 ºC~+80 ºC, Within 60 min | |||||||
Pull down time | +20 ºC ~ -55 º, -40 ºC, -20 ºC, -10 ºC, Within 120 or 90 or 60 min | |||||||
Interior material | Stainless Steel Plate(SUS 304) | |||||||
Exterior material | Baked Painting Steel Or Stainless steel ( SUS304) | |||||||
Insulation material | Rigid polyurethane foam | |||||||
Door size (mm) | Single wing: W800 x H1800; Double wing: W1600 x H1800; | |||||||
Note:1. We reserve the right to change specifications without prior notice 2.Customized sizes and configurations available |
4. Control method and characteristics
Precision microcomputer control temperature and humidity system, with PID control refrigerant flow, the system of heating / humidification reduced, to achieve low power consumption, energy saving, carbon reduction effect, cooling, heating, humidity control intelligent electronic control, long-term stable use. The following are the same as the "
Structural flexibility, the panels used in our room are 4 "(100mm or 150mm) thick polyurethane foam sandwiched between stainless steel interior and steel appearance. Assembled boxes are self-supporting, so no heavy structural parts are required. Different door sizes, floor upgrades, access ports and other modifications are possible.
The most extensive range of tests, the most customizable
