| Model NO: | TST-500A | Controller: | English Menu |
|---|---|---|---|
| Temperature Range: | -40 Degree To 150 Degree | Standard: | Military Standard |
| Item: | Thermal Shock Test Chamber | Material: | Stainless Steel |
| High Light: | thermal shock chamber,environmental testing chambers |
||

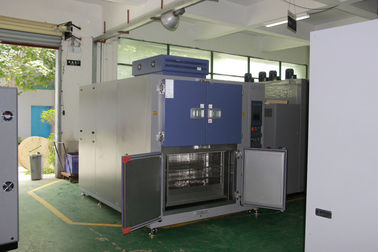

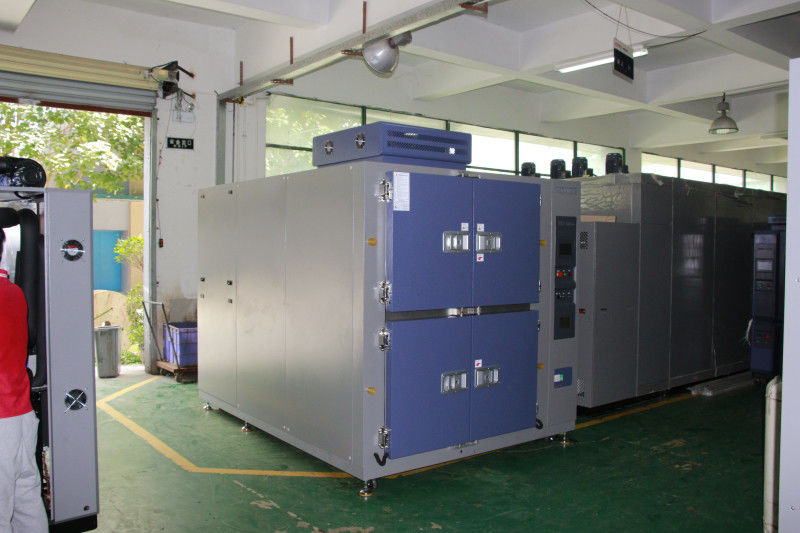

Water Cooled CE Certification Two Zone Climats Thermal Shock Chamber for Car Parts Testing
Using low temperature and high temperature hot and cold storage tank, in accordance with the need open the DAMPER, achieve rapid impact effect; Balance (BTC) temperature control system, to control SSPR by P.I.D. , make the system of heat up equal to the amount of heat loss, thus the use of long-term stability
About Thermal Shock Test Chamber
Thermal shock test is a method of environmental testing that subjects a product to alternating extremes of high and low temperatures. Thermal shock testing allows for the observation of changes in product characteristics and failure occurrence caused by different materials and their thermal expansion coefficients. A thermal gradient difference in the different parts of the object expands by different amounts and can cause cracking and failure. KOMEG brand thermal shock and thermal stress chambers have been designed to operate in accordance with reliability programs, quality control, and commercial test programs and military test.
KOMEG offers several configurations of thermal shock chambers capable of meeting a wide variety of testing needs.

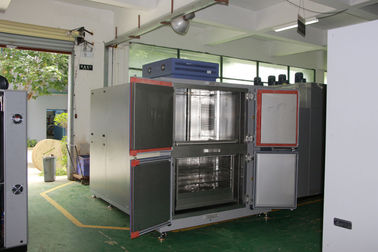

Vertical, two zone chamber has hot and cold zones that can be controlled independently.
Horizontal, three zone thermal shock chamber utilizes controlled areas for hot, ambient and cold temperatures.
Double duty thermal shock chambers from KOMEG are designed with hot zones above and below the cold zone and a two compartment product carrier that simultaneously moves products between the hot and cold zones.
| Ⅱ. Features:Water cooled. Ambient Temp. +25℃ no-load | |
|
+60℃ ～ +150℃ |
| 2. Low Temperature Shock Range | -40℃ ～ -10℃ |
|
+60 ～ +200℃ |
| 4. Low Temperature Chamber Temp. Range | -65℃ ～ -10℃ |
| 5. Temperature fluctuation | ±0.5℃ |
| 6. Temperature uniformity | ±2.0℃ |
| 7. Recovery time |
-40℃～150℃ within 5mins (load 15KG) (the sensor put in the outlet of the unit) |
| 8. Exposure time | more than 30 minutes |
| 9. Transfer time | Less than 10 seconds |
| Ⅲ. Structure | |
| 1.Internal dimension | W 1000 × H 500 × D 1000 mm |
| 2. EX. Dimension | W 2070 × H 2161 × D 3235 mm (about) |
| 3. Inner wall material: | Stainless Steel Plate SUS304 |
| 4. Wall material: | Top-grade Carbon Steel Plate |
| 5. Insulation material | Rigid polyurethane Foam + glass fiber |
| 6. Heater | Nickel - Chromium Alloy Wire heater |
| 7. Supply air circulation system |
a. Teco motors b. Stainless steel long axis c. (SIROCCO FAN) |
| 8. Door |
Single door a. Planar embedded handle b. Button: SUS #304 c. Silicone foam strip |
| 9. Cable port | On the top of chamber ψ50mm one pcs |
| 10. Sample holder | Stainless Steel Plate SUS304 two layer |
Benifits more than you can get from other supplier
1. Dedicatetouch and excellent user experience
2. Unique and compact design, top grade appearance, stable performance and easy operation
3. Can simulate a wide rang of temperature and humidity environments
4. Capable of testing large components, assemblies, and finished products
5. Customized sizes and configurations available
6. One year warranties
| Ⅳ. Refrigeration System | |
| 1. Compressor | Germany BOCK Semi-closed Compressor |
| 2. Refrigerant | Environment friendly refrigerant R404A R23. Environmental friendly |
| 3. Condenser | Water cooled condenser |
| 4. Evaporator | Finned heat exchange. Long time use in low temperature and no frost |
| 5. Other accessories | desiccant, oil separator, Refrigerant flow valve, Repair valve |
| 6.Refrigerant flow control | Adjust energy consumption output and control automatically to the refrigeration system. |
| 7.Refrigeration Technology |
※ Nitrogen welding, two-stage rotary vane vacuum pump, ensure that the internal cooling system clean and reliable. ※water tray located at the bottom of the compressor to ensure condensate water drain through pipe freely at the rear of the chamber. |
Packaging
Each set protected with resin fiber and PP film, then put into strong wooden case with operation mannual and video inside.
After-sale service
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
Establish a cultural KOMEG, Build a century brand.
Quality conscious enterprise for quality conscious people.
We'd rather explain for the price than apologize for the Quality life long.
1. 26 years experience in manufacturing environment test chamber
2. France imported Tecumseh compressor
3. Experienced and skilled team
4. Reasonable price & Prompt delivery
KOMEG specification for thermal shock test chamber TST-500A.doc
